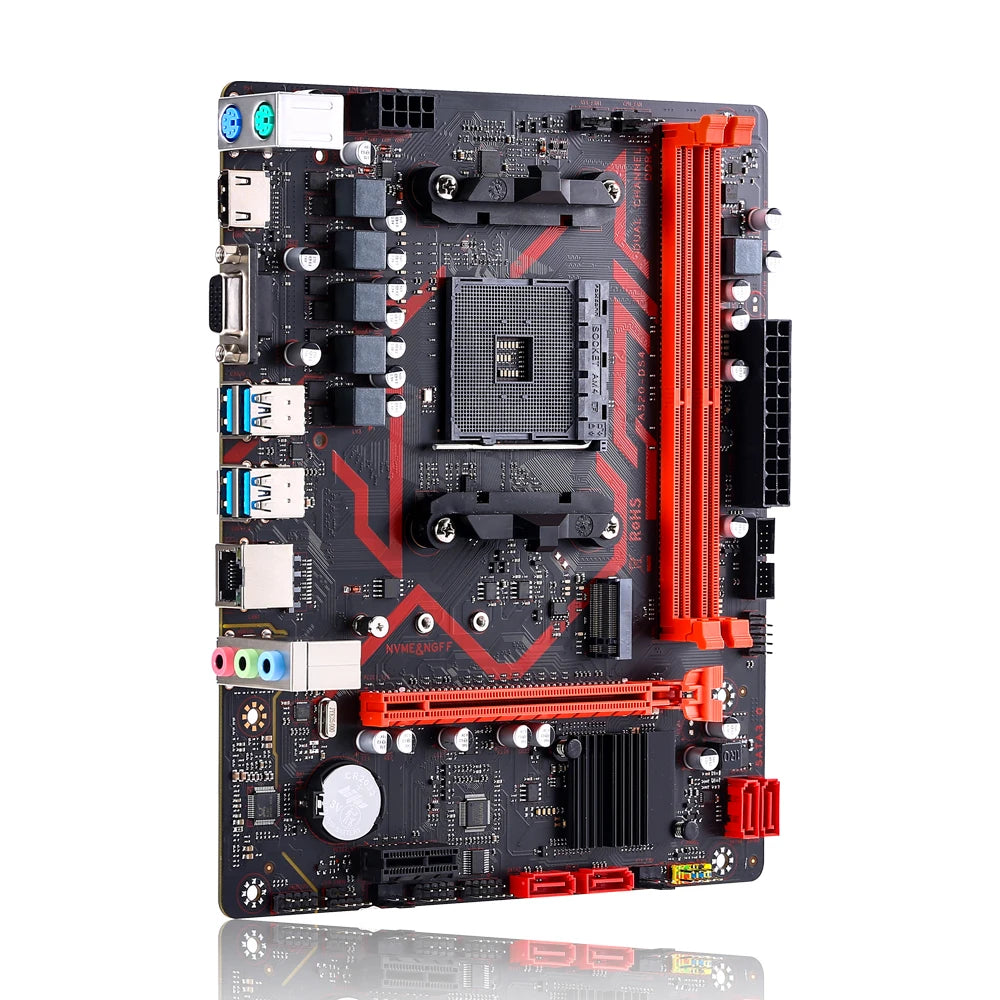

Kllisre A520 Micro ATX AM4 Motherboard – Dual DDR4, NVMe M.2 & SATA3
Build a powerful and versatile desktop PC with the Kllisre A520 Micro ATX Motherboard. Designed for AMD AM4 socket processors, this board supports the full AMD Ryzen 3/4/5/6/7 series and delivers a rock-solid foundation for gaming, home, and office builds alike. With dual DDR4 memory slots supporting up to 64GB of RAM, an NVMe M.2 slot, four SATA 3.0 ports, and USB 3.0 connectivity, you get a feature-rich platform without breaking the bank.
Made in Mainland China.

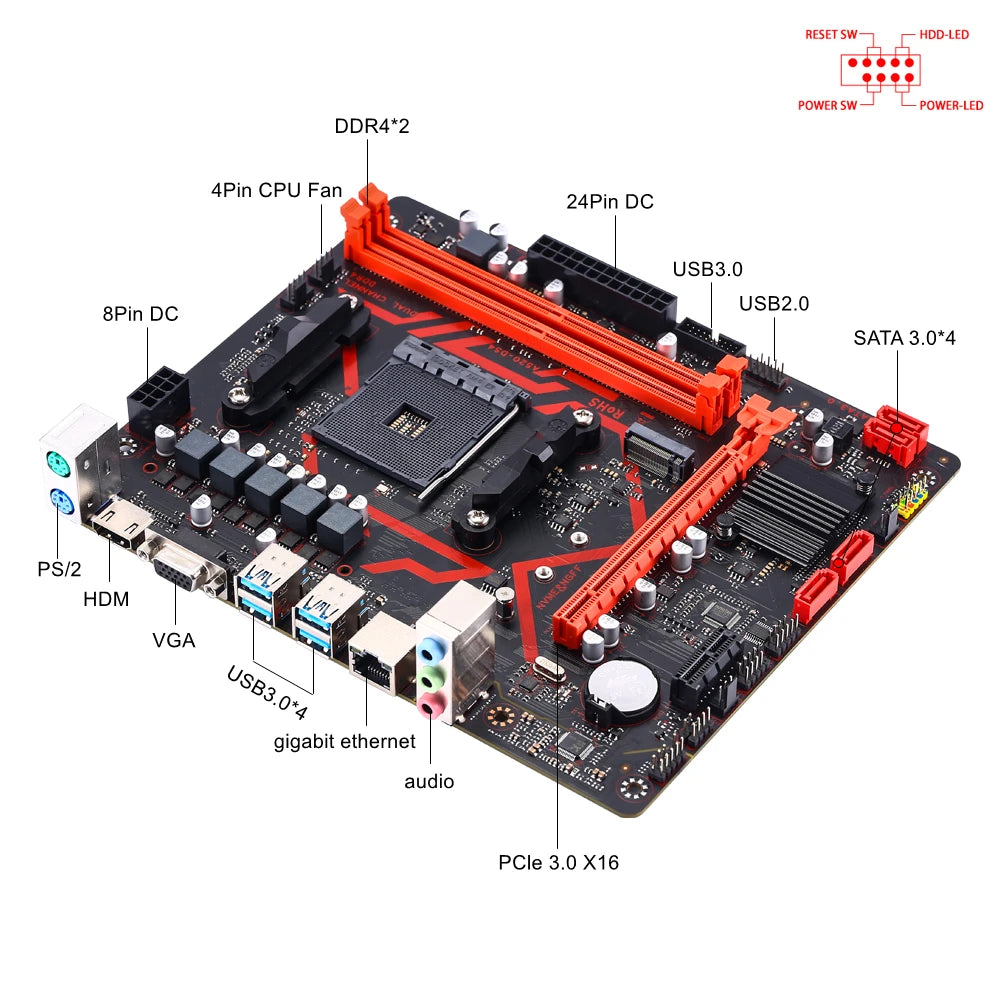

Key Features
- Chipset: AMD A520 – reliable and efficient platform for AMD Ryzen CPUs
- Socket: AM4 – compatible with AMD Ryzen 3/4/5/6/7 Series processors
- Memory: 2x DDR4 slots, dual-channel, supports up to 64GB (2×32GB) at 2400/2666/3200MHz

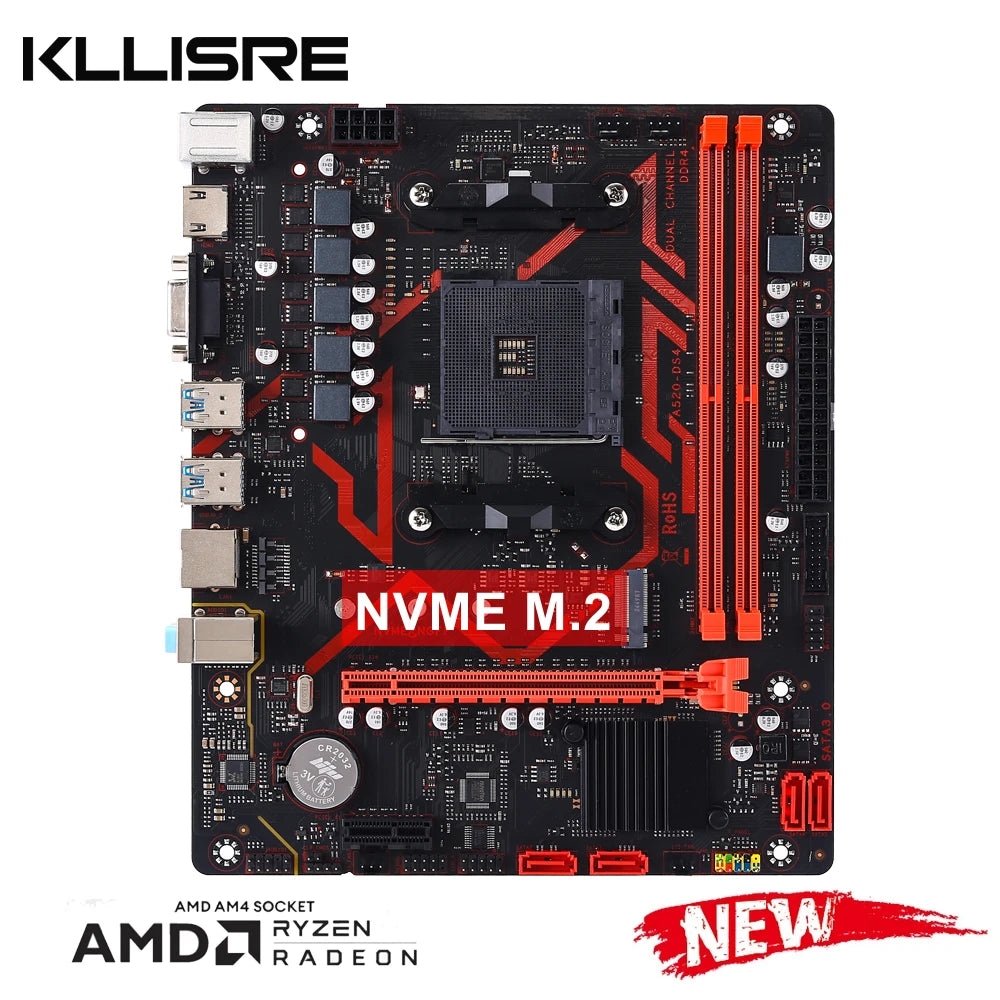

- NVMe M.2 Slot: 1× M.2 (2280) for blazing-fast NVMe SSDs
- SATA Storage: 4× SATA 3.0 ports for HDDs and SSDs
- Expansion Slots: 1× PCIe x16 (dedicated GPU slot) + 1× PCIe x1
- USB Connectivity: USB 3.0 × 4 (back panel)
- Networking: Gigabit Ethernet (1000Mbps) via 1× RJ45
- Audio: Onboard 5.1-channel audio

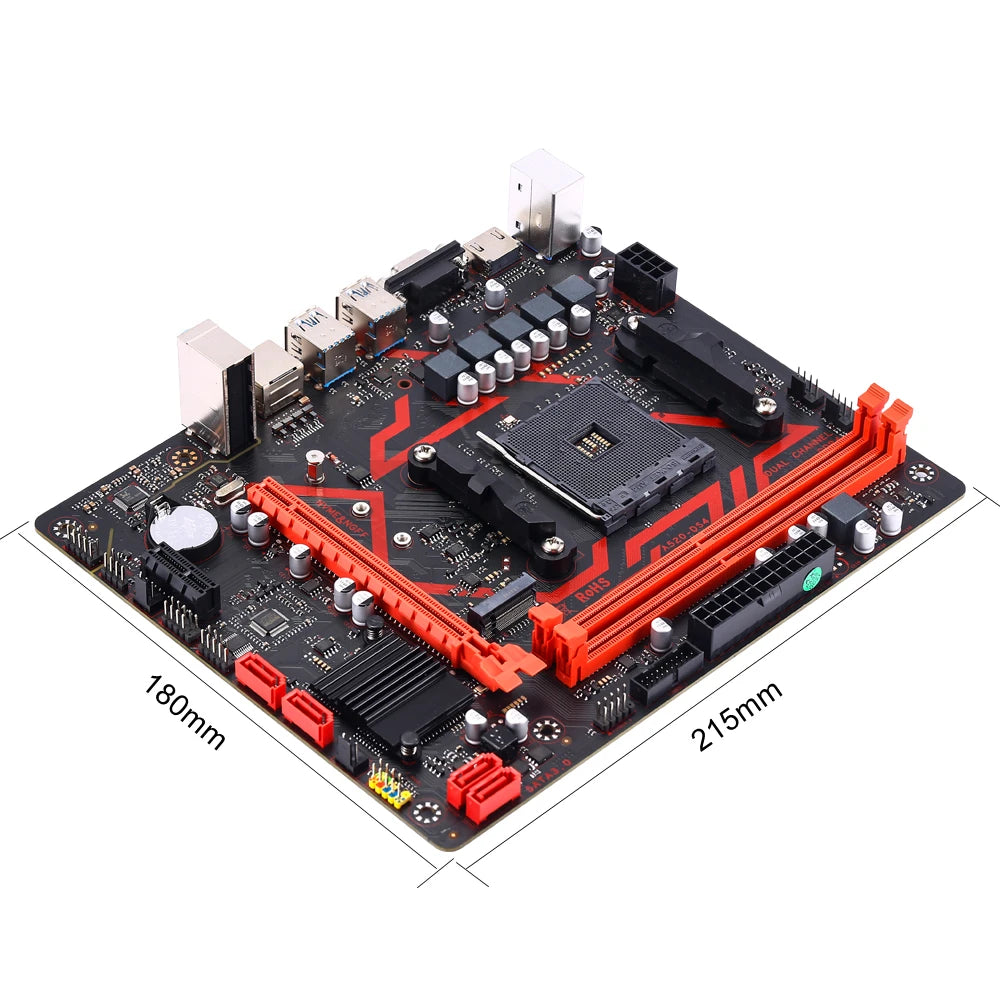

- Form Factor: Micro-ATX (216 × 180 mm) – compact and compatible with most mid-tower and mATX cases
- PCB: 6-layer construction for improved signal integrity and durability

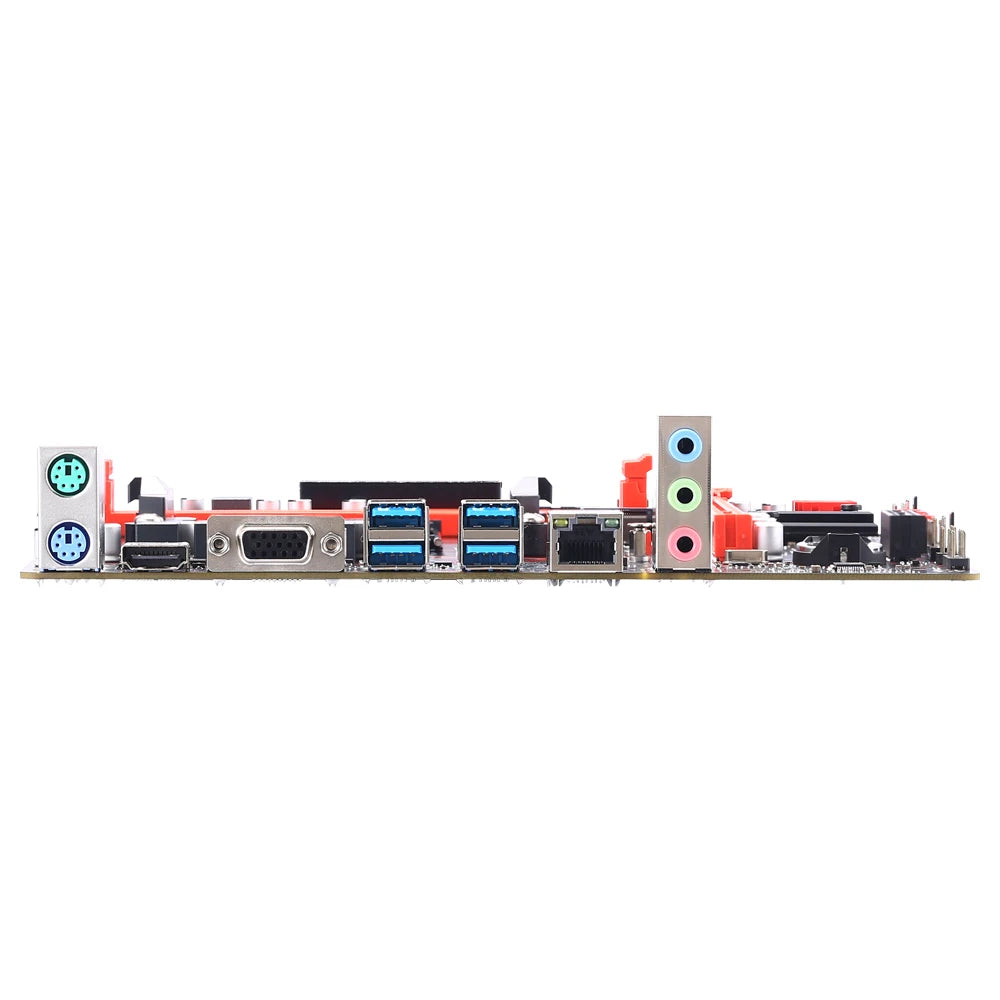

- Back I/O: PS/2 Combo port included for legacy peripherals
- CE Certified
Ideal For
- Budget-friendly gaming PC builds
- Home and office desktop systems
- Upgrading or replacing an existing AM4 platform
Important Notes
- CPU, RAM, and storage are not included — motherboard only.
- No integrated video — a discrete GPU or a Ryzen APU with integrated graphics is required for display output.
- CMOS battery is removed before shipping due to shipping regulations; a standard CR2032 battery is required (available at any electronics or general retailer).
- Please allow ±1–3 mm dimensional variance due to manual measurement.
- Actual color may vary slightly from product images due to monitor settings and lighting conditions.
Full Specifications
| Brand | Kllisre |
| Chipset | AMD A520 |
| Socket | AM4 |
| Form Factor | Micro-ATX (216 × 180 mm) |
| Memory Slots | 2× DDR4 (Dual Channel) |
| Max RAM | 64 GB (2×32 GB) |
| Memory Speed | 2400 / 2666 / 3200 MHz |
| M.2 Slot | 1× NVMe M.2 (2280) |
| SATA Ports | 4× SATA 3.0 |
| PCIe Slots | 1× PCIe x16, 1× PCIe x1 (PCI-E 3.0) |
| USB | USB 3.0 × 4 |
| LAN | 1× RJ45 Gigabit Ethernet (1000 Mbps) |
| Audio | 5.1 Channel |
| PCB Layers | 6 |
| Certification | CE |
| Origin | Mainland China |
You May Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
- Ceramic Mini Sealed Storage Jar – Portable Travel Container
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Which AMD Ryzen CPUs are compatible with the Kllisre A520 AM4 motherboard?
A: The Kllisre A520 motherboard uses the AM4 socket and supports AMD Ryzen 3, 4, 5, 6, and 7 series processors, including Ryzen 3000 and 5000 series CPUs. Always verify your specific CPU model against the board's compatibility list before purchasing.
Q: Does this motherboard support NVMe SSDs?
A: Yes. The Kllisre A520 Micro ATX board features one M.2 slot (2280 form factor) that supports NVMe PCIe SSDs for fast boot times and data transfer speeds. It also includes four SATA 3.0 ports for additional HDD or SSD storage.
Q: How much RAM can this A520 motherboard support, and what speeds are compatible?
A: The board has two DDR4 memory slots in a dual-channel configuration, supporting a maximum of 64 GB (2×32 GB). Compatible DDR4 speeds include 2400 MHz, 2666 MHz, and 3200 MHz desktop memory modules.
Q: Why is the CMOS battery not included in the shipment?
A: The CMOS battery (CR2032) must be removed prior to shipping due to carrier restrictions on lithium batteries. You will need to install a standard CR2032 coin-cell battery (widely available at electronics and general retailers) before first use.
Q: Does the A520 motherboard have integrated graphics?
A: The board itself does not have an integrated GPU. To use a display, you will need either a discrete graphics card installed in the PCIe x16 slot, or an AMD Ryzen APU processor that includes integrated Radeon graphics.
