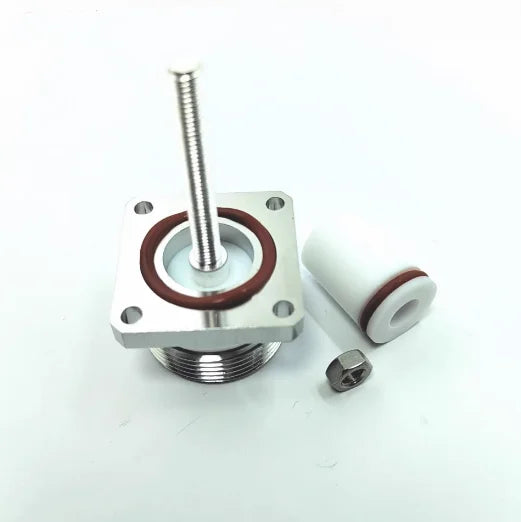

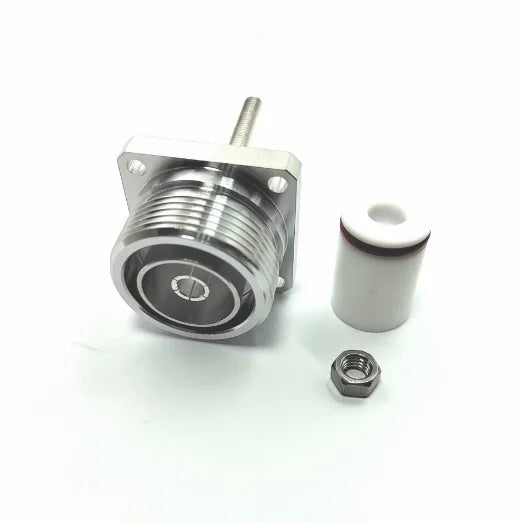

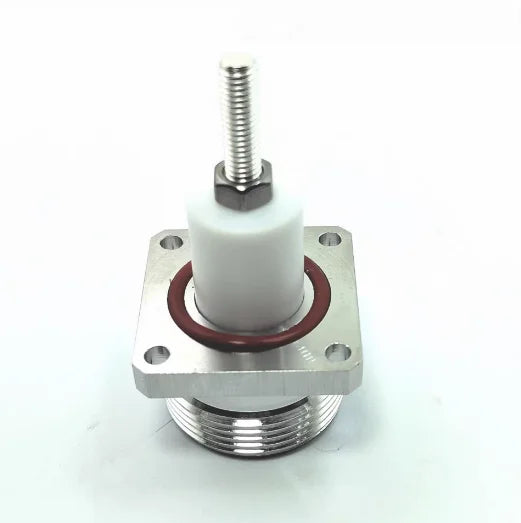

L29 Coaxial RF Connector – 7/16 DIN Female, 4-Hole Flange

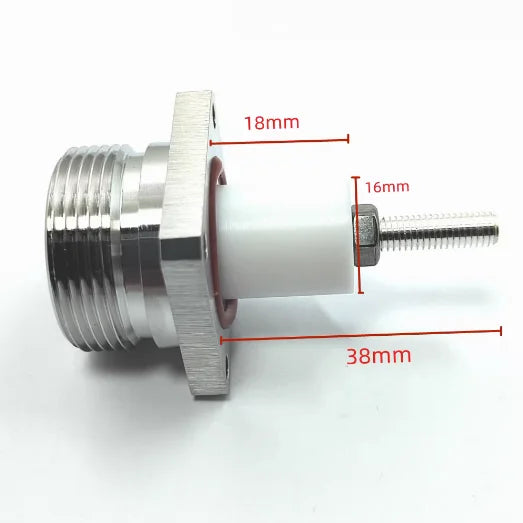

The L29 7/16 DIN Female RF Connector is a precision-engineered coaxial connector designed for reliable, high-frequency signal transmission in demanding RF and telecommunications installations. With its robust 4-hole flange mount, 38mm flange spacing, M5 threaded holes, and 18mm insulator, this connector delivers a secure, low-loss connection for base station antennas, broadcasting equipment, and high-power RF systems.
Key Features
- Connector Type: L29 / 7/16 DIN Female
- Mounting Style: 4-Hole Panel Flange
- Flange Hole Spacing: 38mm
- Mounting Thread: M5
- Insulator Diameter: 18mm
- Application: Coaxial RF Cable Adapter for high-power RF, telecom, and antenna systems
- Assembly Required: No – ready to install
- No high-concern chemicals – clean, safe construction
Why Choose This RF Connector?
The 7/16 DIN (L29) connector standard is widely recognized in the telecommunications and broadcast industries for its excellent intermodulation performance and high-power handling capability. The 4-hole flange design ensures a mechanically stable panel mount, minimizing vibration and signal interference in the field. Whether you're building out a cellular antenna array, setting up a DAS (Distributed Antenna System), or working on broadcast infrastructure, this connector provides the dependable performance you need.
Specifications at a Glance
| Series | L29 / 7/16 DIN |
| Gender | Female |
| Mount Type | 4-Hole Flange |
| Flange Spacing | 38 mm |
| Thread Size | M5 |
| Insulator Size | 18 mm |
| Origin | Made in Mainland China |
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts – great for organizing small hardware and connectors
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer – ideal for keeping connectors and components tidy on your workbench
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm – a handy addition to any technical toolkit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is a 7/16 DIN (L29) RF connector used for?
A: The 7/16 DIN (L29) connector is a high-performance coaxial connector widely used in cellular base stations, DAS (Distributed Antenna Systems), broadcast transmitters, and other high-power RF applications. It is valued for its excellent intermodulation distortion performance, high-power handling, and weather-resistant design.
Q: What does the 4-hole flange configuration mean?
A: The 4-hole flange means the connector has a flat mounting plate with four M5-threaded mounting holes, spaced 38mm apart. This allows you to securely bolt the connector directly onto a panel, chassis, or enclosure wall, providing a stable and vibration-resistant installation.
Q: Is this connector compatible with standard 7/16 DIN male connectors and cables?
A: Yes. This L29 female connector follows the standard 7/16 DIN specification and is compatible with all standard 7/16 DIN male connectors and associated coaxial cable assemblies used in telecom and RF infrastructure.
Q: Does this connector require any assembly before use?
A: No assembly is required. The connector arrives ready to install — simply mount it to your panel using M5 hardware through the four flange holes and connect your cable.
