Magnetic Stirrer with Heating & Stepless Speed Control 1000mL
Magnetic Stirrer with Heating & Stepless Speed Control 1000mL
Laboratory Magnetic Stirrer with Heating & Stepless Speed Control

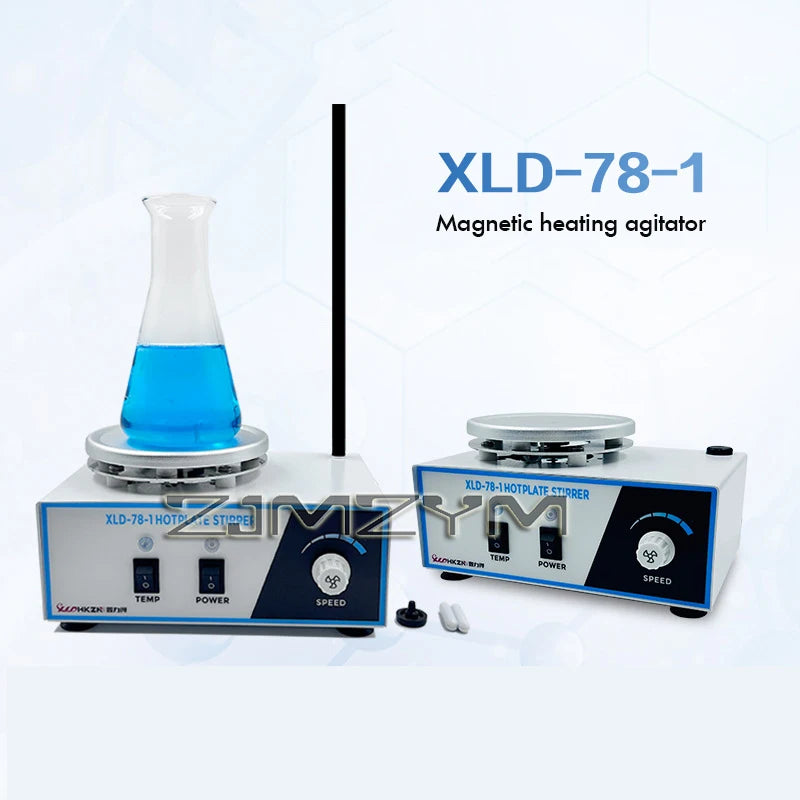

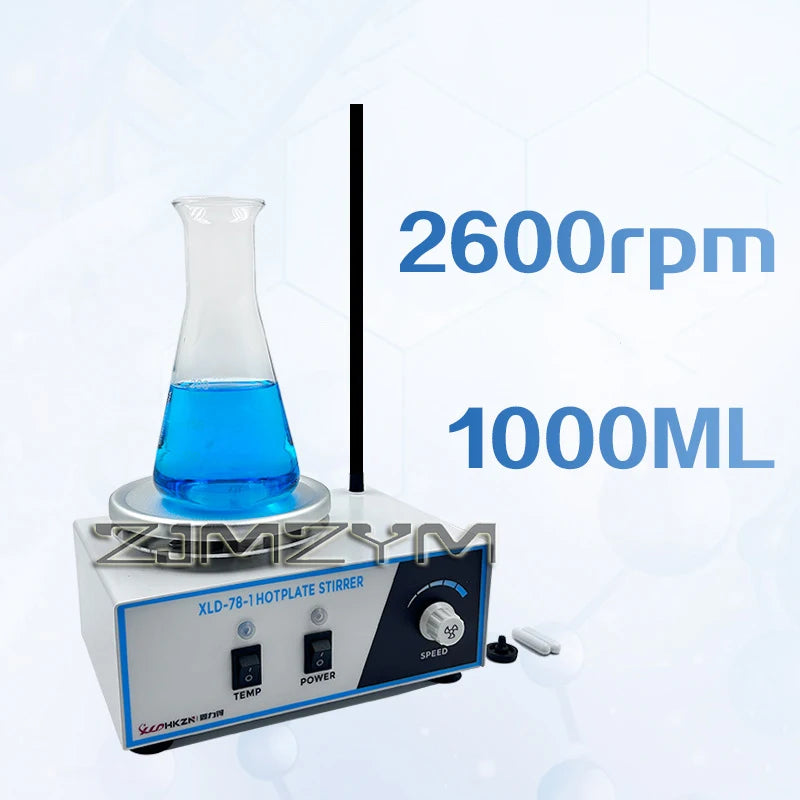

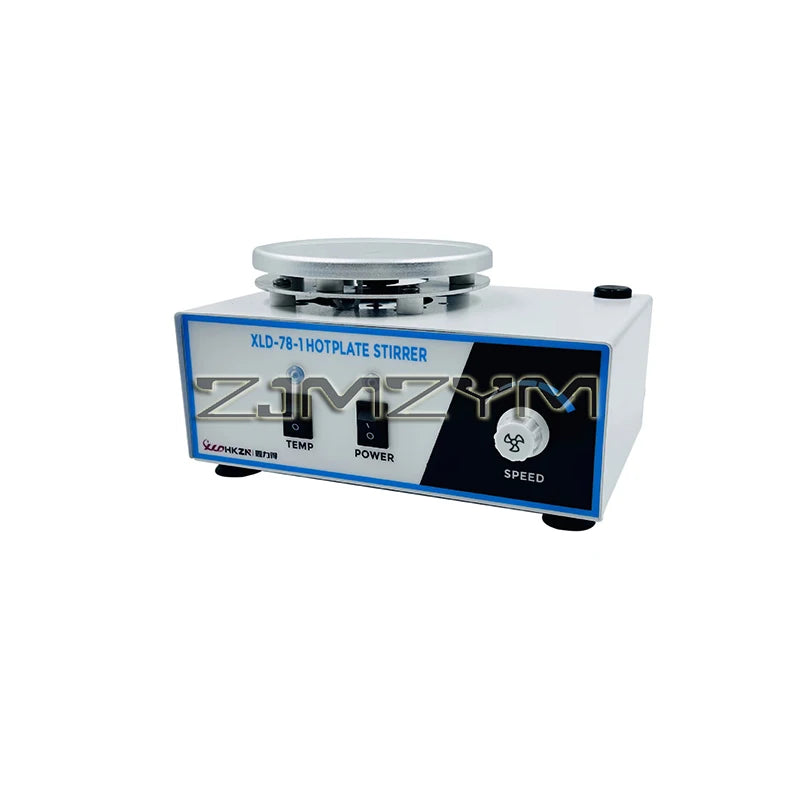

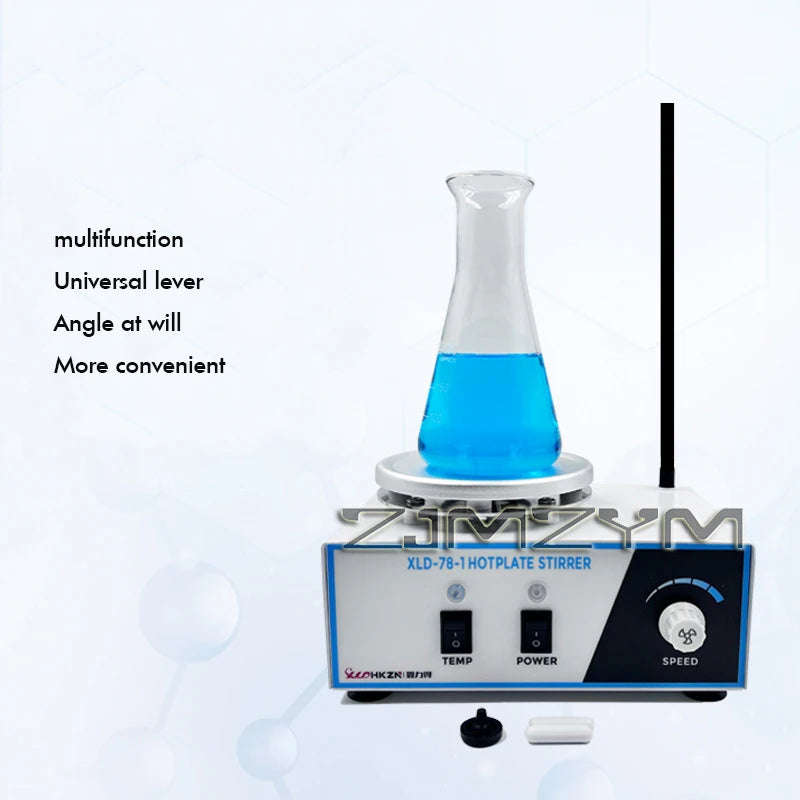

Take your lab work, DIY chemistry projects, or pigment mixing to the next level with this precision Magnetic Stirrer with Heating (Model XLD-78-1). Designed for consistent, reliable performance, this compact unit combines stepless speed regulation (0–2600 RPM) with a built-in heating plate that reaches up to 280°C — giving you complete control over both mixing speed and temperature in one device.
Made in Mainland China.
Key Features
- Stepless Speed Control: Smooth, continuous speed adjustment from 0 to 2600 RPM via a simple rotary knob — no sudden jumps or drops.
- Integrated Heating Plate: Heats from room temperature up to 280°C with 180W/250W thermal output, ideal for a wide range of mixing and warming applications.
- Large Mixing Capacity: Supports vessels up to 1000 mL, suitable for most lab-scale and DIY tasks.

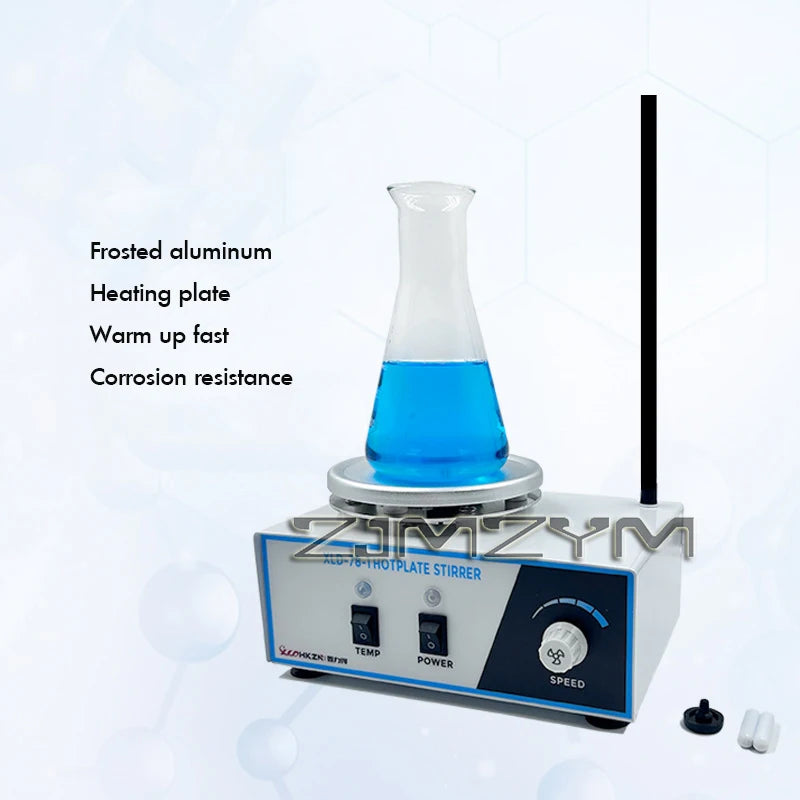

- Durable Aluminum Surface: 120mm × 120mm work surface crafted from 6061 aluminum with frosted oxidation treatment for chemical resistance and easy cleaning.
- Universal Voltage: Compatible with 110V/60Hz and 240V/50Hz — available with CN, US, UK, EU, or AU plug (please specify at checkout).
- Compact Footprint: Dimensions of 200mm × 146mm × 108mm fit neatly on any workbench without taking up valuable space.
- Low-Power Motor: Efficient 5W motor keeps energy consumption minimal during extended runs.
Technical Specifications
| Model | XLD-78-1 |
| Voltage / Frequency | 110V 60Hz / 240V 50Hz |
| Speed Range | 0 – 2600 RPM |
| Heating Range | Room temperature – 280°C |
| Thermal Output Power | 180W / 250W |
| Motor Power | 5W |
| Work Surface Size | 120mm × 120mm |
| Max Mixing Capacity | 1000 mL |
| Table Material | 6061 Aluminum (frosted oxidation) |
| Machine Dimensions | 200mm × 146mm × 108mm |
How to Use
- Place the unit on a flat, stable workbench and connect it to a power outlet matching the machine's rated voltage.
- Position your beaker or flask centrally on the heating disc to ensure stability before operating.
- Switch on the power — the indicator light will illuminate to confirm the unit is active.
- To adjust mixing speed, rotate the speed knob clockwise (increase) or counter-clockwise (decrease).
- To activate heating, flip the heating switch — the indicator light confirms the plate is warming up.
- When your process is complete, turn off the heating switch, reduce speed to zero, then power off.
- When not in use, unplug the power cord to fully disconnect from the supply.
What's in the Box
- 1 × Laboratory Magnetic Stirrer (XLD-78-1)
- Note: Glass bottle / beaker is NOT included.
- Note: Specify your required plug type (CN / US / UK / EU / AU) in your order notes.
Looking for more lab and craft accessories? Check out our Airtight Transparent PET Storage Bottle for convenient chemical or material storage, or the Ceramic Mini Sealed Storage Jar for compact, portable containment solutions.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the maximum volume this magnetic stirrer can handle?
A: The XLD-78-1 magnetic stirrer supports a maximum mixing capacity of 1000 mL (1 liter), making it well-suited for small to medium laboratory and DIY mixing tasks.
Q: Can I use this magnetic stirrer without the heating function?
A: Yes. The speed control and heating functions are independently operated. You can run the stirrer at any speed from 0–2600 RPM with the heating switch turned off, making it versatile for both ambient-temperature and heated mixing applications.
Q: Which plug types are available, and how do I specify mine?
A: This unit is available with CN, US, UK, EU, or AU plugs. Simply add a note to your order at checkout specifying which plug type you require. The unit supports both 110V/60Hz and 240V/50Hz power supplies.
Q: Is the glass beaker or bottle included with the stirrer?
A: No — the package includes only the magnetic stirrer unit itself. Glass vessels such as beakers or bottles are not included and must be sourced separately.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
