LQFP64 SMD Soldering Practice Kit – 5V Running Light Type-C
LQFP64 SMD Soldering Practice Kit – 5V Running Light Type-C
LQFP64 SMD Soldering Practice Board Kit – 5V Running Light with Type-C Interface
Level up your electronics skills with the LQFP64 SMD Soldering DIY Kit! This hands-on practice board is designed for students, hobbyists, and electronics enthusiasts who want to sharpen their soldering technique, understand circuit assembly, and explore digital electronics — all in one compact, 75 × 75 mm kit.
Powered via a modern Type-C connector at just 5V, this kit is beginner-friendly yet packed with enough complexity to challenge and educate. Every component you need is included — from the PCB and LED components to schematics and a detailed parts list — so you can dive straight into building.
Please Note: This is a DIY kit, not a finished product. Soldering and assembly are required by the customer.
Key Features
- Hands-On Learning: Perfect for foundational electronic technology training, digital circuit education, and soldering skills development.

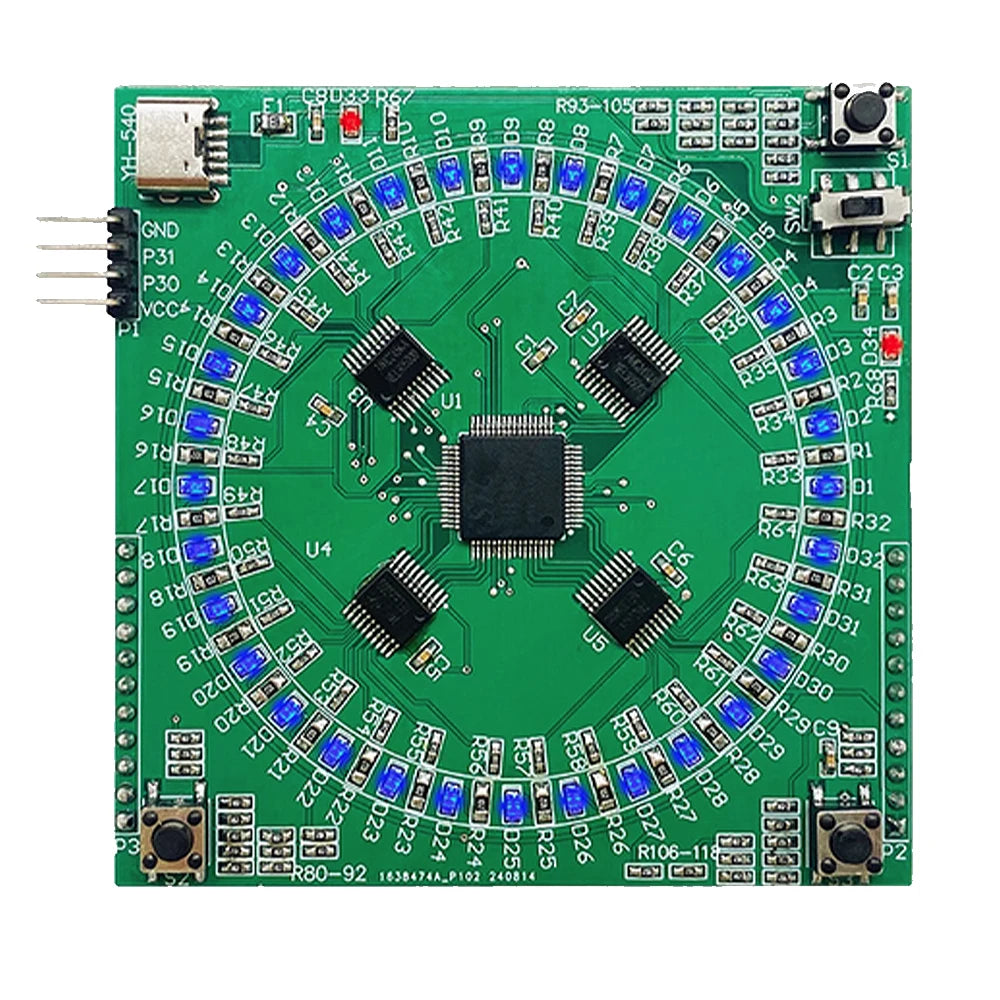

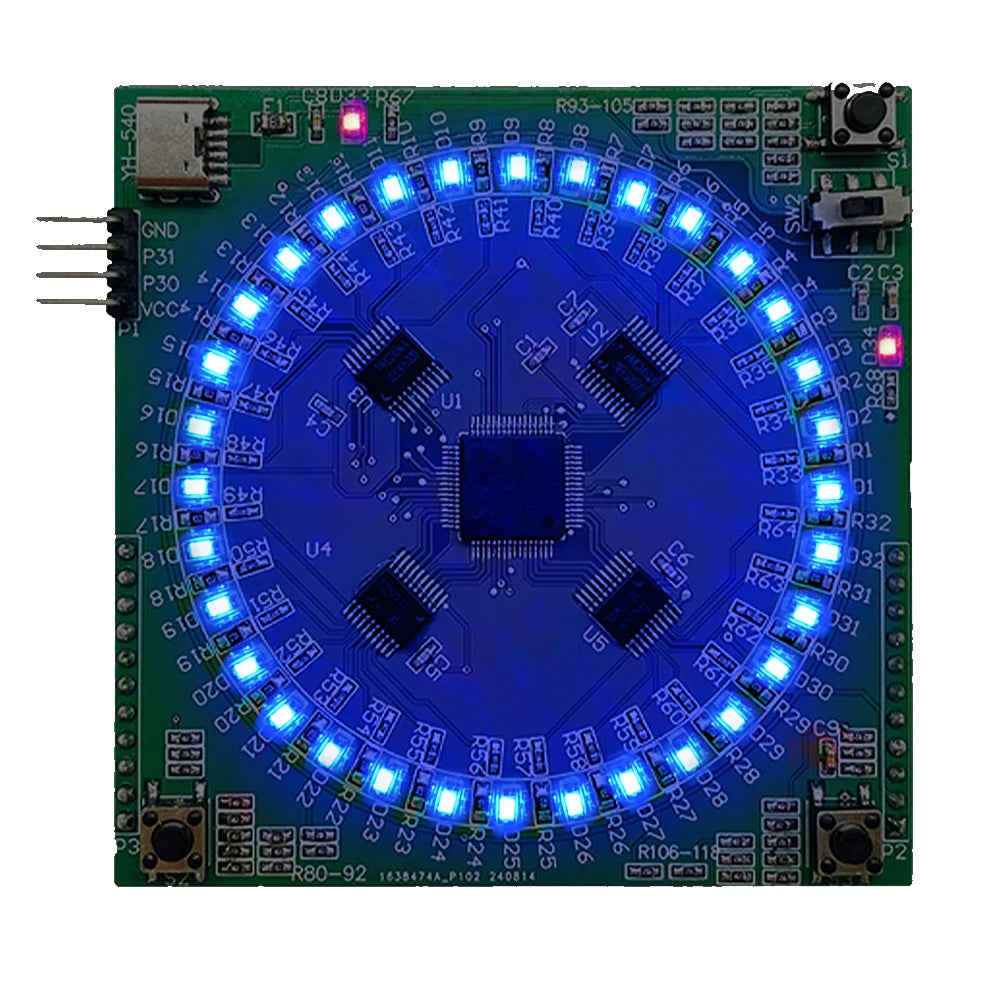

- Running Light Display: Visually rewarding LED running light effect to confirm your build is working correctly.
- Type-C Interface: Modern, reversible 5V power input for easy connection to current USB-C power sources.
- Expandable Design: Expansion holes on both sides accommodate LED dot matrix modules for future upgrades.
- Self-Programming Support: Compatible with C-interface and serial port programming for advanced customization.

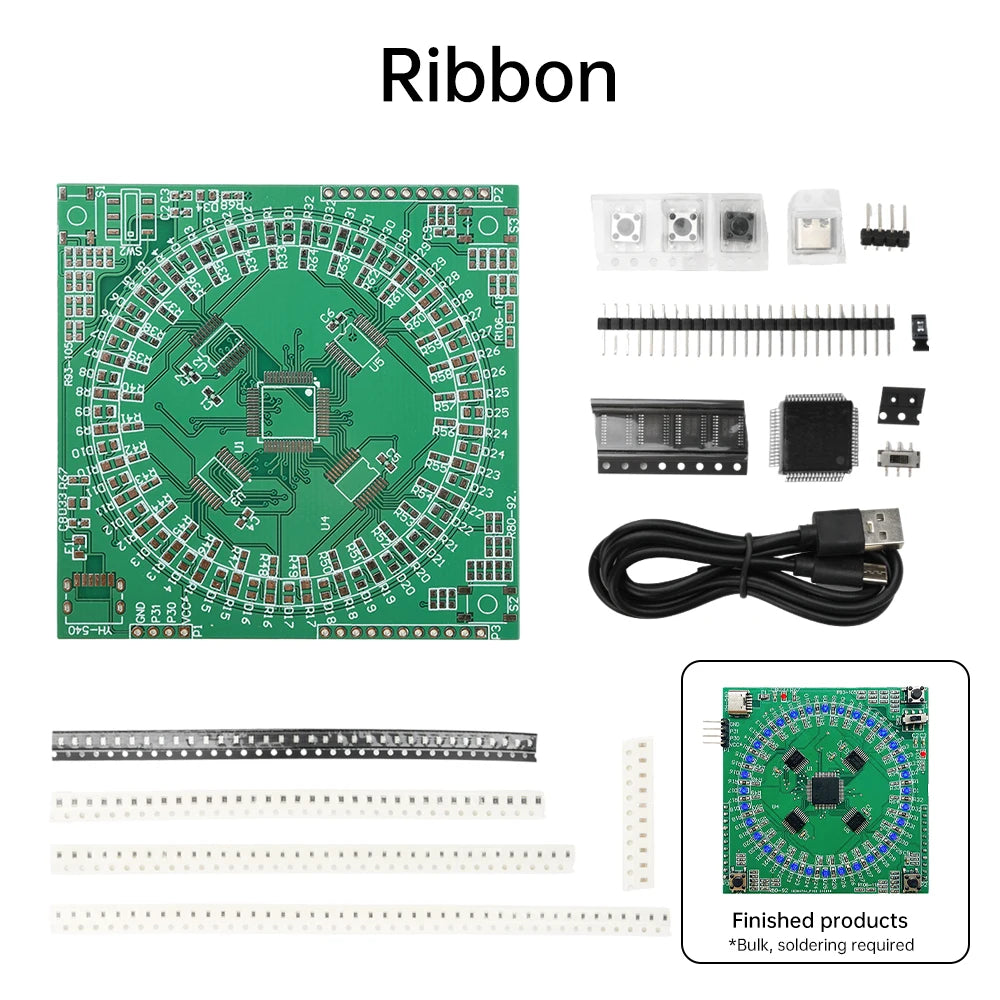

- Complete Kit: Includes all components, circuit board, supporting diagrams, and a full parts list.
- Low Power Consumption: Stable, efficient operation with an extended service life.
Product Specifications
| Interface | Type-C Connector |
| Supply Voltage | 5V |

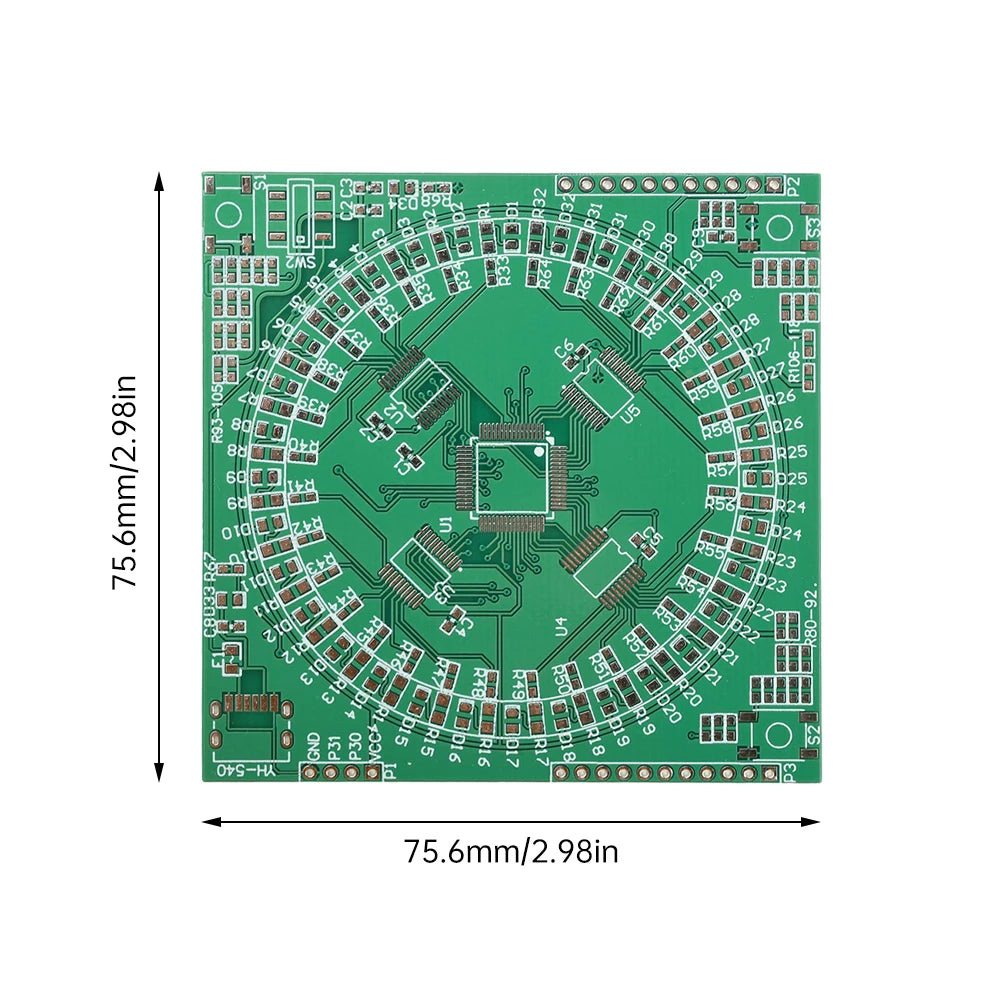

| Dimensions | 75 × 75 mm |
| Package Type | TQFP / LQFP64 |
| Power Consumption | Low |
| Quantity | 1 Kit |
| Country of Origin | Made in China (Mainland) |
Soldering Assembly Tips
- Component Orientation: LEDs and chips have designated orientations. LEDs are marked with a cathode symbol; IC chips are marked with pin indicators — always double-check before soldering.
- Passive Components: Capacitors, resistors, fuses, and switches have no polarity orientation. Carefully identify each component's value before placement to avoid errors.
- Type-C Port: Soldering the Type-C port requires care and precision. Consider using a header pin for 5V power supply first to test other circuit sections independently.
- Expansion Holes: The holes on both sides of the board are reserved for future LED dot matrix module expansion.
- Programming: Either the C interface or serial port can be used for self-programming. Always follow safe operating procedures when connecting to a programmer.
What's in the Box
- DIY Kit Components × 1 (PCB + all electronic components + schematics + parts list)
Who Is This Kit For?
Whether you're a student learning electronics, a teacher running soldering instruction classes, or a DIY maker looking for a rewarding weekend project, this LQFP64 SMD kit delivers both the educational depth and the satisfying visual payoff of a fully assembled running light display.
