Mini Adjustable DC Step-Up Boost Module 3–6V to 5–24V Output

Mini Adjustable Step-Up Boost Module – Dual Input, 5V–24V Output

Power your DIY electronics, hobby projects, and portable devices with precision using this compact Gaqqee Mini Adjustable Step-Up (Boost) Module. Featuring dual-input compatibility and a wide adjustable output range, this module is the ideal solution for makers, engineers, and electronics enthusiasts who need a reliable, lightweight voltage booster in a tiny footprint.

Key Features

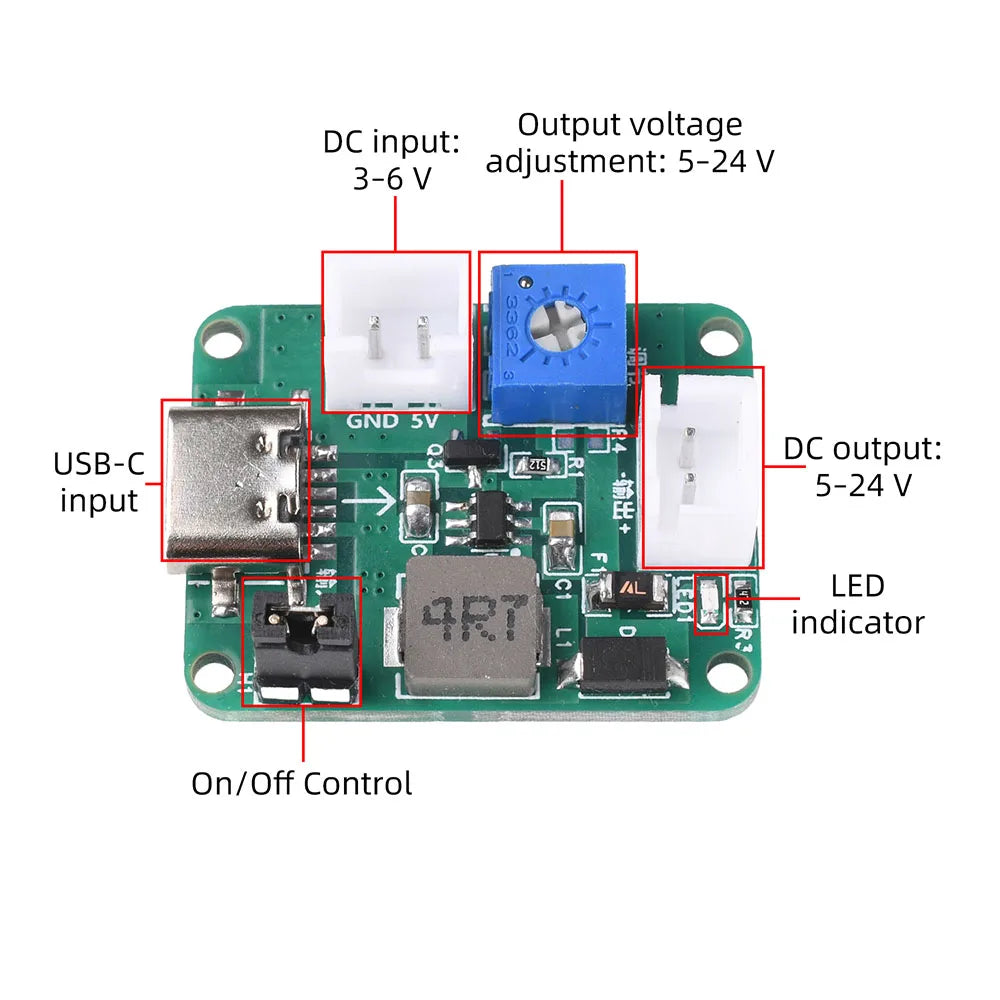

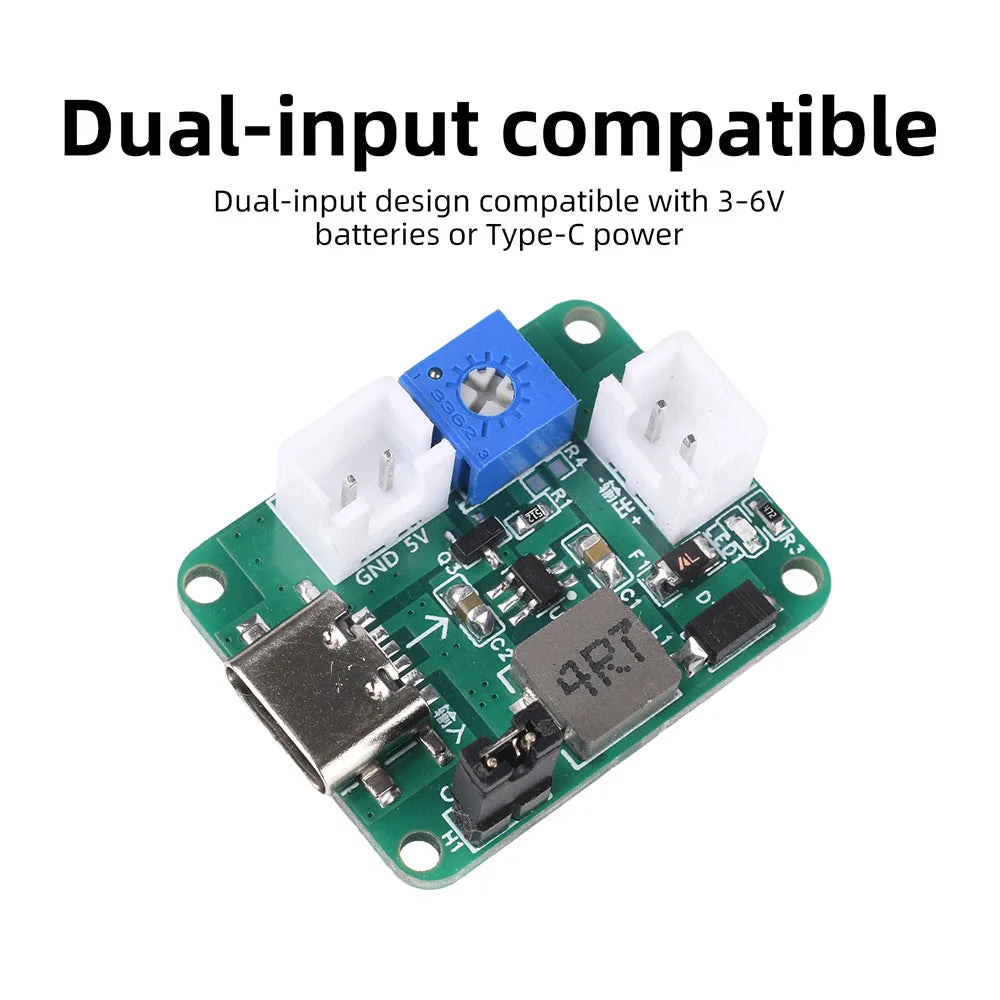

• Dual Input Options: Accepts both a USB Type-C 5V supply (VIN1) or a DC 3–6V battery/source (VIN2) — flexible enough for virtually any project setup.
• Wide Adjustable Output: Output voltage is adjustable from 5V up to 24V DC (turn clockwise to decrease, anti-clockwise to increase), covering common standards including 5V, 9V, 12V, and 24V.
• Max Output Current: Up to 2A for dependable performance in demanding applications.

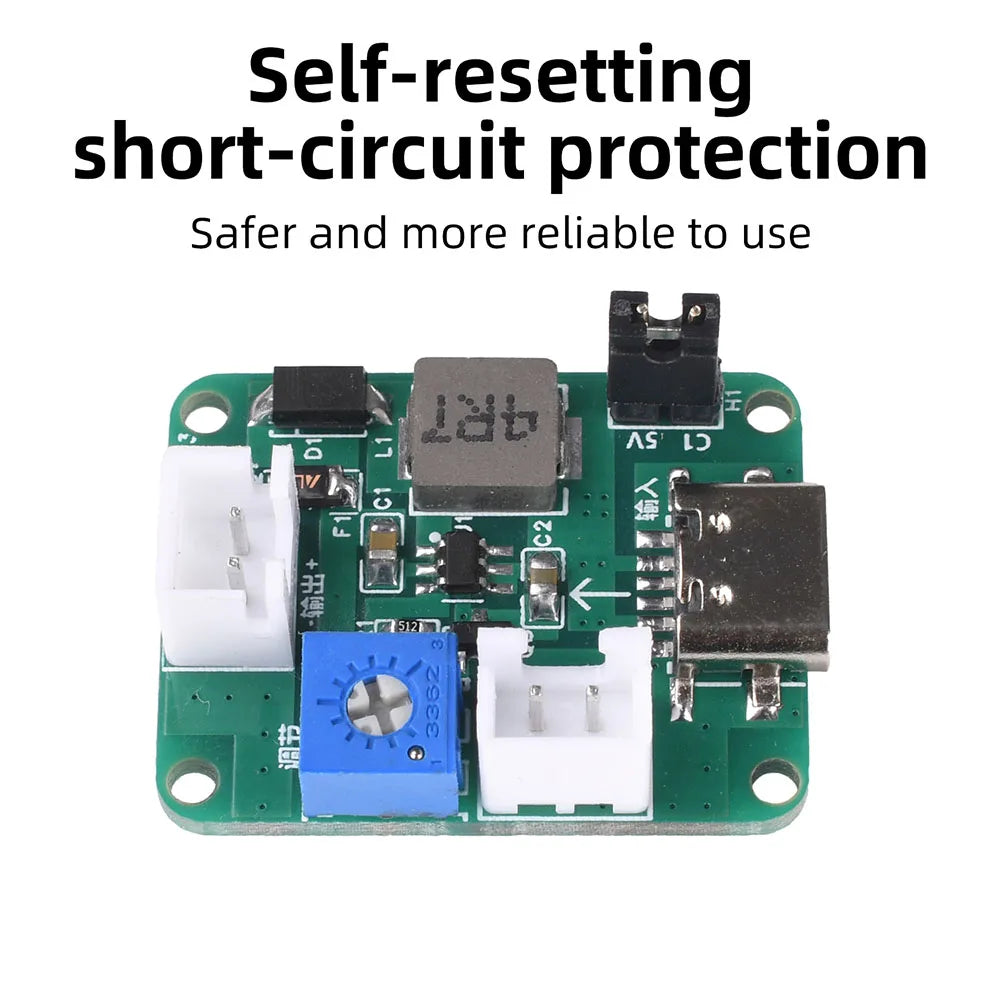

• Self-Recovering Short-Circuit Protection: Built-in 2A self-recovering protection automatically resets after a fault — no fuse replacement needed, keeping your devices and module safe.
• Digital Signal-Controlled Switch: Output can be toggled on or off via a digital signal, adding smart control capability to your builds.
• LED Output Indicator: Instantly know when the module is active with a clear onboard LED status indicator.
• Low Power Consumption: High-performance circuit design delivers stable, efficient output with minimal energy waste.

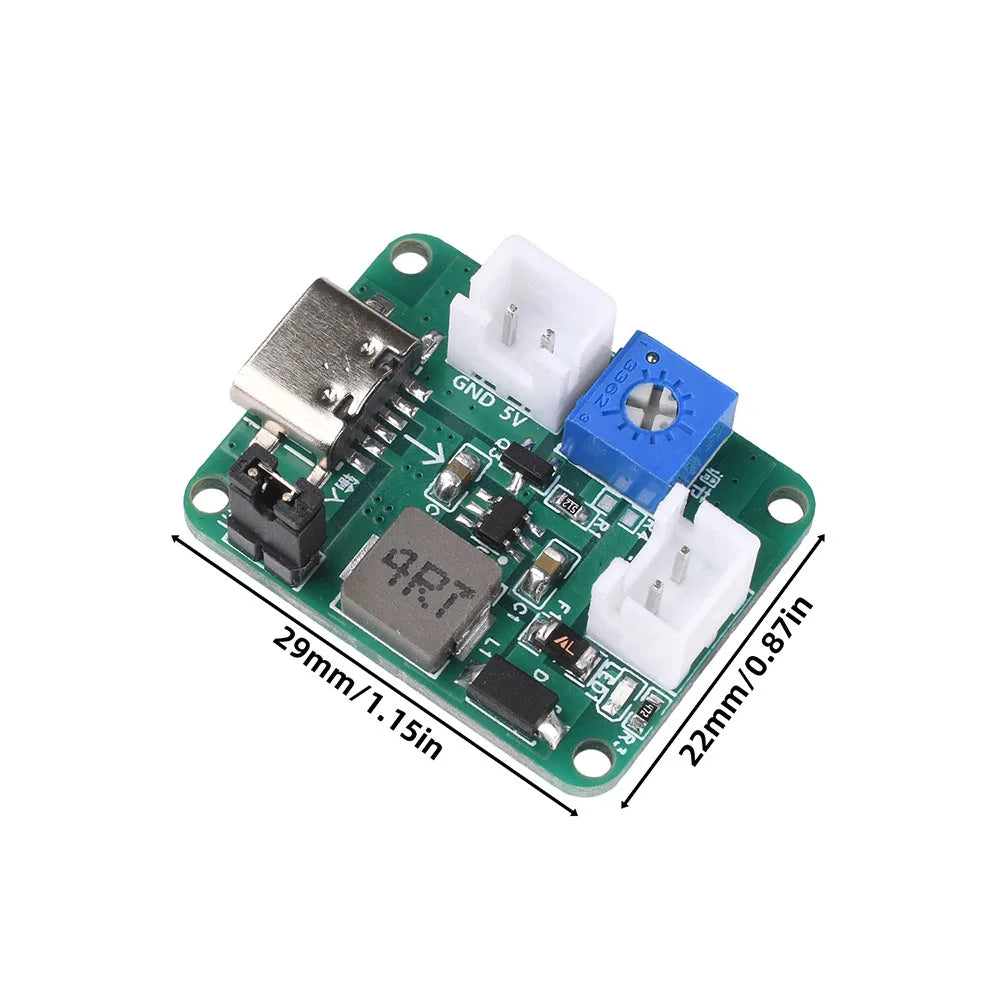

• Compact & Lightweight: Tiny form factor makes it easy to embed into tight spaces, enclosures, or wearable electronics.

Technical Specifications

What's in the Box?

• Mini Adjustable Step-Up Module × 1

Perfect For

• Arduino, Raspberry Pi, and microcontroller projects
• Portable battery-powered devices needing higher voltage
• DIY electronics builds and prototyping
• Robotics, drones, and wearable tech
• Computer and hobby electronics applications

Looking for more tools for your DIY and crafting projects? Check out our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm or browse our handy Airtight Transparent PET Storage Bottle | Beads & Crafts for keeping your components organized.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What input sources are compatible with this adjustable step-up module?

A: This mini boost module supports two input options: VIN1 accepts a USB Type-C 5V supply, and VIN2 accepts a DC 3–6V input such as batteries or other low-voltage DC sources. You can use either input depending on what's available in your project setup.

Q: How do I adjust the output voltage on this step-up module?

A: The output voltage is adjusted using the onboard potentiometer. Turn it clockwise to decrease the output voltage and anti-clockwise to increase it. The output range spans DC 5V to 24V, covering standard voltages like 5V, 9V, 12V, and 24V.

Q: What does the self-recovering short-circuit protection do?

A: The built-in self-recovering short-circuit protection (rated at 2A) automatically shuts the output down if a short circuit is detected, then resets itself once the fault is cleared — with no need to replace any fuse. This helps protect both the module and connected components.

Q: Can this module be switched on or off programmatically?

A: Yes. The module features a digital signal-controlled switch, which means you can enable or disable the output using a digital logic signal from a microcontroller such as an Arduino or Raspberry Pi, making it ideal for automated and programmable builds.
