NanoVNA Testboard Kit | Vector Network Analyzer Module

NanoVNA Testboard Kit – Vector Network Analyzer Demonstration Module

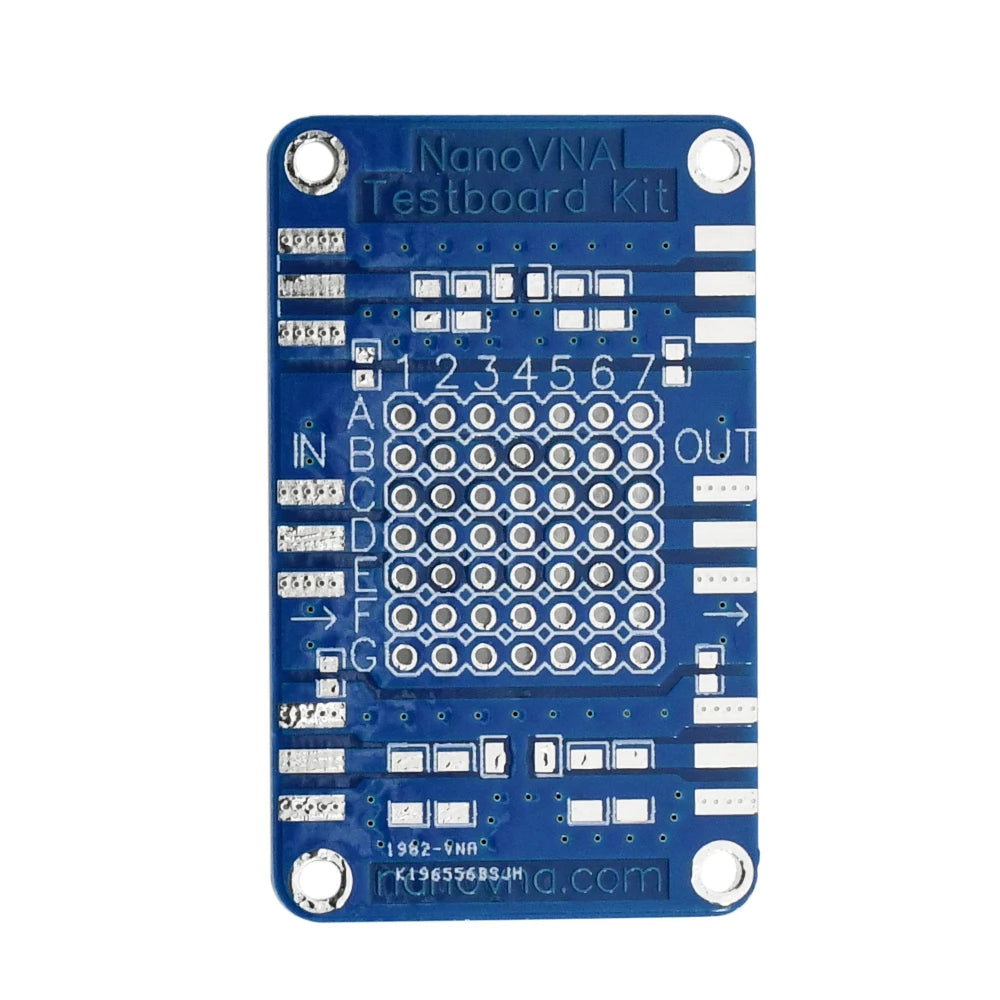

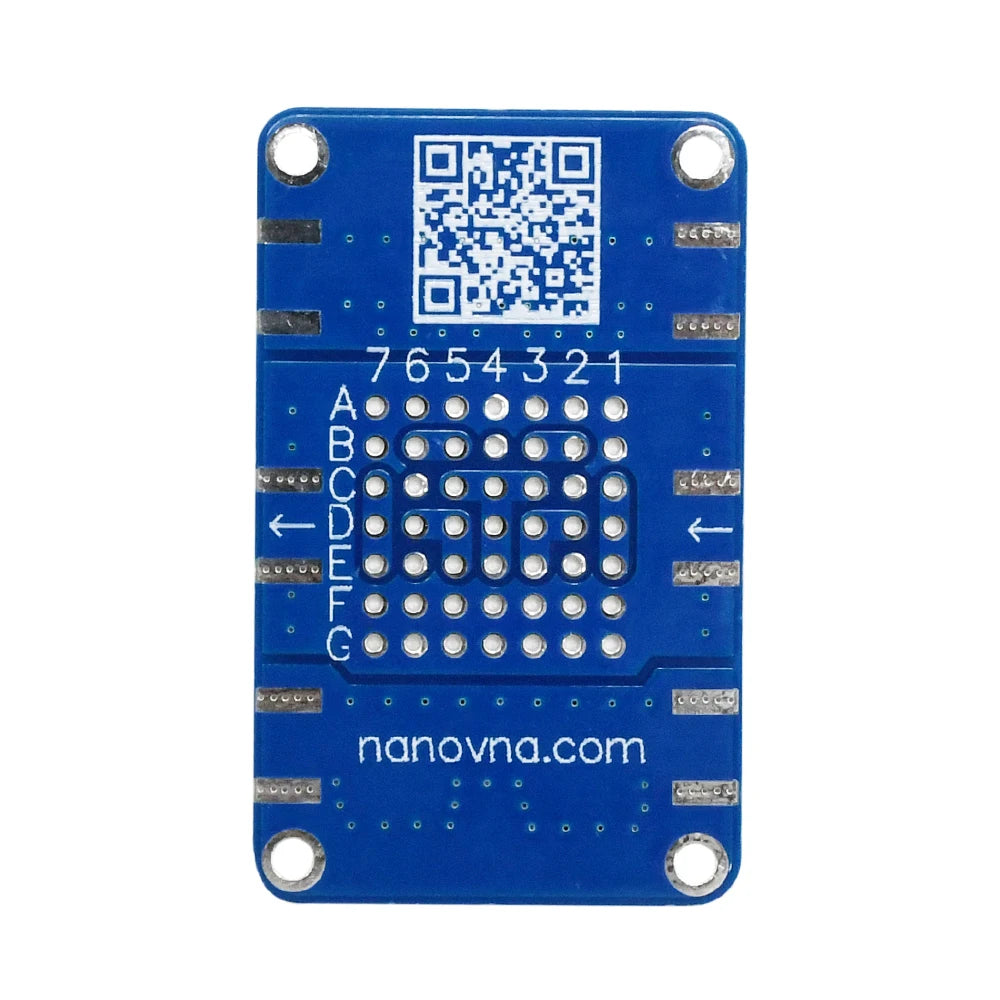

The NanoVNA Testboard Kit is an essential companion for engineers, hobbyists, and RF enthusiasts who want to conveniently measure plug-in and SMT (surface-mount) components using a NanoVNA or any compatible vector network analyzer. Compact, stable, and highly versatile, this kit brings precision component testing within easy reach.

Key Features

• Dual Component Compatibility: Includes plug-in test circuits compatible with the VNWA Testboard standard, plus an additional set of 0805 and 1206 SMT test circuits for surface-mount component measurement.
• Comprehensive Kit Contents: Everything you need to get started — main testboard, SMA connectors, copper studs, mounting screws, header sockets, and precision calibration resistors.
• Low Power Consumption: Designed with efficient, low-power circuitry for stable and reliable performance across a wide range of testing scenarios.
• Compact & Portable: Slim form factor makes it easy to integrate into your existing RF lab or workbench setup.
• High-Quality Construction: Built to deliver consistent, repeatable measurements — ideal for component characterization, filter testing, and antenna analysis.
• Customizable Assembly: Shipped unassembled, giving you full control over which test circuits you build based on your specific testing needs.

What's in the Box

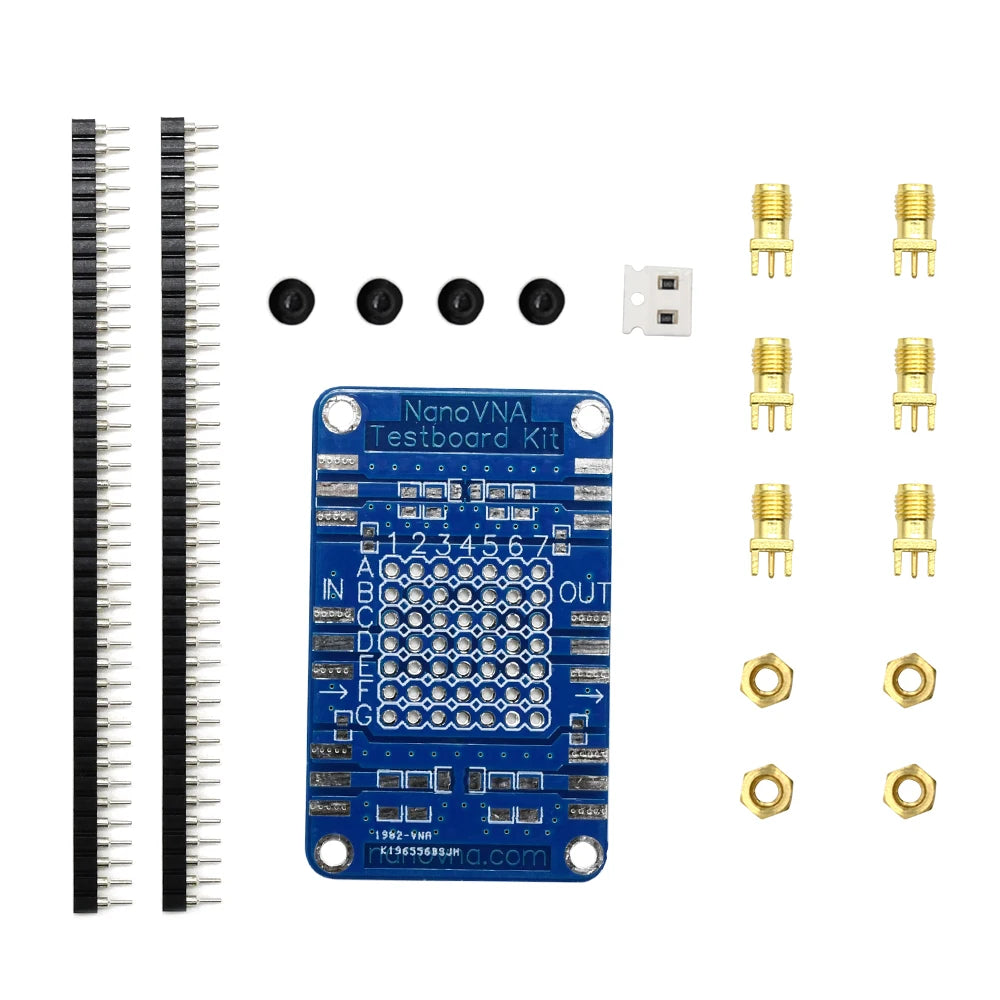

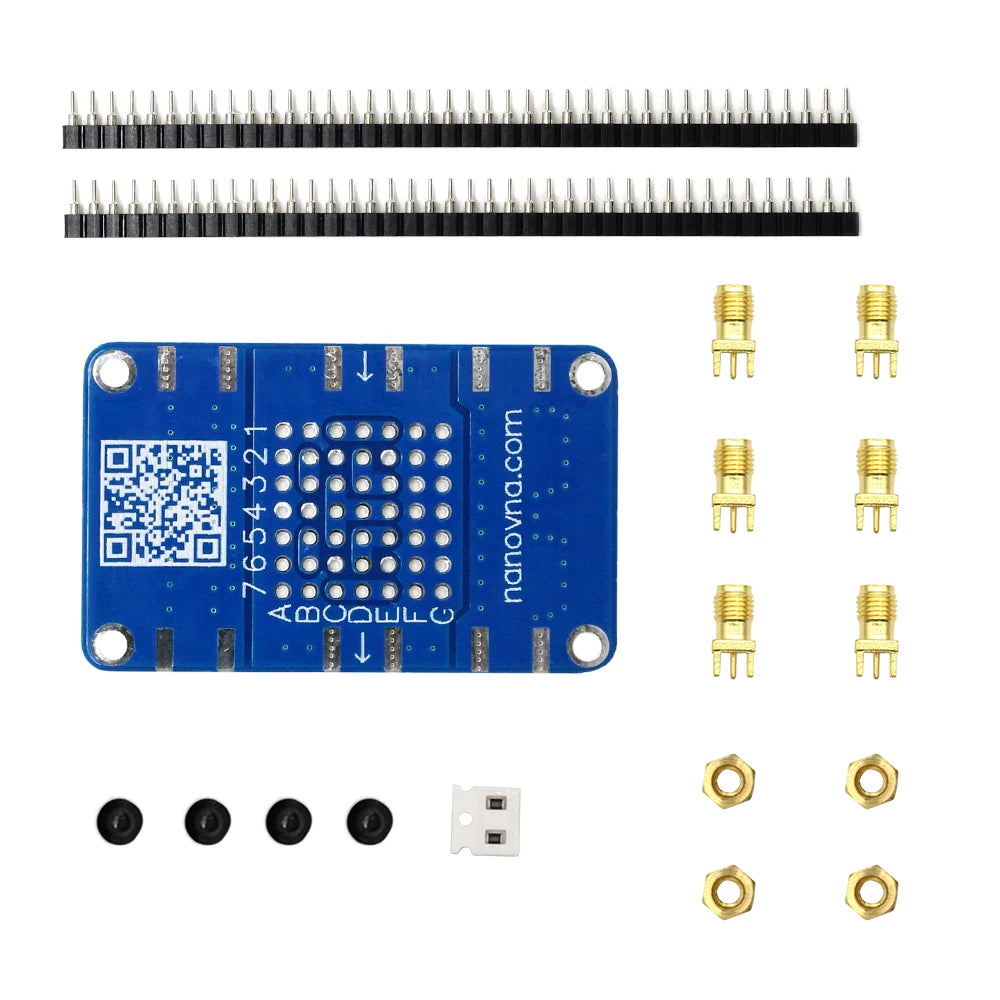

• Testboard main board × 1
• SMA female connectors × 6
• 6mm copper studs × 4
• M2.5 screws × 4
• 40-pin circular header sockets × 2
• 0805 49R9 calibration resistors × 2

Important Notes Before You Buy

• This board is shipped unassembled. Soldering tools and skills are required for assembly.
• SMT test circuits cannot account for every testing scenario — some components may require cutting and splicing. Intermediate-to-advanced hands-on electronics skills are recommended.
• A vector network analyzer (e.g., NanoVNA) is required separately and is not included.

Made in Mainland China.

Related Products You May Like

• Airtight Transparent PET Storage Bottle – Great for organizing small components & hardware
• Leather Hole Punch Tool – Useful for DIY workshop projects
• Vintage Baroque Embossed Metal Tray – Handy organizer for small parts & components

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Is the NanoVNA vector network analyzer included with this testboard kit?

A: No, the NanoVNA or any other vector network analyzer is not included. This kit is a dedicated testboard module designed to work alongside a NanoVNA or compatible VNA device, which must be purchased separately.

Q: Do I need soldering experience to assemble the NanoVNA Testboard Kit?

A: Yes. This kit is shipped unassembled and requires soldering tools and intermediate-to-advanced electronics skills. You will need to assemble the test circuits yourself based on your specific measurement requirements. Soldering irons, solder wire, and basic hand tools are not included.

Q: What types of components can I test with this vector network analyzer testboard?

A: The testboard supports both through-hole (plug-in) components and surface-mount (SMT) components in 0805 and 1206 package sizes. It is ideal for measuring inductors, capacitors, resistors, filters, and other passive RF components. Some complex testing scenarios may require cutting and splicing of the board traces.

Q: What is the SMA connector configuration on this testboard?

A: The kit includes 6 SMA female connectors, which are compatible with standard NanoVNA and VNWA coaxial cable setups, allowing straightforward two-port or multi-port measurements.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
