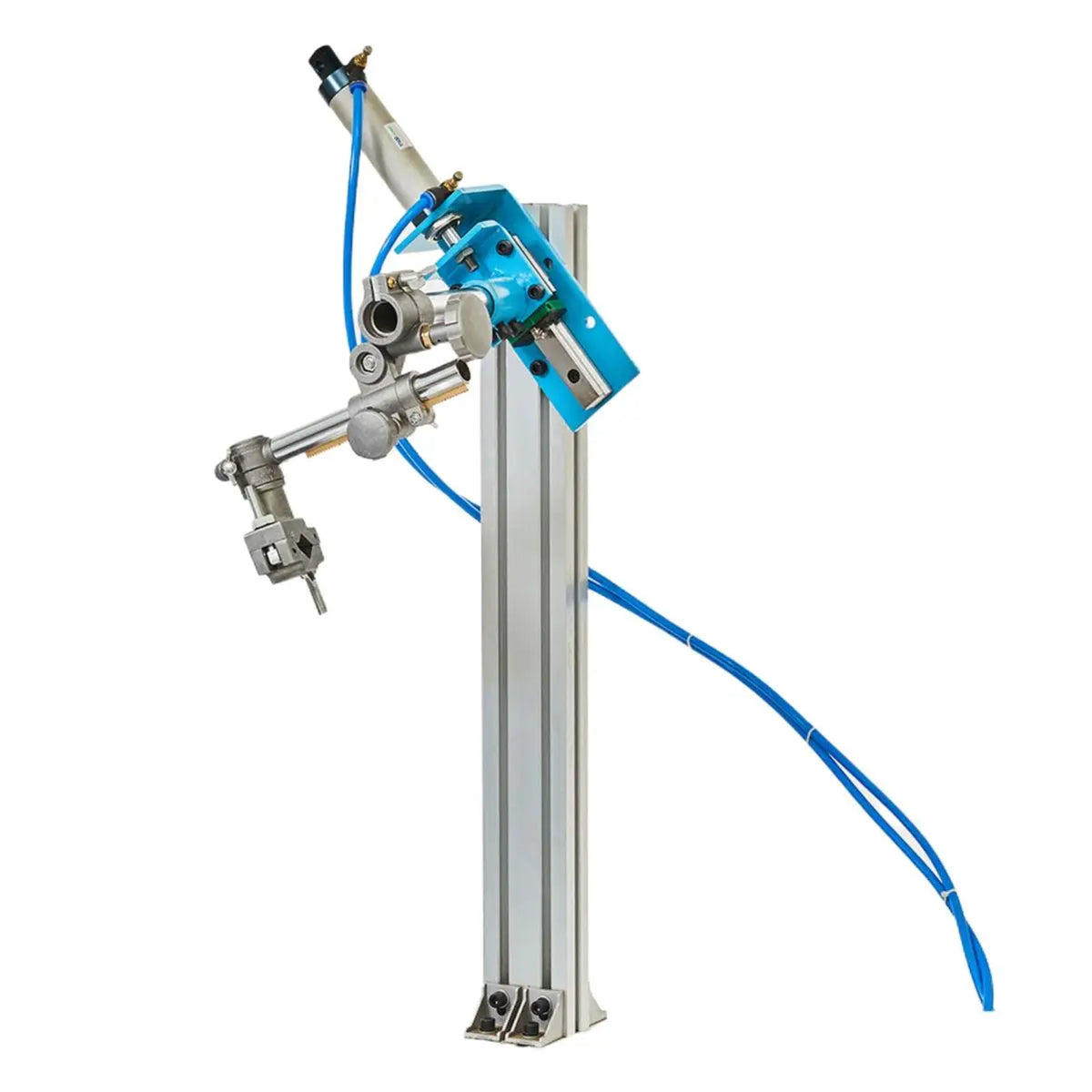

Pneumatic Air Cylinder Torch Holder with Aluminium Slide Rail for Welding Positioner
Upgrade your welding workstation with this heavy-duty Pneumatic Gas-Operated Air Cylinder Torch Holder. Designed for seamless integration with welding positioner turntable rotators, this system features a precision aluminium slide rail and a gas-operated air cylinder with an adjustable 75 mm stroke — giving you repeatable, controlled torch positioning on every pass.
Whether you're running automated welding cycles or fine-tuning a semi-automated setup, this torch holder delivers consistent alignment and smooth linear travel, helping you achieve cleaner welds with less manual adjustment.
Key Features
- 75 mm Adjustable Stroke – Precisely control torch travel distance for consistent weld starts and stops.
- Aluminium Slide Rail (100 cm) – Lightweight yet rigid rail keeps the torch perfectly aligned along the full travel path.
- Pneumatic / Gas-Operated Cylinder – Clean, reliable air-powered actuation with minimal maintenance requirements.
- Torch Clamp Included – Universal-style clamp accommodates most standard welding torches.
- Gas Tube & Switch Included – Everything needed for pneumatic connection is in the box.

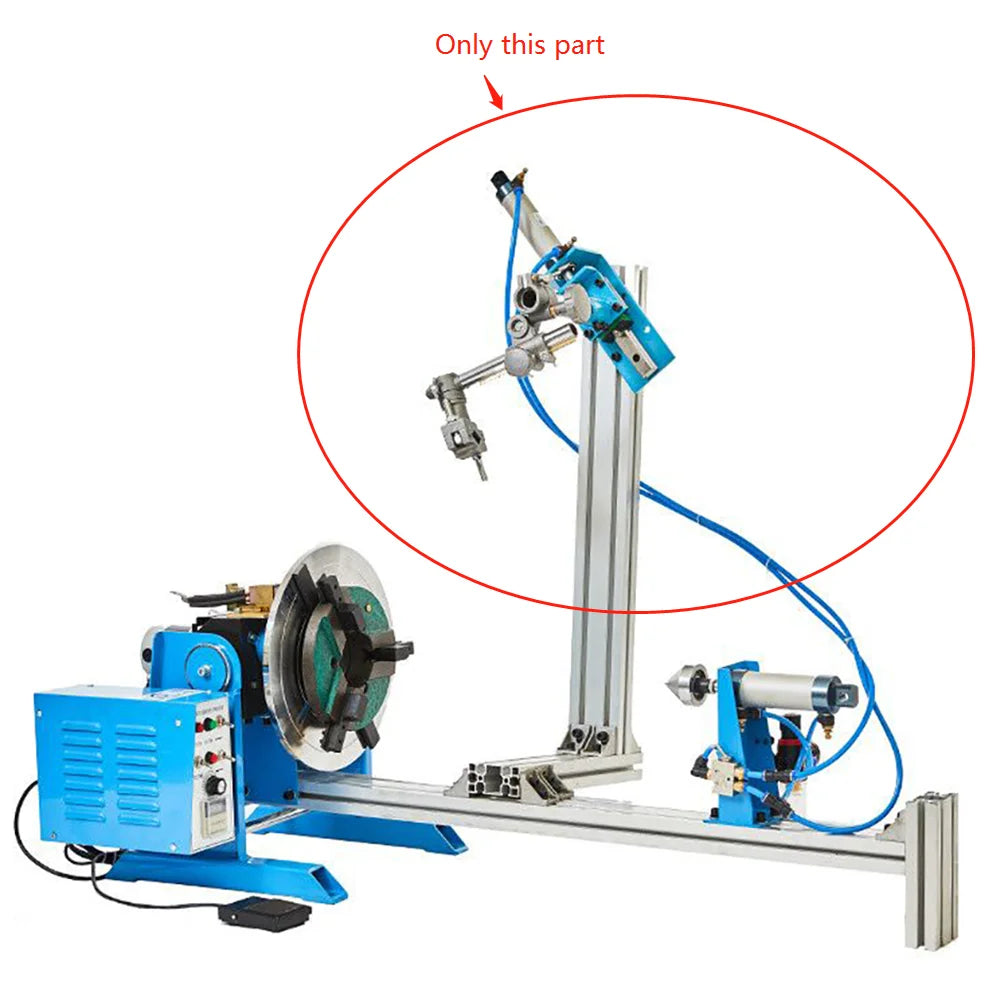

- Compatible with Welding Positioner Turntable Rotators – Designed to bolt directly onto rotary positioner setups.
- Robust Build – Engineered for industrial workshop environments and repeated heavy-duty cycling.

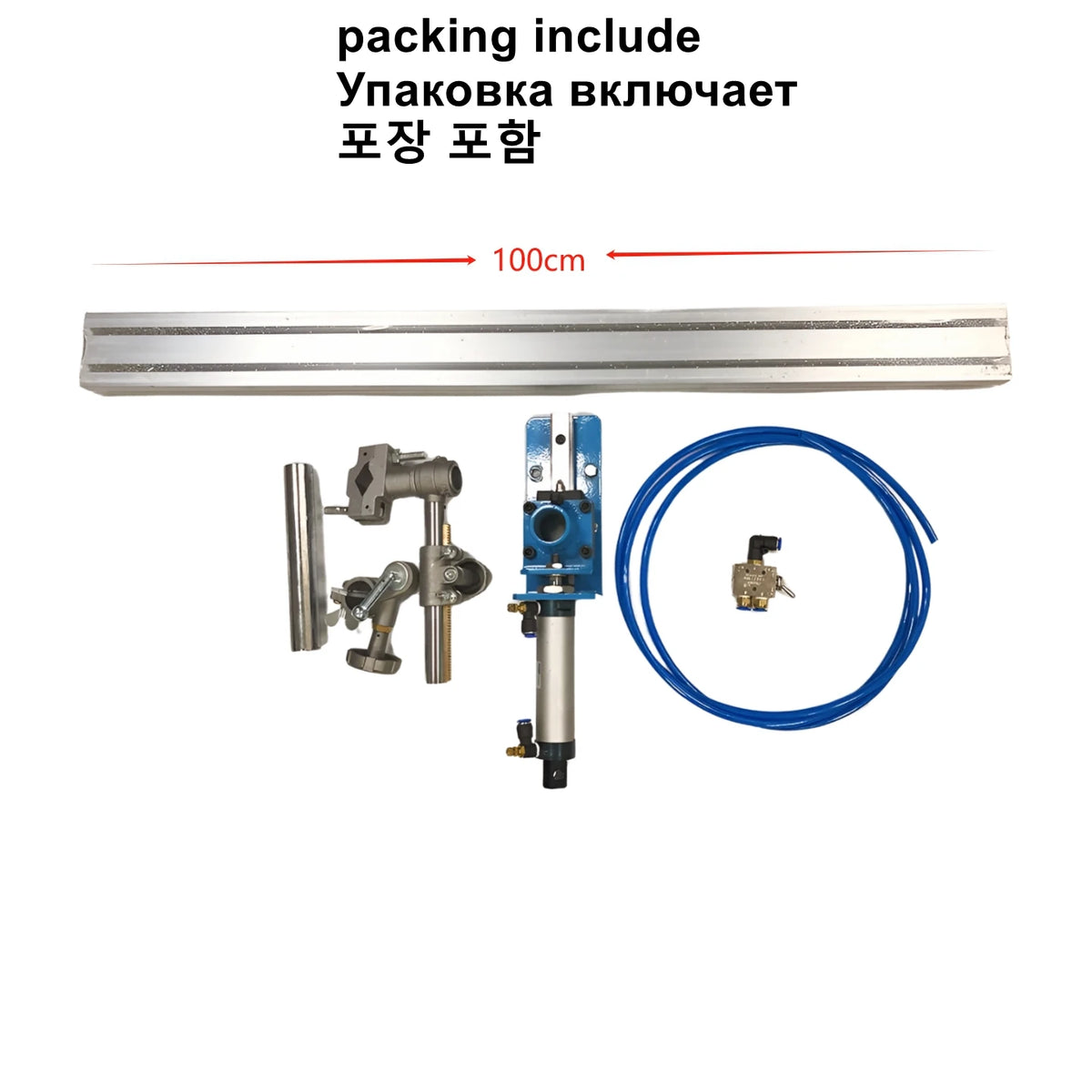

What's in the Box

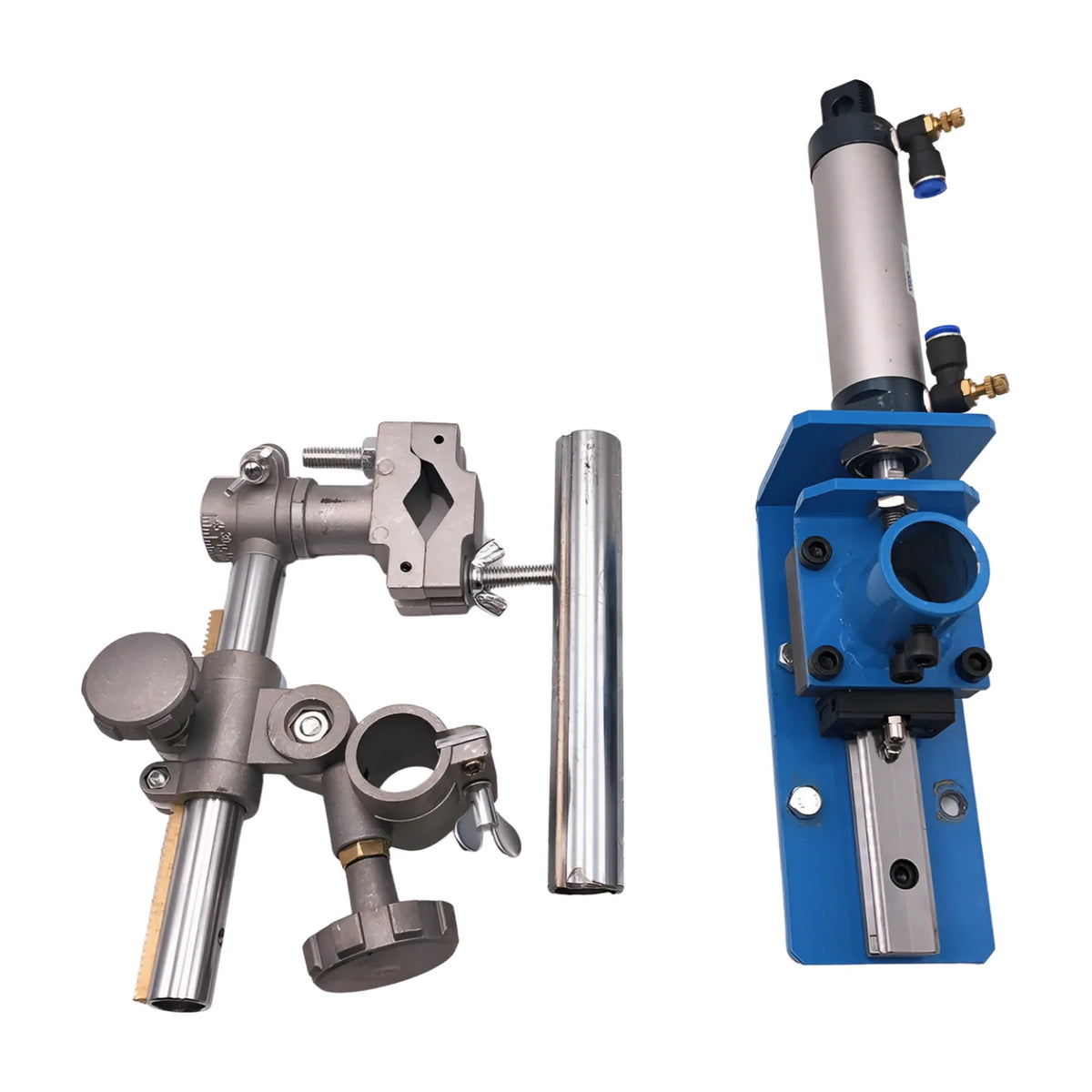

- 1× Air Cylinder (75 mm adjustable stroke)
- 1× Torch Clamp
- 1× 100 cm Aluminium Slide Rail

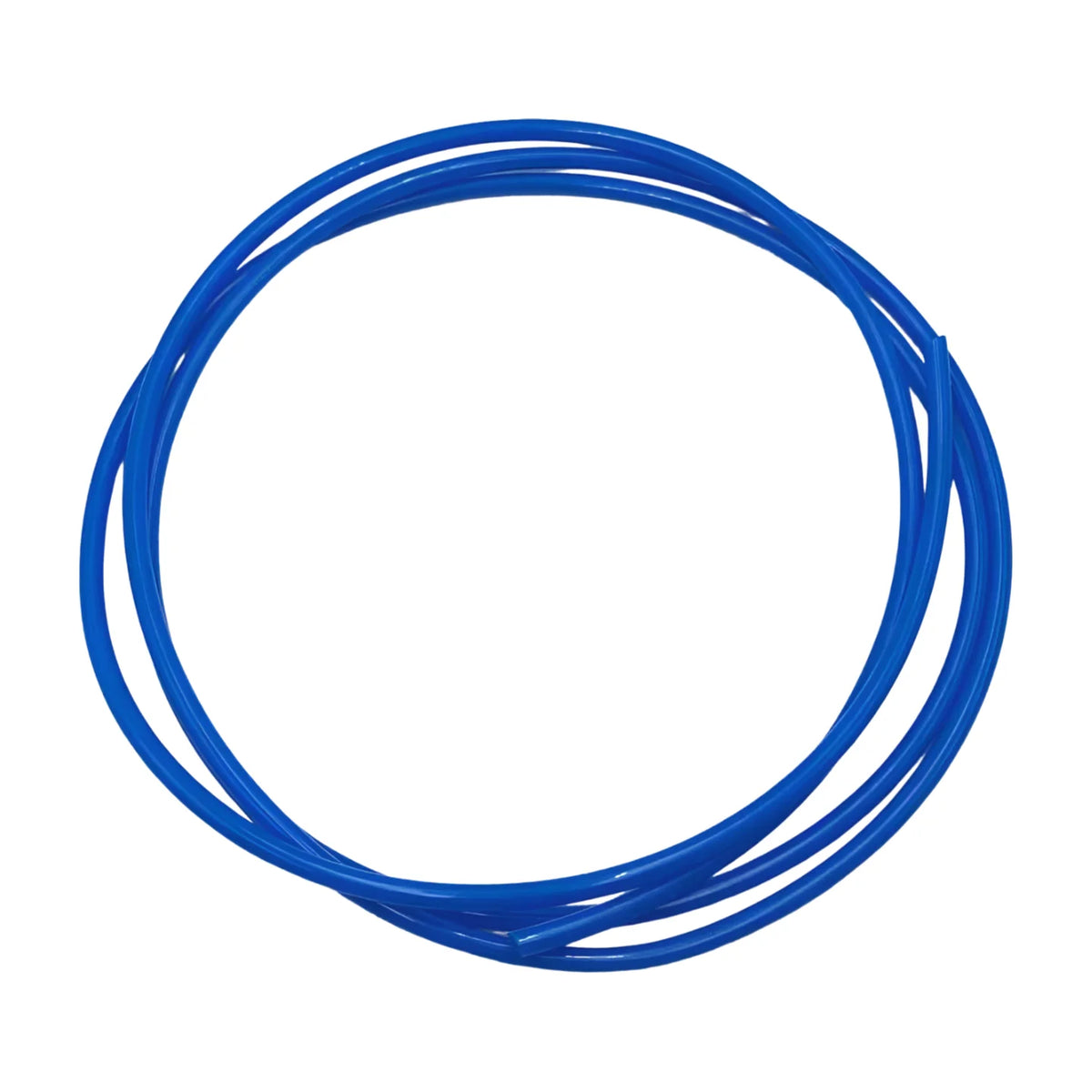

- 1× Gas Tube

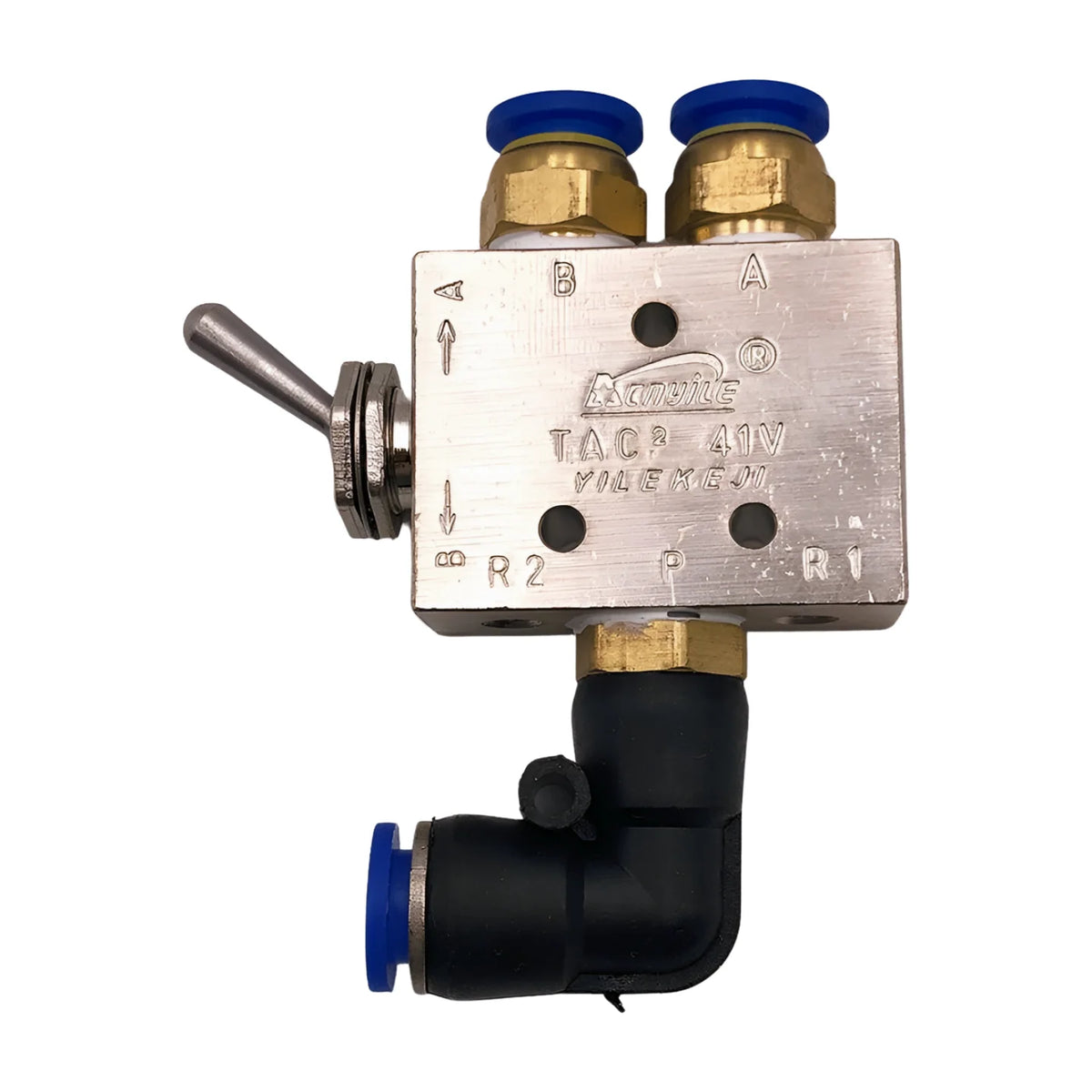

- 1× Gas Tube Switch
Specifications
| Stroke | 75 mm (adjustable) |
| Slide Rail Length | 100 cm (aluminium) |
| Product Weight | 8 kg |
| Packaging Size | 102 cm (L) × 20 cm (W) × 20 cm (H) |
| Actuation Type | Pneumatic / Gas-Operated |
| Country of Origin | Made in China |
Related Products You May Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the adjustable stroke range of the air cylinder?
A: The pneumatic air cylinder features an adjustable stroke of 75 mm, allowing you to fine-tune torch travel distance to suit your specific welding application and positioner setup.
Q: Is this torch holder compatible with all welding positioner turntable rotators?
A: This pneumatic torch holder is designed to be compatible with most standard welding positioner turntable rotators. The aluminium slide rail measures 100 cm in length and the torch clamp accommodates most standard torch diameters. We recommend verifying your positioner's mounting interface before ordering.
Q: What air pressure supply is required to operate the cylinder?
A: The cylinder is a standard pneumatic gas-operated design compatible with typical workshop compressed air supplies. Please refer to the product images for full pneumatic connection details, and ensure your workshop compressor output is matched to the cylinder's operating range.
Q: Does the kit include everything needed for installation?
A: Yes. The complete package includes the air cylinder, torch clamp, 100 cm aluminium slide rail, gas tube, and gas tube switch — providing all the core components needed to mount and connect the system to your welding positioner.
