Remote-Controlled PWM Electronic Switch Module for Drones & Water Pumps

Take precise control of your drone accessories, water pumps, and model aircraft systems with this compact and reliable PWM Signal Electronic Switch Module by Gaqqee. Designed for RC enthusiasts, agricultural drone operators, and hobbyists, this module delivers stable, low-power switching performance across a wide voltage and current range — all from your standard two-stage remote control.

Made in Mainland China.

Key Features

Wide Compatibility: Supports operating voltages from 3.0V to 30V and output currents of 2A, 20A, or 30A — available in low-voltage and high-voltage variants.
PWM Signal Control: Seamlessly integrates with standard RC receivers using JR Male control connectors for reliable two-stage switching.

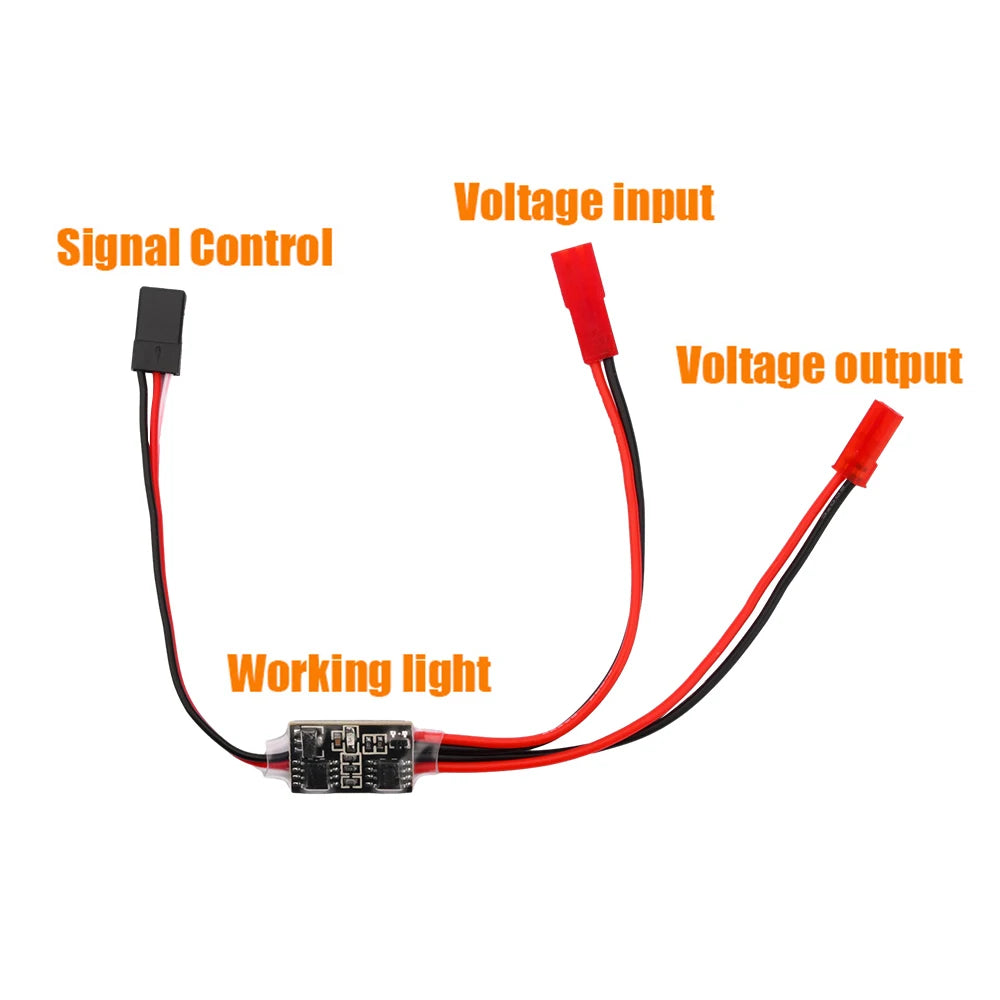

LED Status Indicator: Slow flashing LED = no output (standby); steady LED = active output — instantly know your switch state at a glance.
Premium Materials: Built from quality components for stable performance and an extended service life.
Compact Form Factor: Space-saving design fits neatly into drones, model aircraft, irrigation systems, and other RC platforms.
Low Power Consumption: Energy-efficient design minimises draw on your power supply.

Specifications

2A / 20A Versions

Operating Voltage: 3.0V–5V (Low-Voltage) / 3.0V–30V (High-Voltage)
Output Current: 2A (Low-Voltage) / 20A (High-Voltage)
Switch Trigger: OFF below 1.5ms pulse width; ON above 1.5ms pulse width
Control Type: Two-stage RC remote switch
Low-voltage version: Input and output voltages are identical (plug-in receiver powered)

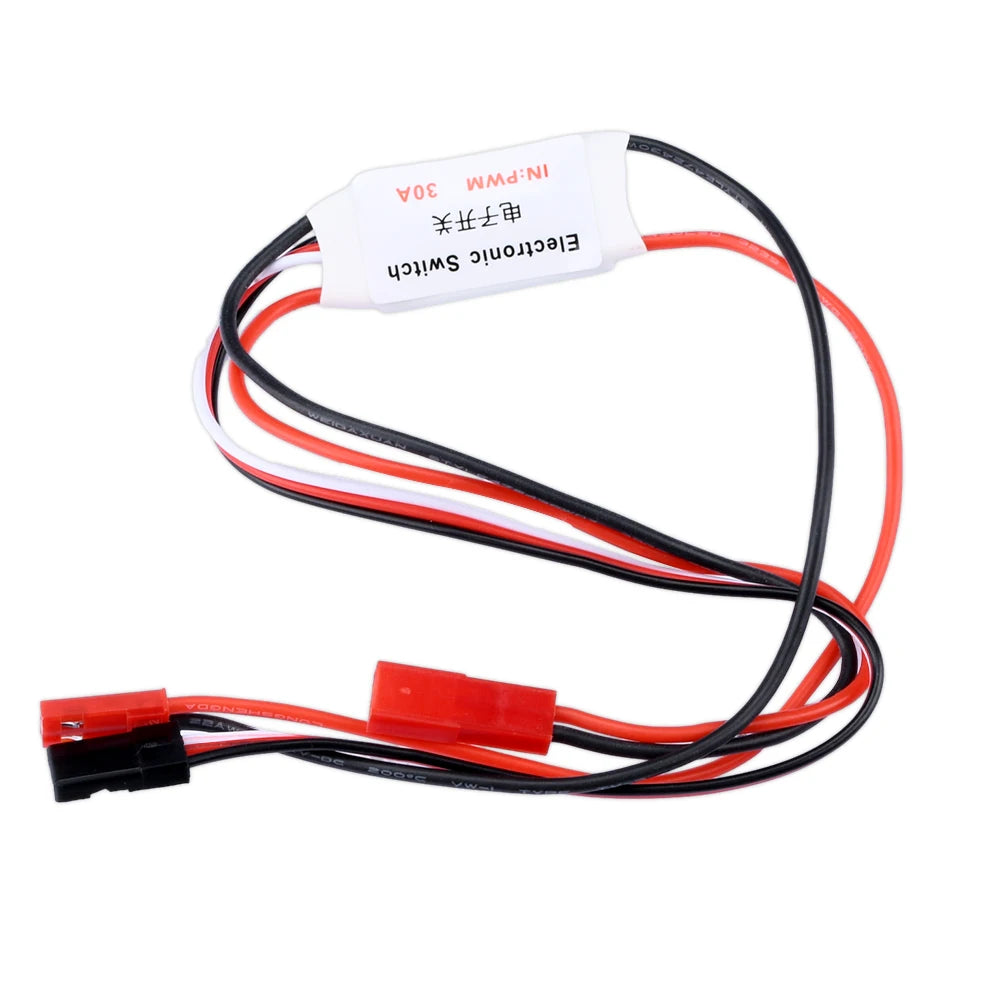

30A Version

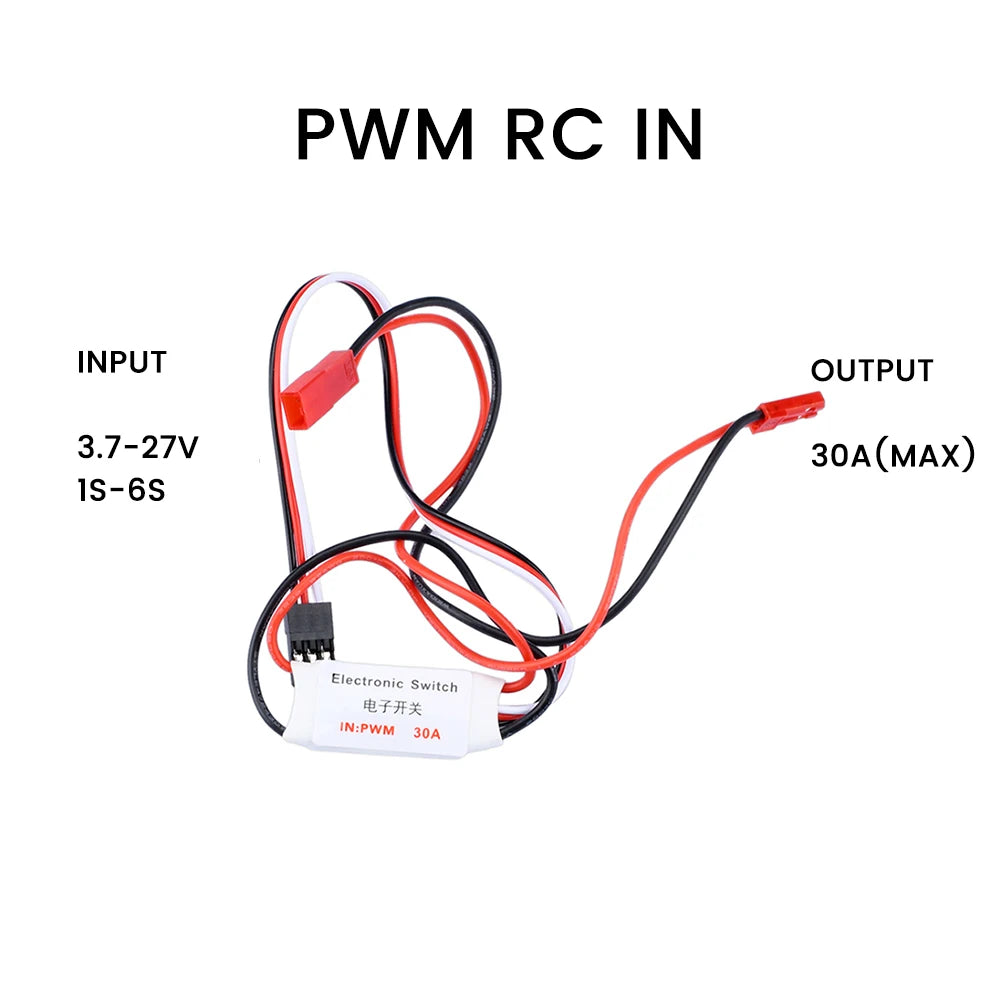

Input Voltage: 3.7V–27V
Output Current: 30A
Control Signal: PWM

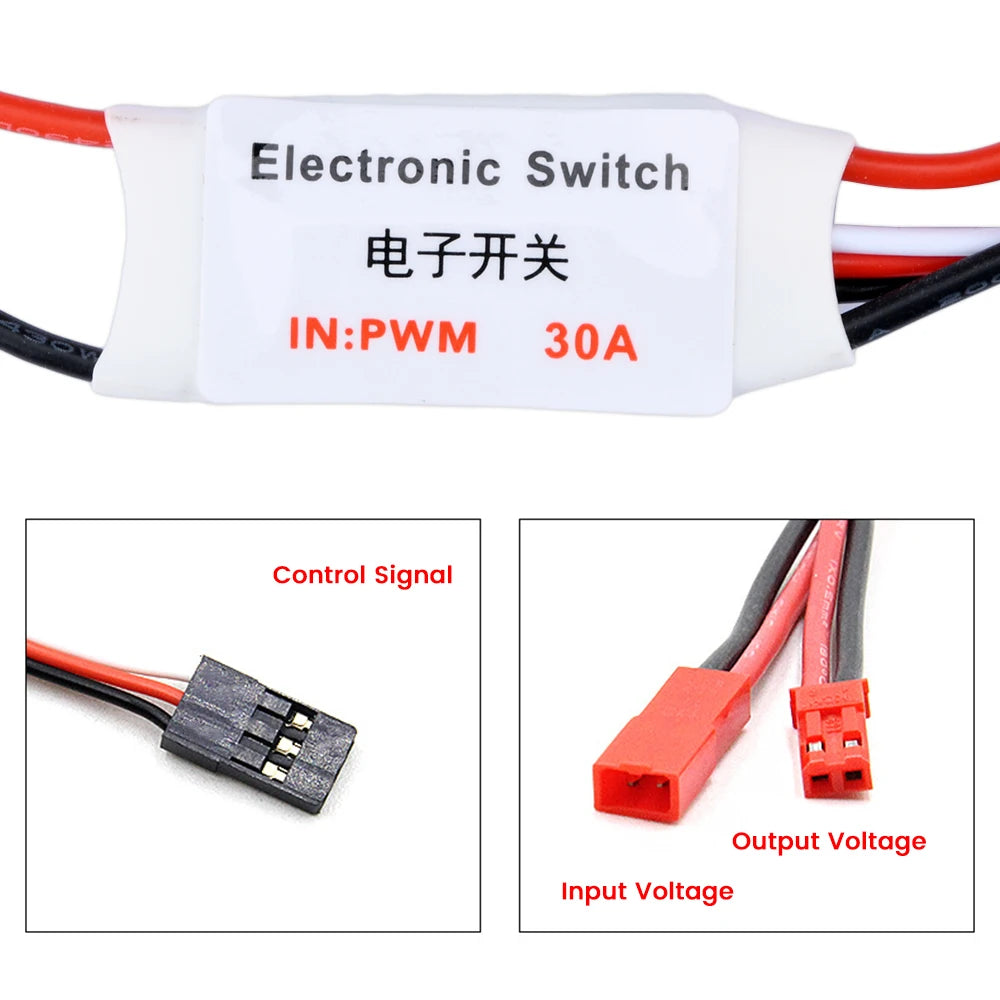

Output Connector: JST Female
Input Connector: JST Male
Control Connector: JR Male

Important Usage Notes

This electronic switch is designed for two-stage control operation, with each switch position occupying half the deflection range. The LED indicator illuminates when the switch is active. Do not exceed the rated current for your chosen variant — overloading may cause wiring to overheat or damage the module.

Package Contents

1 × PWM Electronic Switch Module

Frequently Asked Questions

Q: What is the difference between the low-voltage and high-voltage versions of this PWM electronic switch module?

A: The low-voltage version operates at 3.0V–5V and supports up to 2A output current, making it ideal for smaller RC accessories. The high-voltage version operates at 3.0V–30V and supports up to 20A, suitable for more power-demanding applications such as agricultural drone water pumps and larger motor systems.

Q: What type of RC receiver or remote control is compatible with this switch module?

A: This module works with standard two-stage RC remote controls that output a PWM signal. It uses a JR Male control connector (for the 30A version) and integrates directly with most common RC receivers used in drone, model aircraft, and RC vehicle setups.

Q: Can I use this electronic switch module to control a water pump on an agricultural drone?

A: Yes. This module is specifically designed for applications including drone-mounted water pumps and crop protection sprayer systems. Choose the 20A or 30A variant based on your pump's current requirements, and ensure wiring is rated to match the output current to ensure safe operation.

Q: What does the LED indicator on the module mean?

A: A slow-flashing LED indicates the switch is in standby (no output), while a steady (solid) LED light means the switch is actively outputting power. This provides a quick visual confirmation of your module's operating state.
