Take full command of your industrial or computer cooling fans with this precision 4-Wire PWM Fan Temperature Speed Controller by Gaqqee. Designed for wide-voltage operation (DC 11–55V), this compact module automatically adjusts fan speed based on real-time temperature readings — keeping your equipment running efficiently and quietly. Compatible with standard 4-wire EBM fans and high-voltage EC fans using 10V PWM control signals.
Made in Mainland China.
Key Features
- Wide Voltage Range: Operates on DC 11–55V, suitable for a broad range of industrial and computer fan applications.
- Dual PWM Frequency: Selectable 20kHz or 2.5kHz (±2%) output frequency for compatibility with various fan types.
- Precise Temperature Control: Measures from -9.9°C to 99.9°C with accuracy better than 1.2°C (within 0–50°C range).
- EC & EBM Fan Compatible: Supports common 4-wire EBM fans and standard high-voltage EC fans via 10V PWM signal.

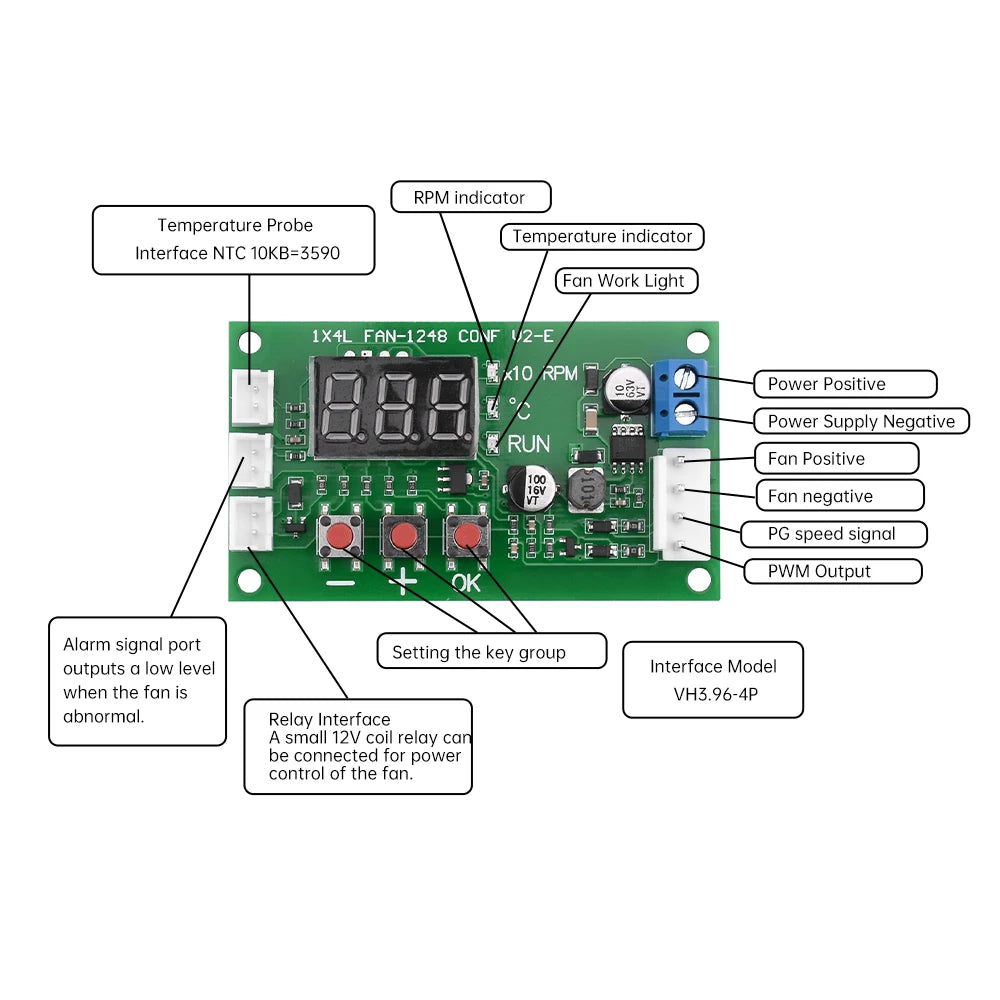

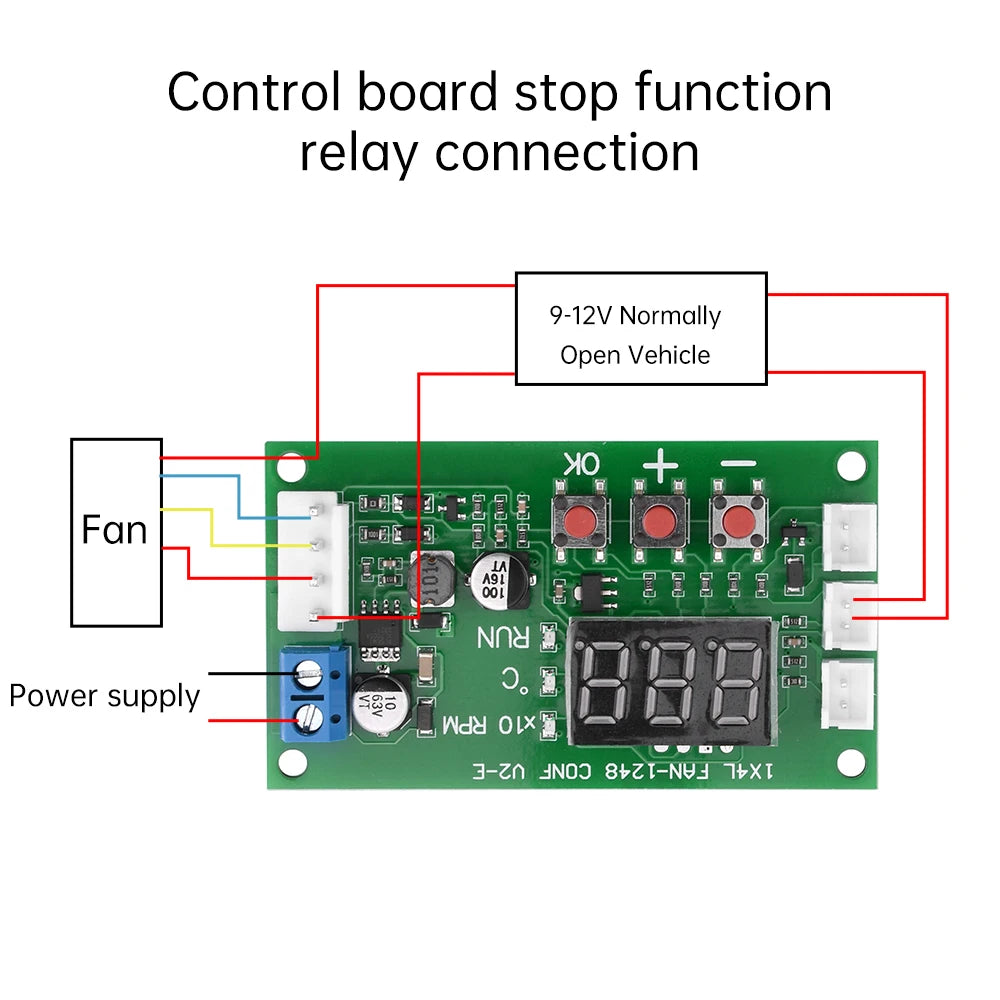

- Low-Temperature Shutdown: Automatically cuts fan power via PWM disengagement or relay-extended power cut-off when temperatures fall below a set threshold.
- 3-Digit LED Display: Clearly shows fan RPM, current temperature, and operating status at a glance.
- Manual Speed Override: Directly set fan speed between 5–100% with a simple button press for fixed-output control.
- Low Power Consumption: Operating current under 0.1A — energy-efficient and board-friendly.
- Fan Alarm Output: Alarm signal port outputs a low level if the fan malfunctions during a run state.
Technical Specifications
| Supply Voltage | DC 11–55V |
| Operating Current | <0.1A |
| Fan Current Capacity | <5A (board connector; higher loads require direct power wiring) |
| PWM Frequency | 20kHz or 2.5kHz (±2%) |
| PWM Signal Amplitude | 10.5V (no-load) |
| Temperature Range | -9.9°C to 99.9°C |
| Temperature Accuracy | <1.2°C (0–50°C); <2°C outside that range |
| Package Type | TQFP Module |
| Quantity | 1 controller + 1 probe cable |
| Brand | Gaqqee |
| Origin | Mainland China |
Button Controls at a Glance
- '+' / '–' Buttons: Switch display modes during operation; adjust parameter values in setup mode (long press for rapid adjustment).
- 'OK' Button – Short Press (during operation): Enter fixed manual speed output mode (5–100%). Press again to save and exit.
- 'OK' Button – Long Press (during operation): Enter temperature parameter settings. Configure acceleration temperature (L**), full-speed temperature (H**), and shutdown temperature (C**) in sequence.
- 'OK' Button – Power-On Hold: Access function settings to configure PWM frequency (F20 / F2.5) and PWM output direction (forward / reverse).
Temperature Parameter Guide
- Acceleration Temperature (L**): Range 5–94°C. Fan speed increases proportionally above this threshold.
- Full-Speed Temperature (H**): Range 10–99°C. Fan runs at 100% PWM output at or above this value.
- Shutdown Temperature (C**): Range 0–92°C. Fan shuts down below this temperature when set above 0; setting to 0 disables low-temperature shutdown.
Note: Acceleration and full-speed temperatures must differ by at least 5°C. Shutdown and acceleration temperatures must differ by at least 2°C. The controller automatically adjusts related parameters if thresholds are breached.
LED Display Indicators
- X10 RPM: When lit, multiply the displayed value by 10 to read actual fan RPM (e.g., display "256" = 2560 RPM).
- ℃: When lit, the display shows the current temperature from the sensor probe.
- RUN: Illuminates when the fan control signal is active; extinguishes during low-temperature shutdown.
What's in the Box

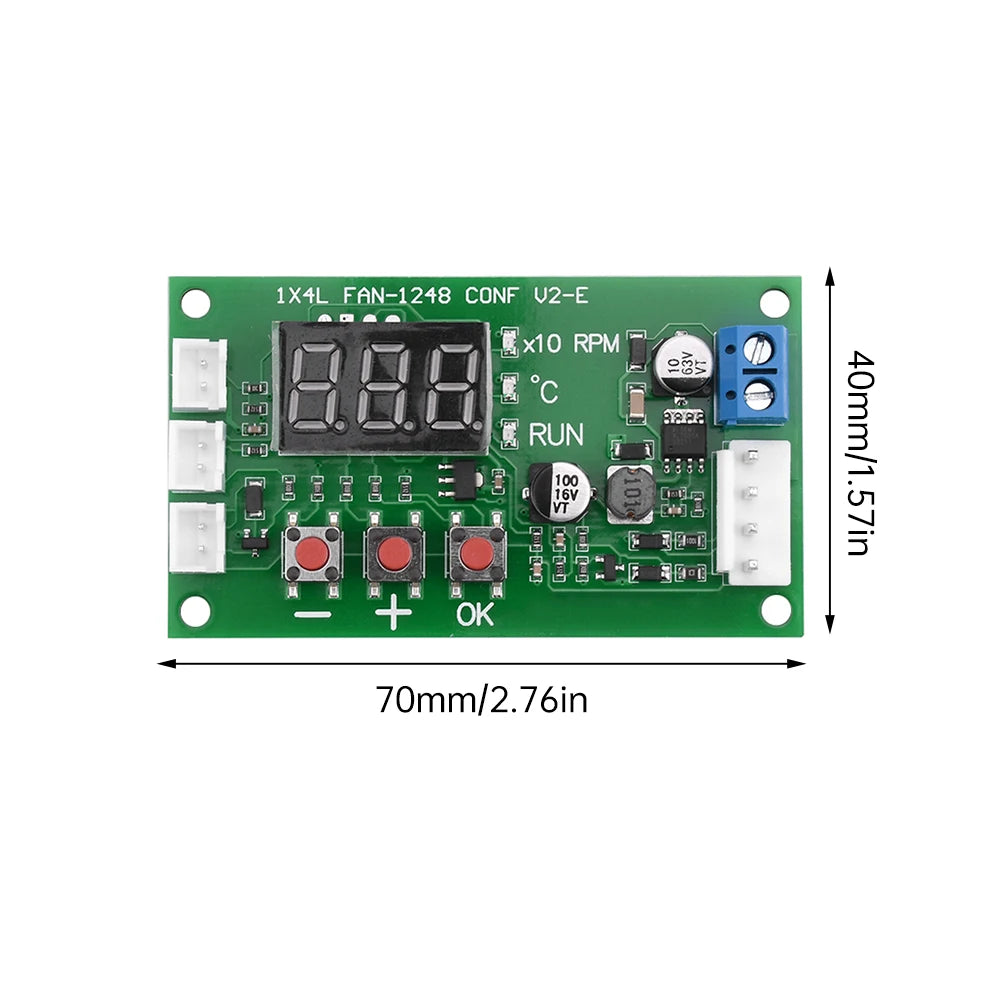

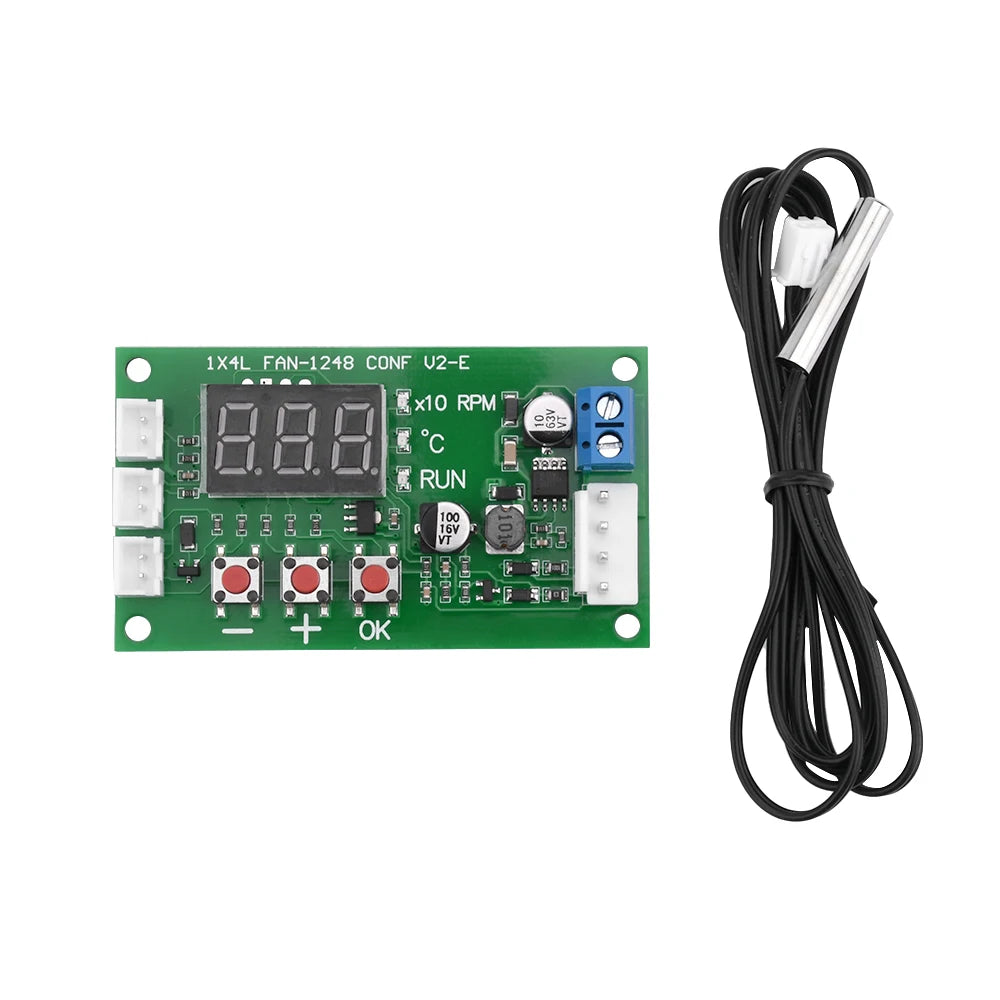

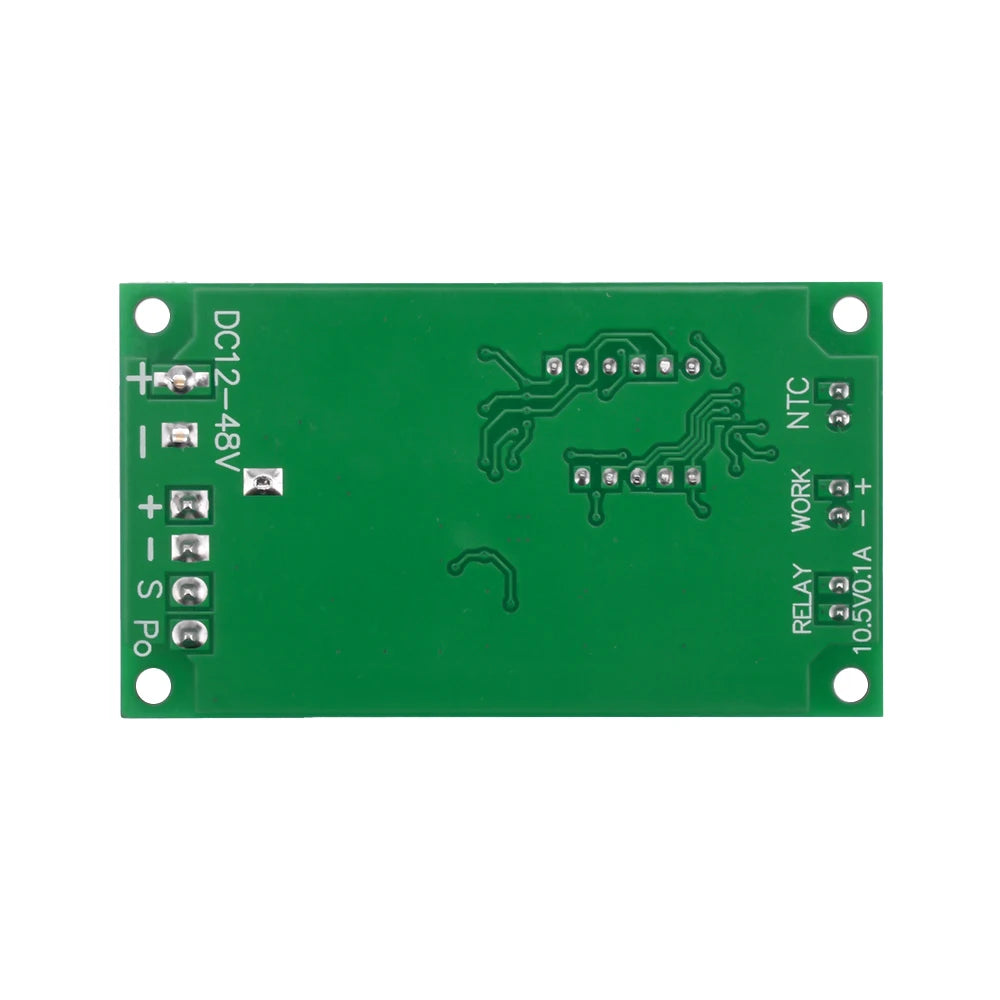

- 4-Wire PWM Fan Speed Controller Module × 1

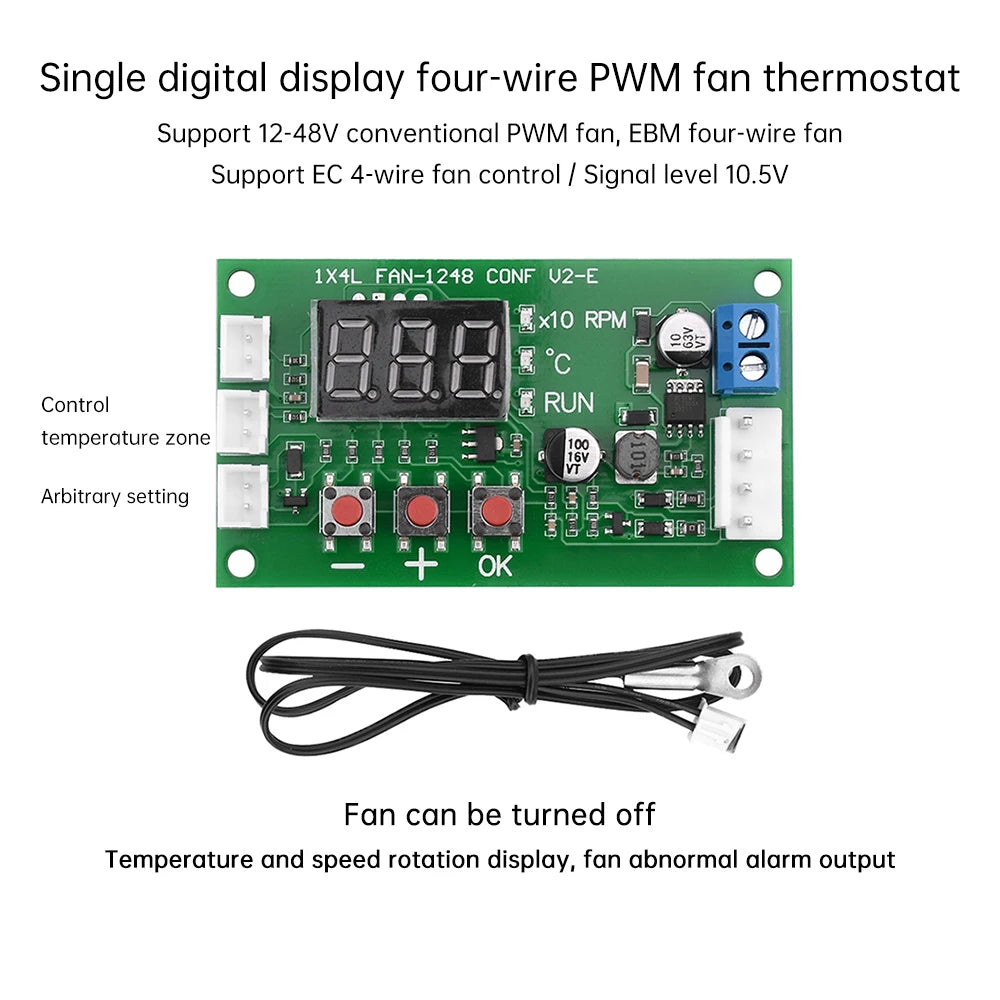

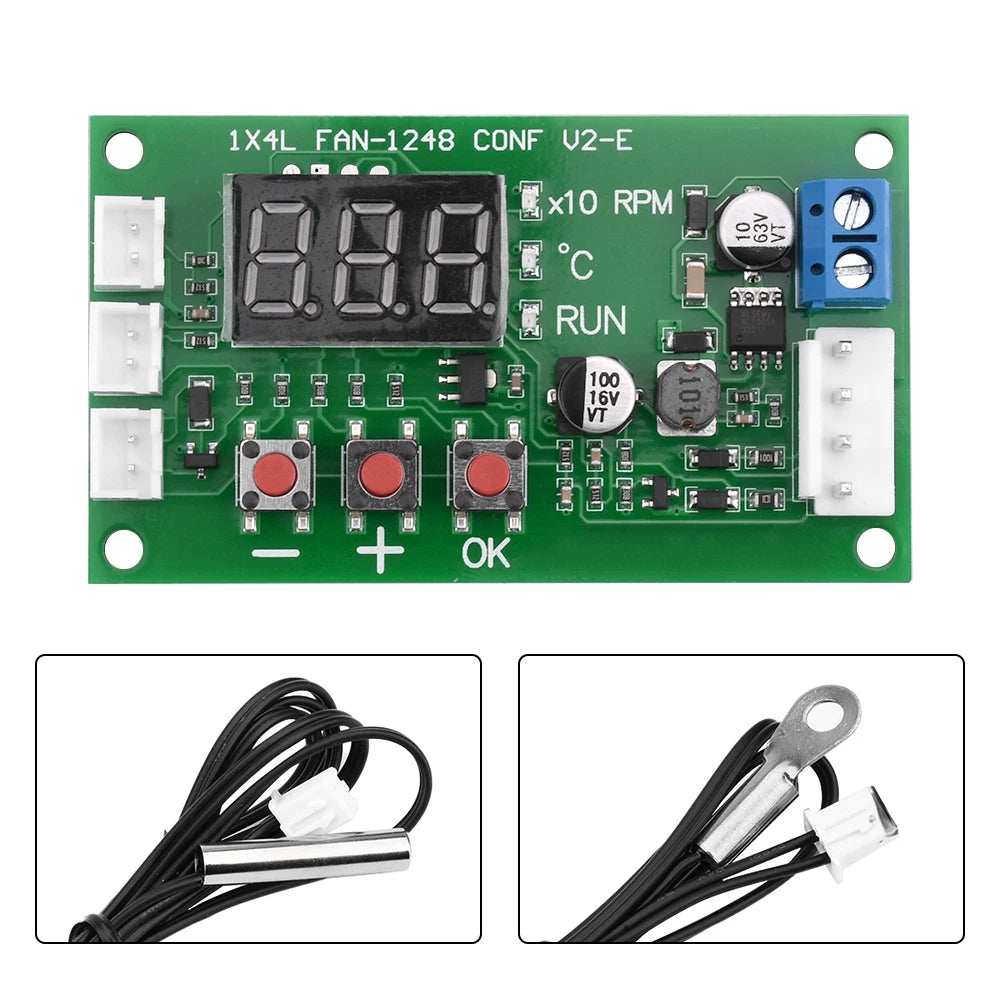

- Probe Cable × 1 (style optional)
