PWM Pulse Signal Generator – Wide Frequency Range & Adjustable Duty Cycle
Take full control of your electronics projects with this compact, high-performance PWM Pulse Signal Generator. Covering a frequency range of 10Hz to 150kHz with a fully adjustable duty cycle from 0% to 100% (in 1% increments), this module is an essential tool for motor speed control, microcontroller development, and precision signal generation. Made in Mainland China.
Key Features
- Wide Frequency Range: Adjustable from 10Hz up to 150kHz to suit a broad variety of applications.

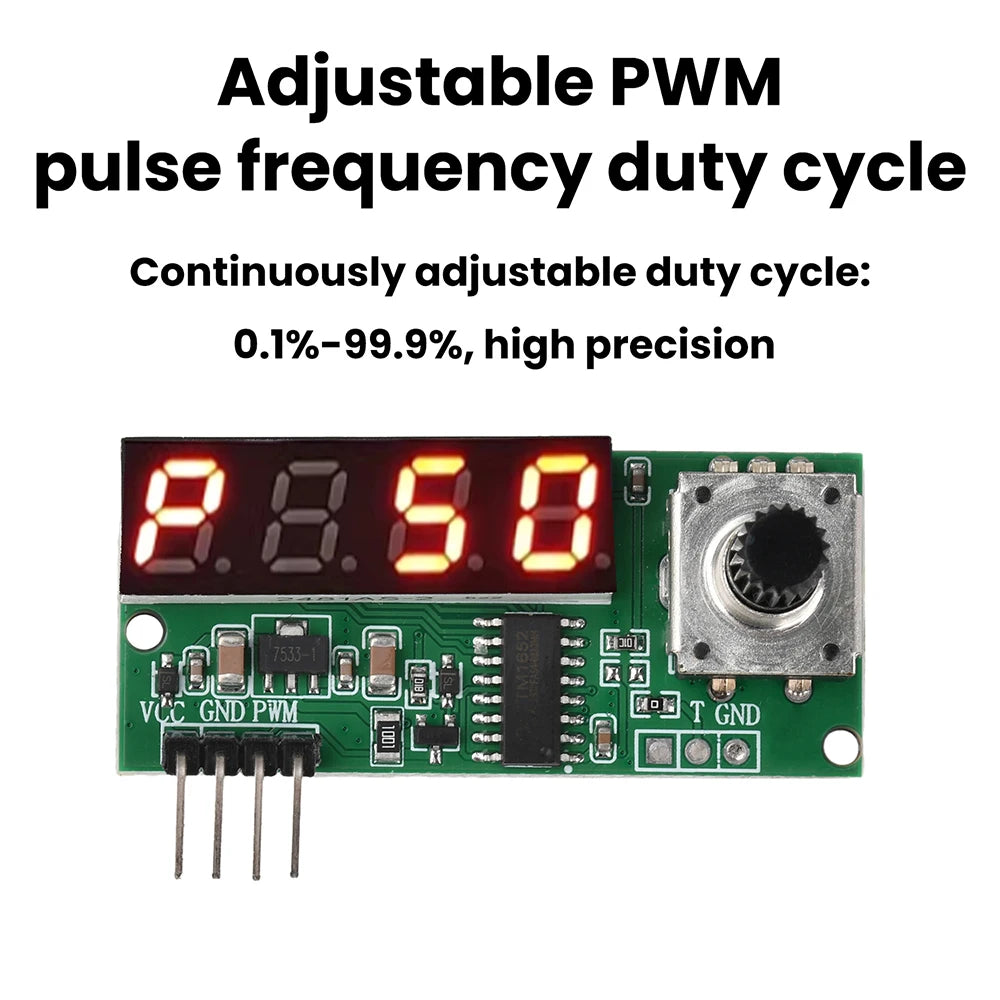

- Precise Duty Cycle Control: Set your duty cycle anywhere from 0% to 100% in 1% steps, with PWM limits configurable from 0%–70% (lower) and 50%–100% (upper).

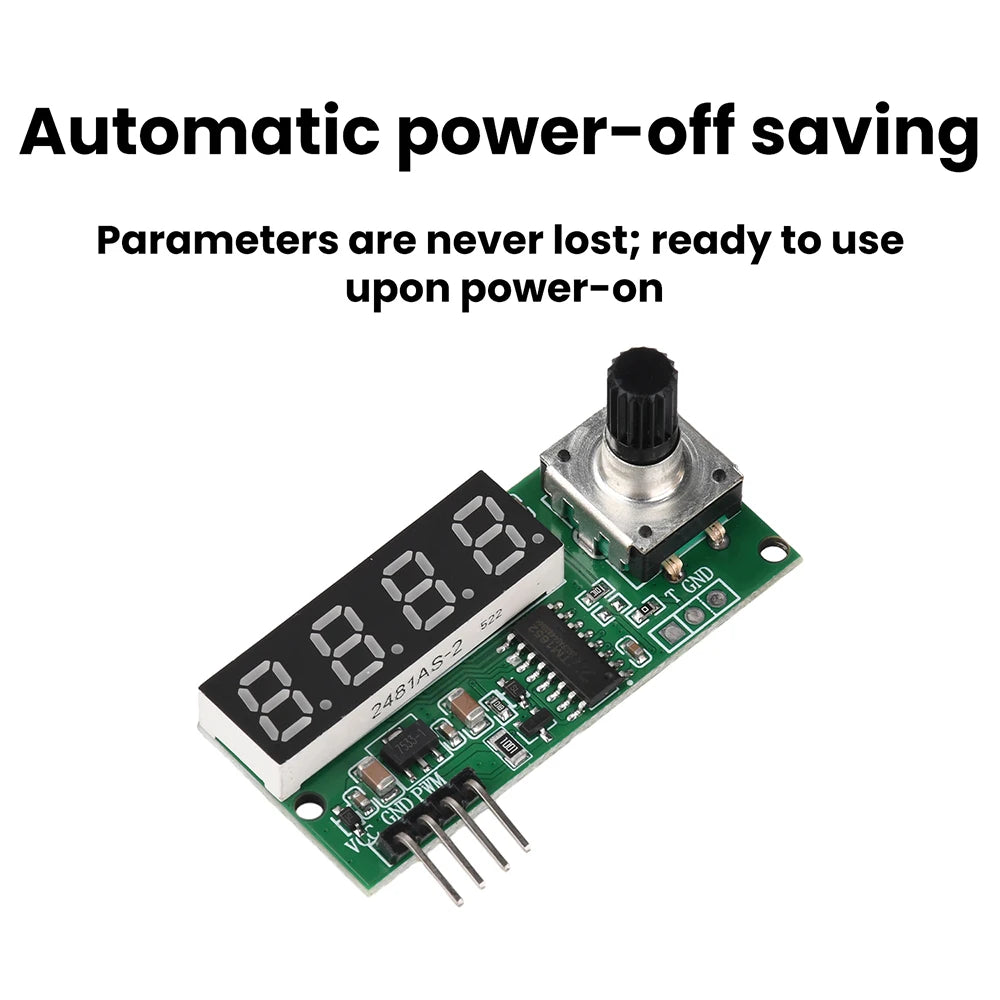

- Power-Off Memory: Settings are automatically saved the moment you configure them — no need to re-enter values after every power cycle. Just power up and go.
- High-Definition Digital Display: Real-time readout of both frequency and duty cycle for instant, at-a-glance monitoring.
- Encoder Adjustment: Smooth, tactile rotary encoder input for precise and intuitive tuning.
- Wide Operating Voltage: Compatible with systems ranging from 3.3V to 30V, making it versatile across a wide range of platforms.
- Low Power Consumption: Draws only 20mA operating current — efficient enough for battery-powered or embedded setups.

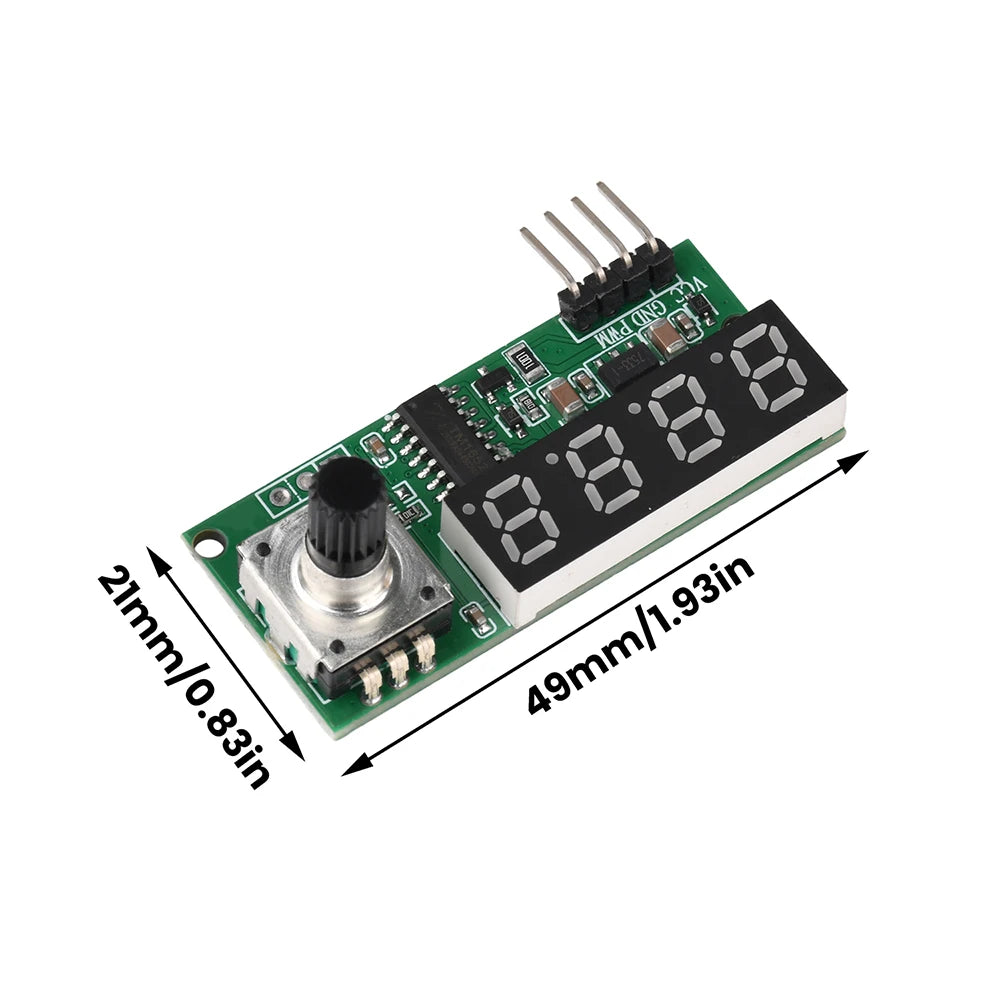

- Compact & Portable: Palm-sized form factor, ideal for bench use, field testing, and embedded development environments.
Technical Specifications
| Operating Voltage | 3.3V – 30V |
| Operating Current | 20mA |
| Frequency Range | 10Hz – 150kHz |
| Duty Cycle | 0% – 100% (1% increments) |
| PWM Lower Limit | 0% – 70% |
| PWM Upper Limit | 50% – 100% |
| Adjustment Method | Rotary Encoder |
| Package Type | TQFP Module |
| Condition | New |
Ideal Applications
- DC motor speed control
- Microcontroller and embedded system development
- LED dimming and lighting control
- Signal generation for testing and prototyping
- Fan speed regulation
- Servo and stepper motor drive circuits
Package Contents
- 1 × PWM Pulse Signal Generator Module
