Build Your Own FM Radio – The Ultimate DIY Soldering Kit

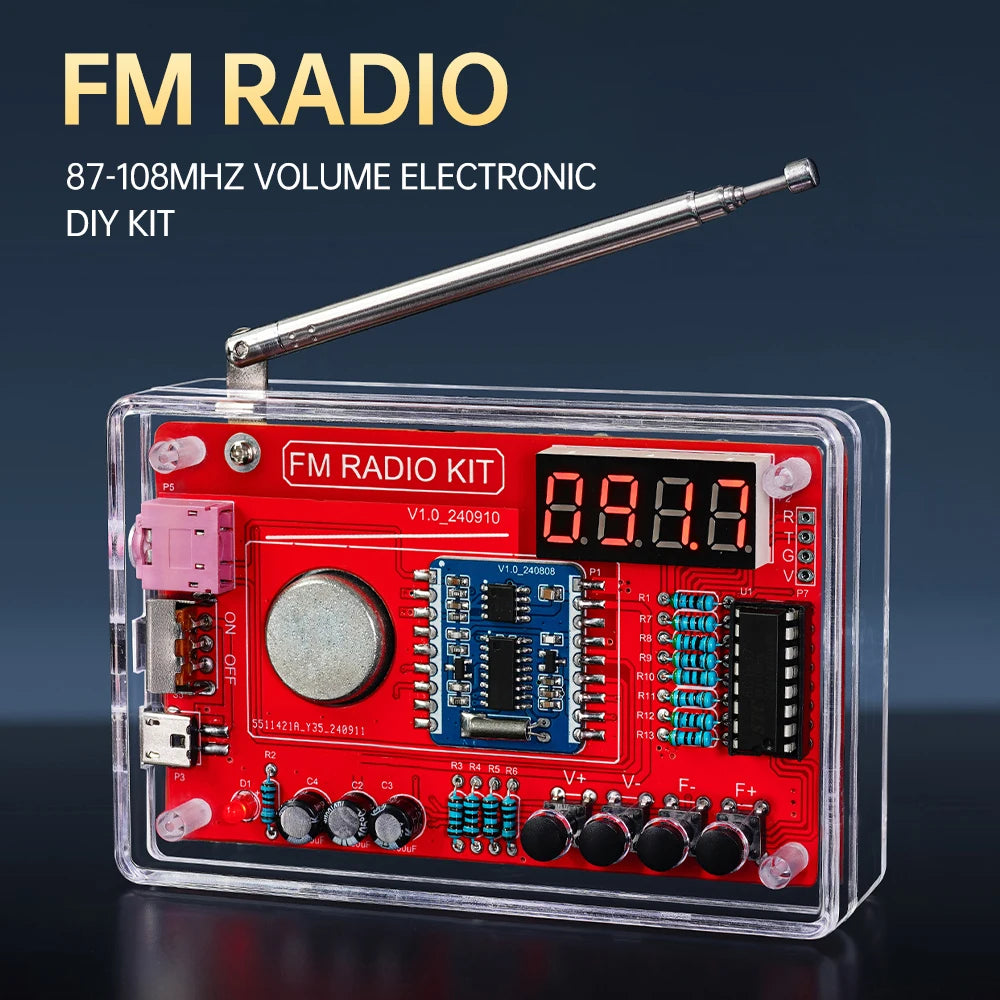

The RDA5807 FM Radio DIY Soldering Kit is the perfect hands-on electronics project for students, educators, and hobbyists alike. Covering the full 87–108MHz FM frequency range, this kit walks you through real-world circuit assembly — from soldering individual components onto a PCB to tuning in your favorite stations. Whether you're introducing a classroom to electronics or leveling up your own DIY skills, this kit delivers an engaging, rewarding build experience.
Made in Mainland China.
Key Features

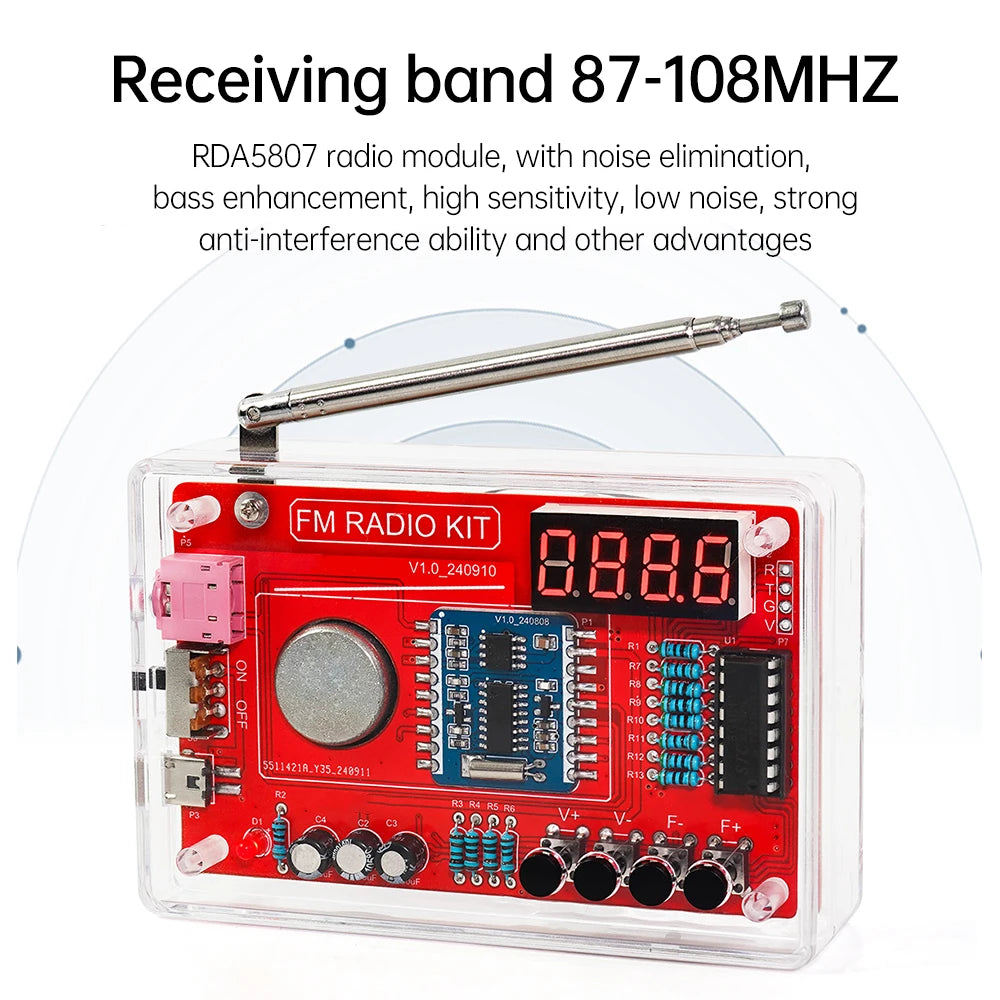

- RDA5807 Radio Module: Features built-in noise cancellation, bass enhancement, high sensitivity, low noise output, and strong anti-interference for crisp, clear FM reception.
- Superior Sound Quality: Pairs with a 4Ω 3W speaker (included in kit components) for full, rich audio playback.

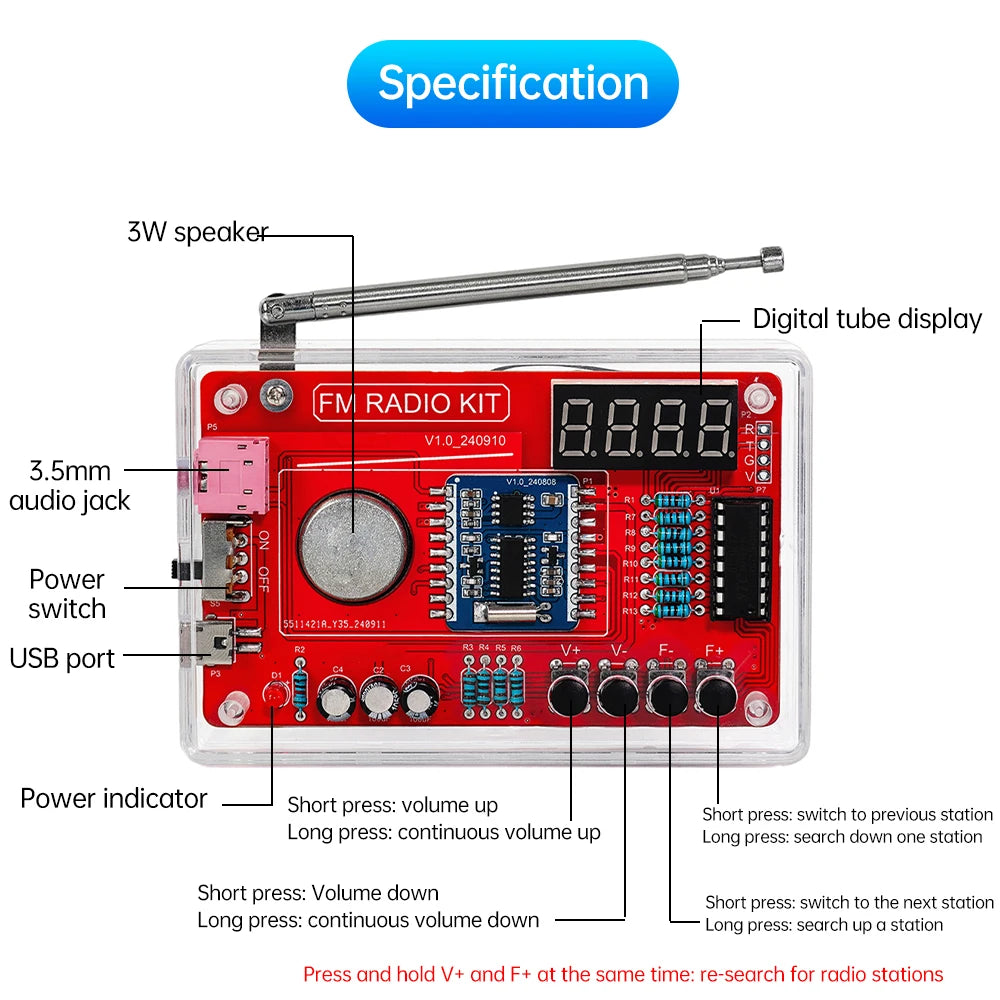

- Intuitive Button Controls: Easily switch channels, adjust volume (15 levels), clear all presets, and trigger auto-scan/preset storage with dedicated buttons.
- Power-Off Memory: Remembers your saved stations even after the unit is powered off — no need to rescan every time.
- Auto Station Search & Preset Storage: Automatically scans and stores available FM stations for quick access.
- LED Status Indicator: Clearly shows operational status at a glance.

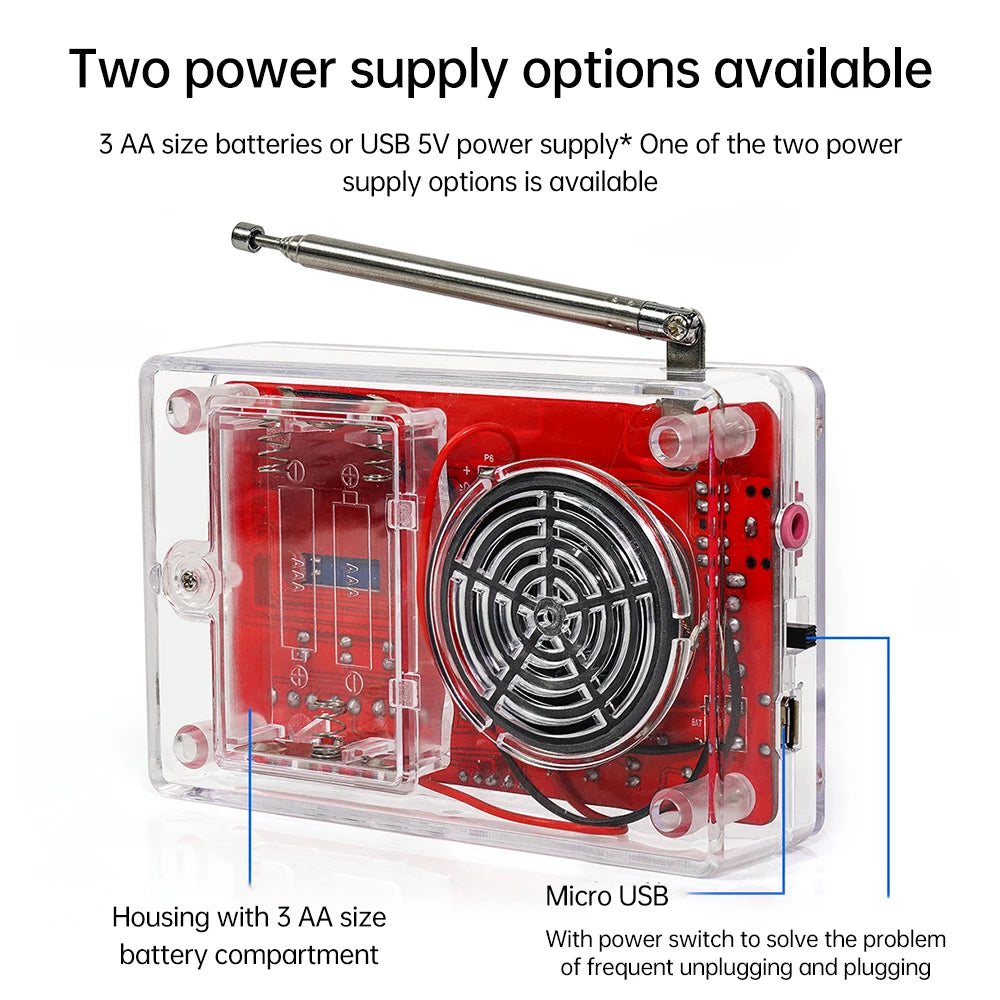

- Flexible Power Options: Runs on 3 × AA batteries or USB 5V power — choose whichever suits your setup.

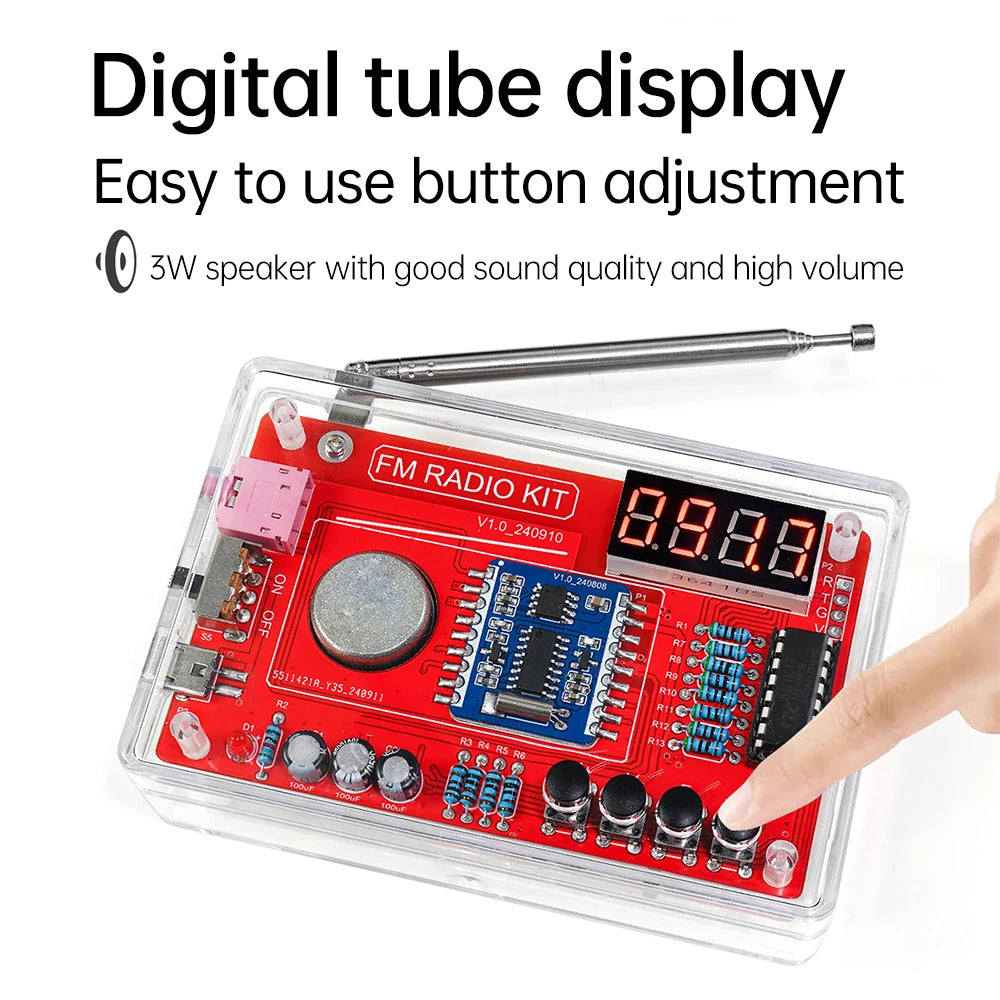

- Two Variants Available: Standard version or Display version with a visual frequency readout.
- Low Power Consumption: Efficient design keeps operating current at approximately 400mA at maximum volume.
- Compact PCB: Measures 95.5 × 59mm — clean and manageable even for beginners.
Product Specifications
| Kit Name | RDA5807 Radio Construction Kit |
| Variants | Standard / Display Version (optional) |
| Frequency Range | 87–108MHz |
| Power Supply | 3 × AA batteries or USB 5V |
| Max Operating Current | ~400mA (at maximum volume) |
| PCB Dimensions | 95.5 × 59mm |
| Package Type | TQFP Module |
| Condition | New |
What's in the Box

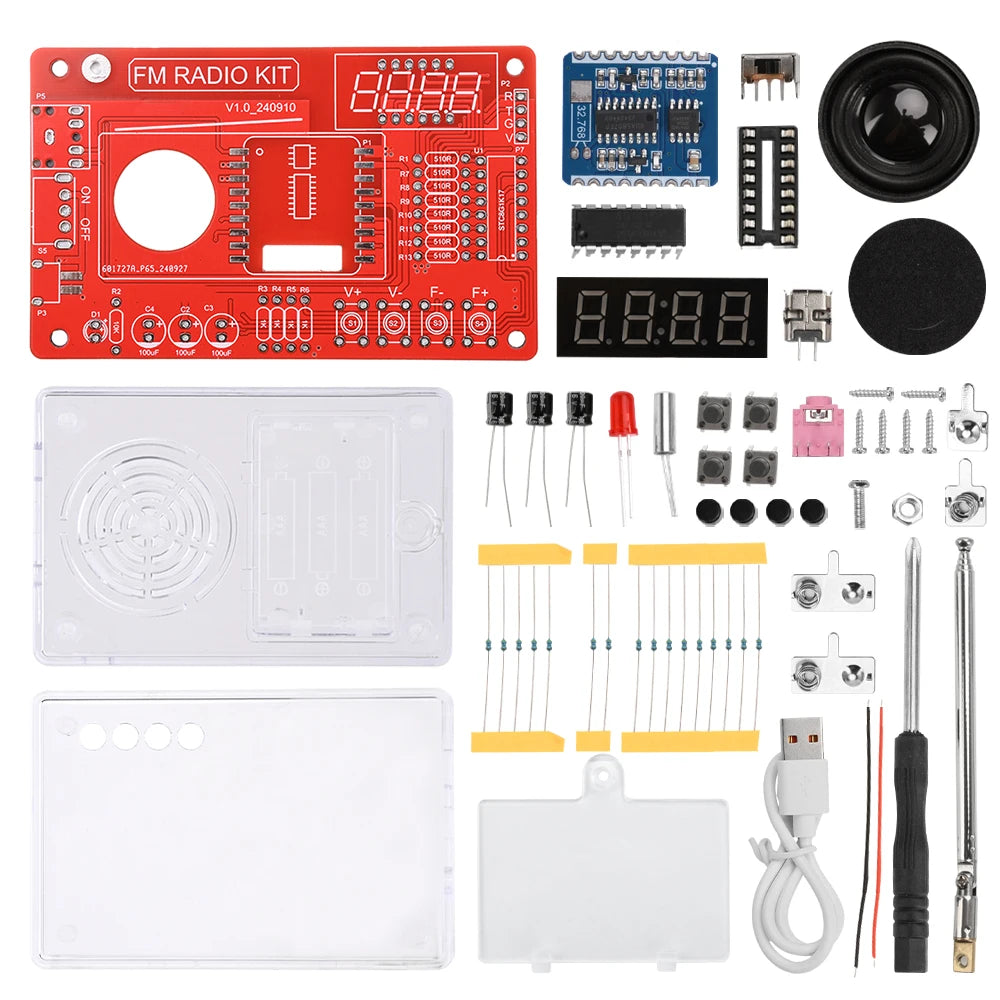

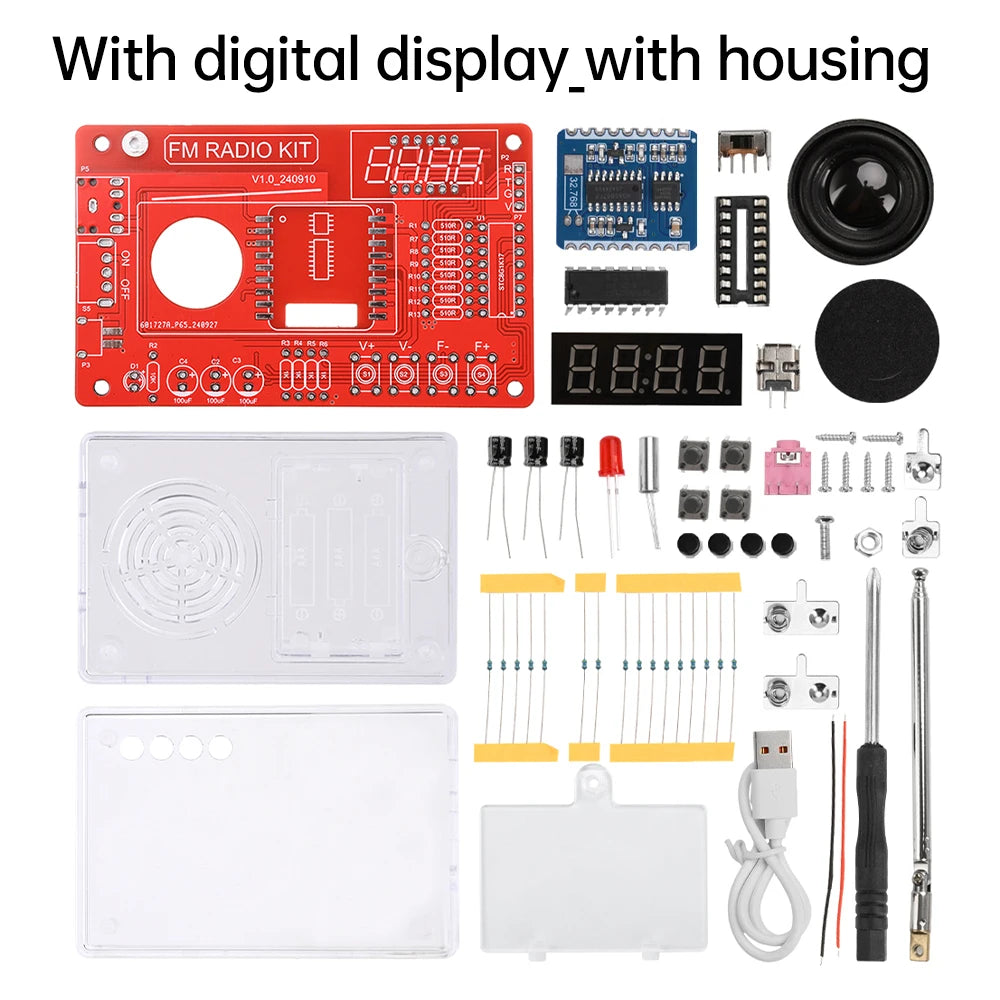

- 1 × RDA5807 FM Radio DIY Kit (all components)
Note: DIY assembly requires soldering. Soldering iron and tools must be provided by the user.
Perfect For
- School electronics and STEM classes
- Soldering practice and skill-building
- Electronics hobbyists and makers
- Science fair and engineering projects
- Gift for curious minds and DIY enthusiasts
You Might Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts — great for organizing small electronic components and kit parts.
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm — another popular tool for hands-on DIY projects.
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set — expand your DIY toolkit with precision craft tools.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this RDA5807 FM Radio DIY kit suitable for beginners with no soldering experience?
A: Yes! The kit is designed with simple, easy-to-follow assembly in mind, making it ideal for beginners in school settings or anyone new to soldering. The components are clearly labeled on the PCB, and the straightforward layout makes it a great first soldering project. You will need to supply your own soldering iron and solder.
Q: What power source does the RDA5807 FM Radio DIY kit use?
A: The kit supports two power options: 3 × AA batteries for portable, wire-free use, or a USB 5V power supply for desk use. You can choose whichever option best fits your needs.
Q: What is the difference between the Standard and Display versions of this kit?
A: The Standard version offers all core FM radio functionality with button controls and an LED status indicator. The Display version adds a visual frequency display screen so you can see the exact FM frequency you are tuned to. Both versions cover the full 87–108MHz FM range.
Q: Does the RDA5807 FM Radio DIY kit come fully assembled?
A: No — this is a DIY soldering kit, meaning all components are included unassembled. Part of the value and fun is building it yourself! Soldering tools such as a soldering iron, solder wire, and helping hands are not included and must be provided by the builder.
