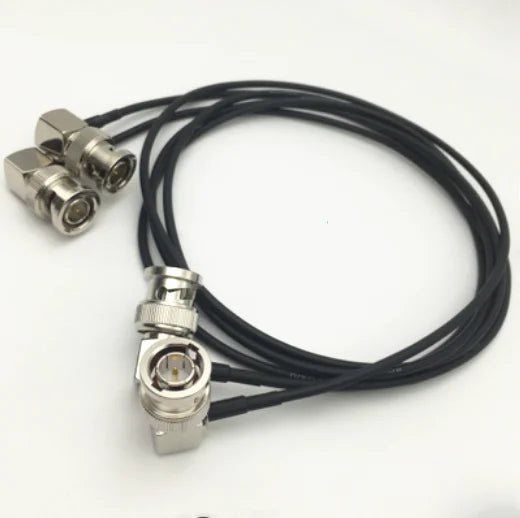

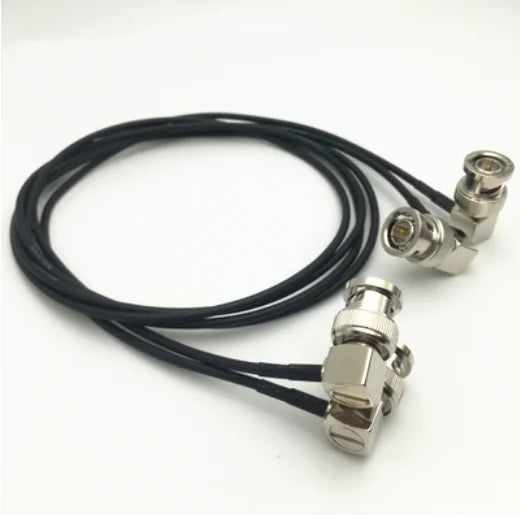

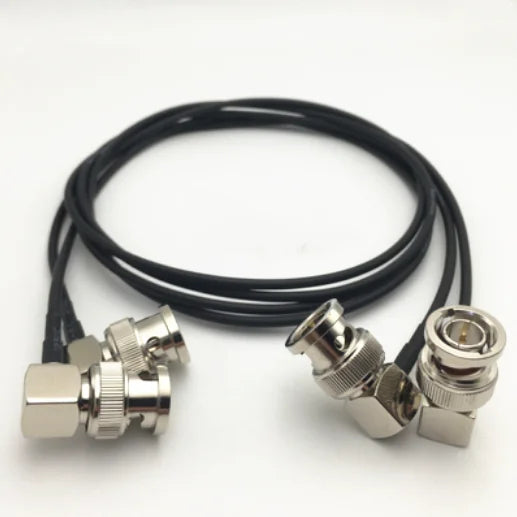

RG174 BNC Male to BNC Male Right Angle 90° Cable — 75 Ohm HD-SDI
Route video signals cleanly in tight spaces with this RG174 right-angle BNC cable. Featuring dual 75 Ohm BNC male connectors — one straight, one at a precise 90° right angle — this compact cable is purpose-built for HD-SDI video cameras, monitors, and broadcast equipment where a straight run simply won't fit. The stranded copper center conductor ensures reliable signal integrity across a range of lengths.
Key Features
- Cable Type: RG174 coaxial cable
- Connectors: BNC Male (75 Ohm) on both ends — one right-angle (90°), one straight
- Impedance: 75 Ohm — optimized for HD-SDI video signal transmission
- Center Conductor: Stranded copper for flexible, durable routing
- Available Lengths: 10 cm, 20 cm, 30 cm, 50 cm, 100 cm — or fully custom
- Application: HD-SDI cameras, video monitors, broadcast switchers, CCTV systems
- No assembly required — ready to use straight out of the box
- Custom orders welcome — contact us for custom lengths or connector configurations
Specifications
| Cable Type | RG174 |
| Connector Type | BNC Male to BNC Male |
| Connector Angle | 90° Right Angle |
| Impedance | 75 Ohm |
| Center Conductor | Stranded Copper |
| Available Lengths | 10 cm / 20 cm / 30 cm / 50 cm / 100 cm / Custom |
| Assembly Required | No |
| Country of Origin | Made in China |
Why Choose a Right-Angle BNC Cable?
Standard straight BNC cables can be bulky and difficult to manage when connecting to rear-panel ports in rack-mounted equipment or tight camera housings. A 90-degree right-angle connector keeps your cable run neat, reduces stress on the connector port, and helps maintain a tidy, professional setup — whether in a broadcast studio, security installation, or field production rig.
Custom Length & Configuration
Need a specific length or a different connector combination? We can customize cables to your exact specifications. Simply reach out via the store contact form with your requirements.
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
- Ceramic Mini Sealed Storage Jar – Portable Travel Container
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What equipment is this RG174 right-angle BNC cable compatible with?
A: This cable is designed for use with HD-SDI video cameras, monitors, broadcast switchers, CCTV systems, and any equipment using standard 75 Ohm BNC connectors. The right-angle connector makes it ideal for tight spaces and rear-panel connections.
Q: Can I order a custom cable length not listed here?
A: Yes! Custom lengths and connector configurations are available. Please contact us through the store with your requirements and we'll be happy to assist.
Q: What is the difference between 50 Ohm and 75 Ohm BNC connectors?
A: 75 Ohm BNC connectors are the industry standard for video signal transmission (HD-SDI, composite video, etc.), while 50 Ohm connectors are typically used in RF and data applications. This cable is 75 Ohm, making it the correct choice for video equipment.
Q: Does this cable require any assembly?
A: No assembly is required. The cable arrives fully assembled with connectors already attached and ready to use.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
