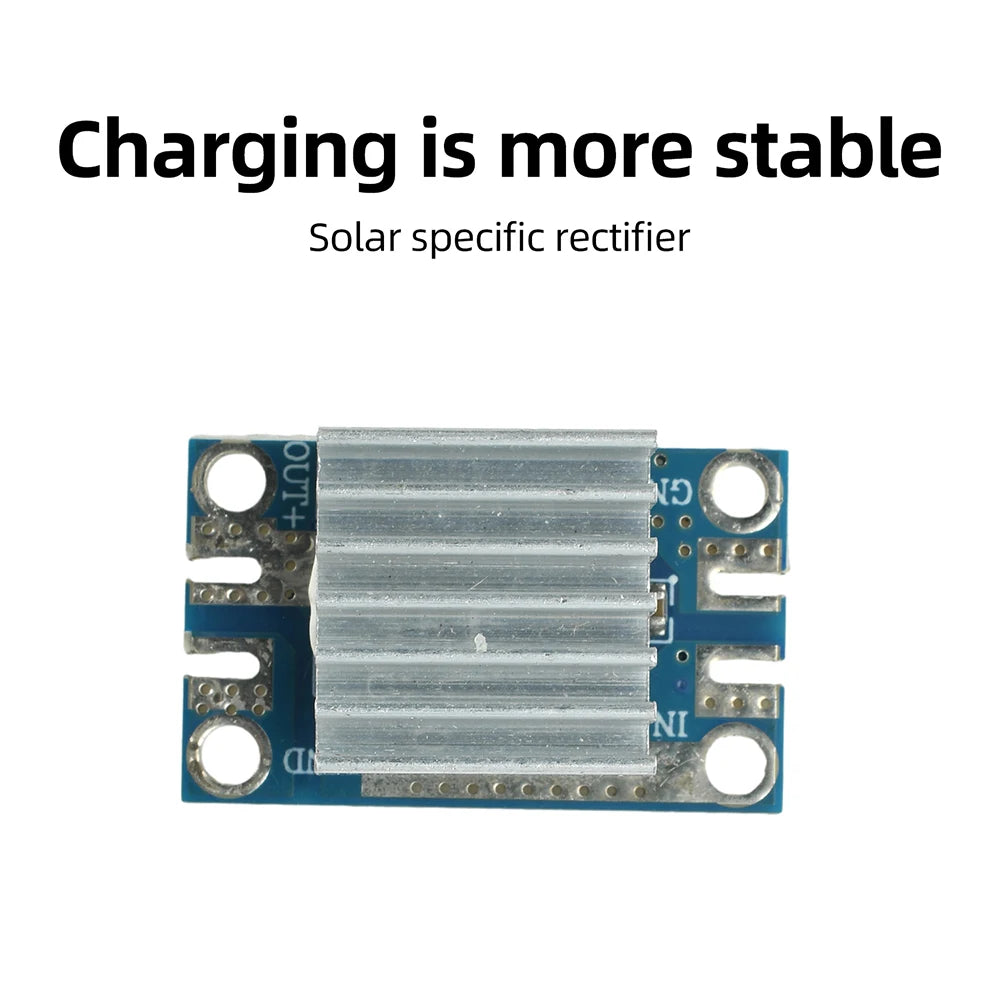

High-Current Ideal Diode Module for Solar & Battery Systems

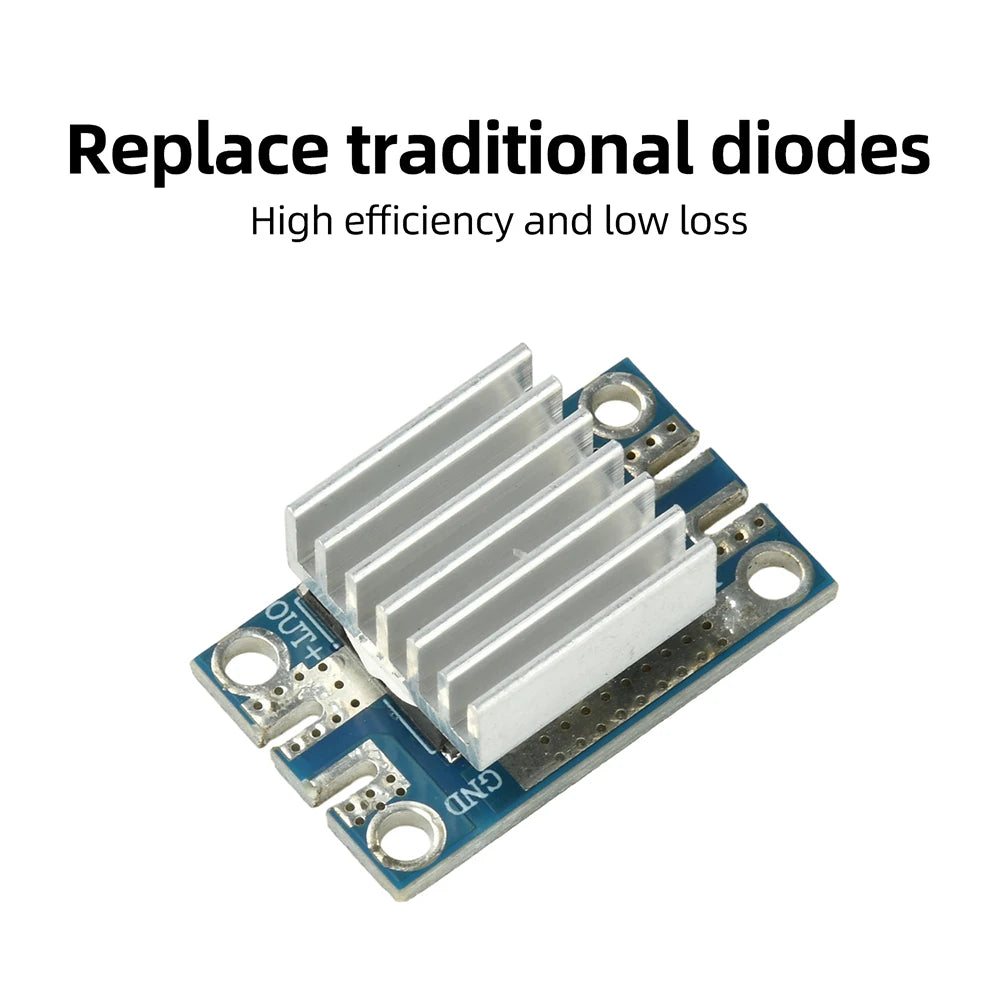

The Gaqqee Solar Backflow Prevention Diode Module is an advanced ideal diode rectifier designed for solar panels, battery backup systems, UPS units, drones, and dual-power-supply applications. Available in 20A, 50A, and 70A variants across wide voltage ranges (DC 3.5–60V or DC 4–90V), this module replaces traditional Schottky or PN junction diodes with an ultra-low on-resistance MOSFET-based solution — delivering minimal voltage drop, low heat generation, and built-in reverse polarity protection. Made in Mainland China.
Key Features
- Wide Voltage & Current Support: DC 3.5–60V (20A) or DC 4–90V (20A / 50A / 70A) — select the model that fits your system.
- Ultra-Low On-Resistance: As low as 0.75mΩ (70A model), drastically reducing conduction losses compared to conventional diodes.
- Backflow & Reverse Polarity Protection: Automatically blocks reverse current and will not burn out if connected in reverse — protecting your circuits from damage.
- Low Quiescent Current: Only 300μA standby draw — ideal for always-on solar and battery applications.
- Wide Operating Temperature: Rated from -40°C to +125°C for reliable performance in demanding environments.
- Switching Frequency up to 150Hz: Suitable for DC solar charging and battery management; not intended for AC rectification.

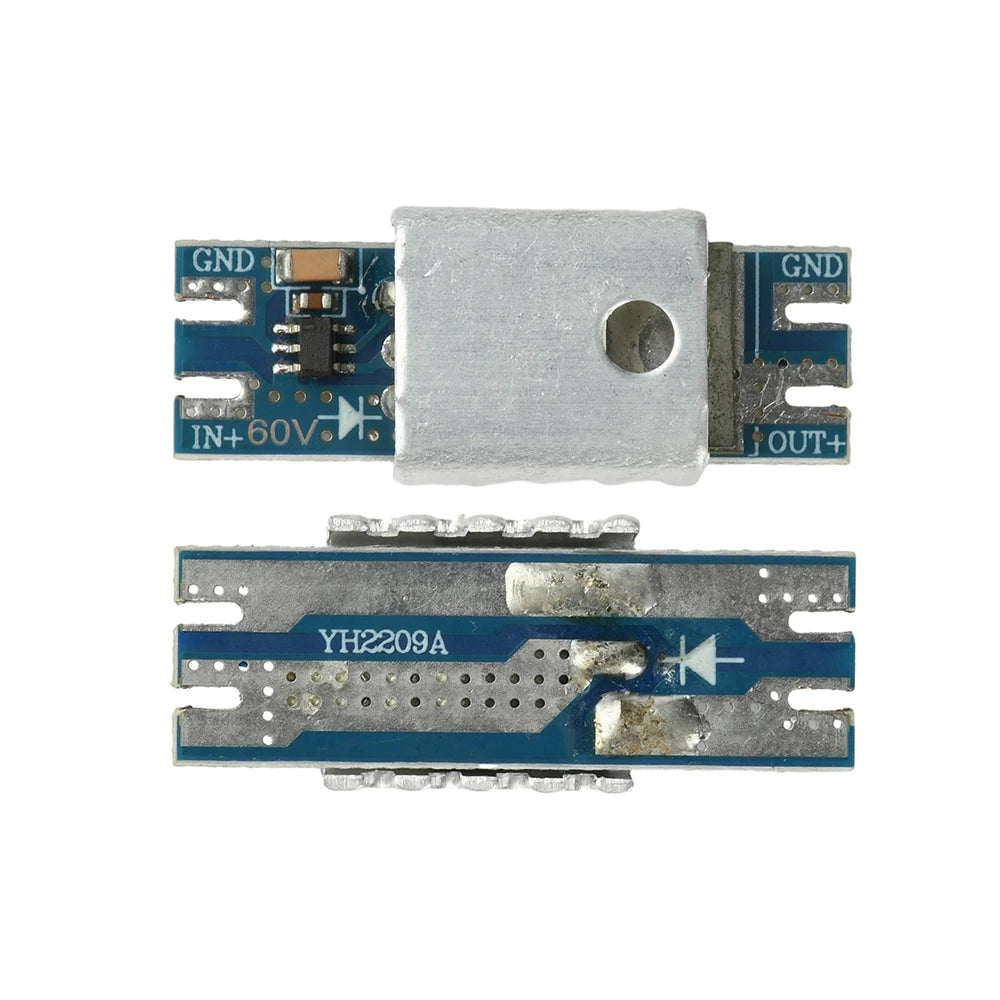

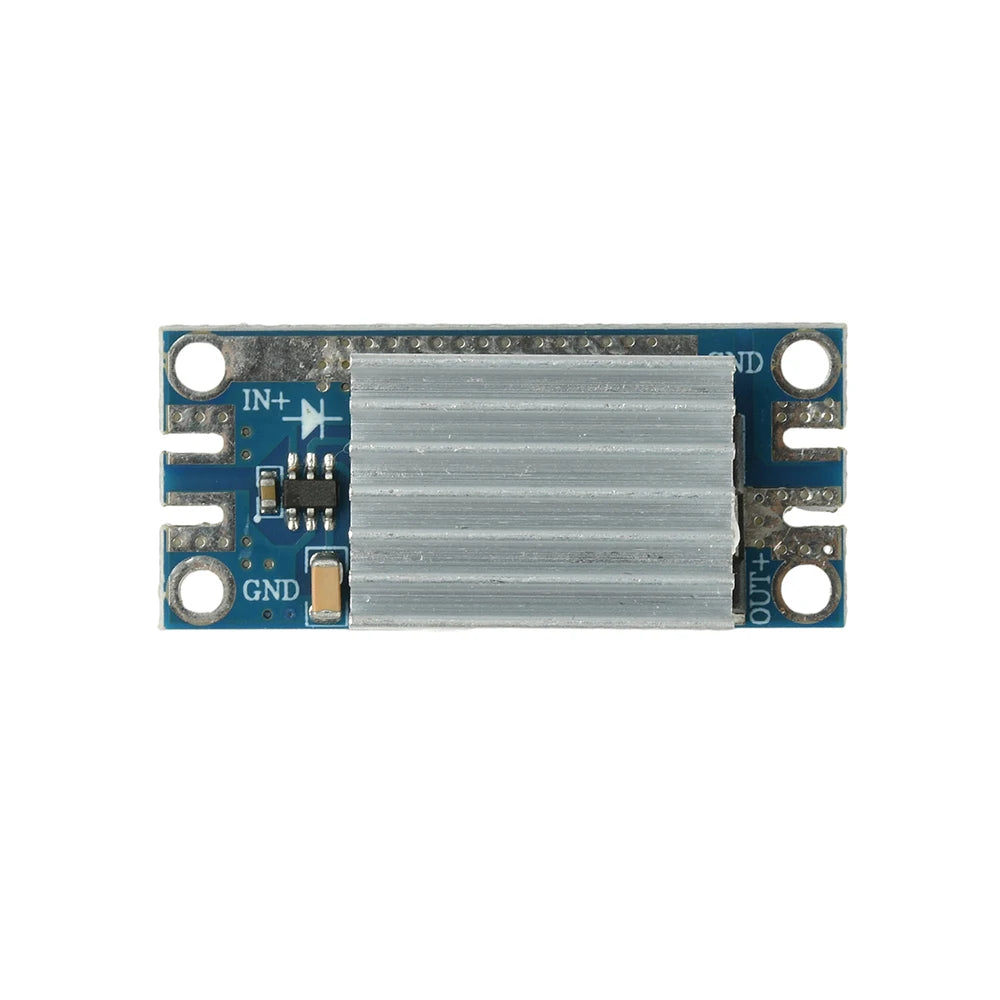

- Simple Drop-In Wiring: Directly replaces reverse-connection protection diodes with straightforward terminal connections.
- Expandable: Multiple modules can be connected in parallel to increase total current capacity or add additional channels.
Full Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | DC 3.5–60V / DC 4–90V (Optional) |
| Operating Current Options | 20A, 50A, 70A |
| Quiescent Current | 300μA |
| On-Resistance (3.5–60V, 20A) | 4.6mΩ |
| On-Resistance (4–90V, 20A) | 3.6mΩ |
| On-Resistance (4–90V, 50A) | 1.5mΩ |
| On-Resistance (4–90V, 70A) | 0.75mΩ |
| Switching Frequency | Up to 150Hz |
| Reverse Polarity Protection | Yes |
| Operating Temperature | -40°C to +125°C |
| Package | TQFP Module |

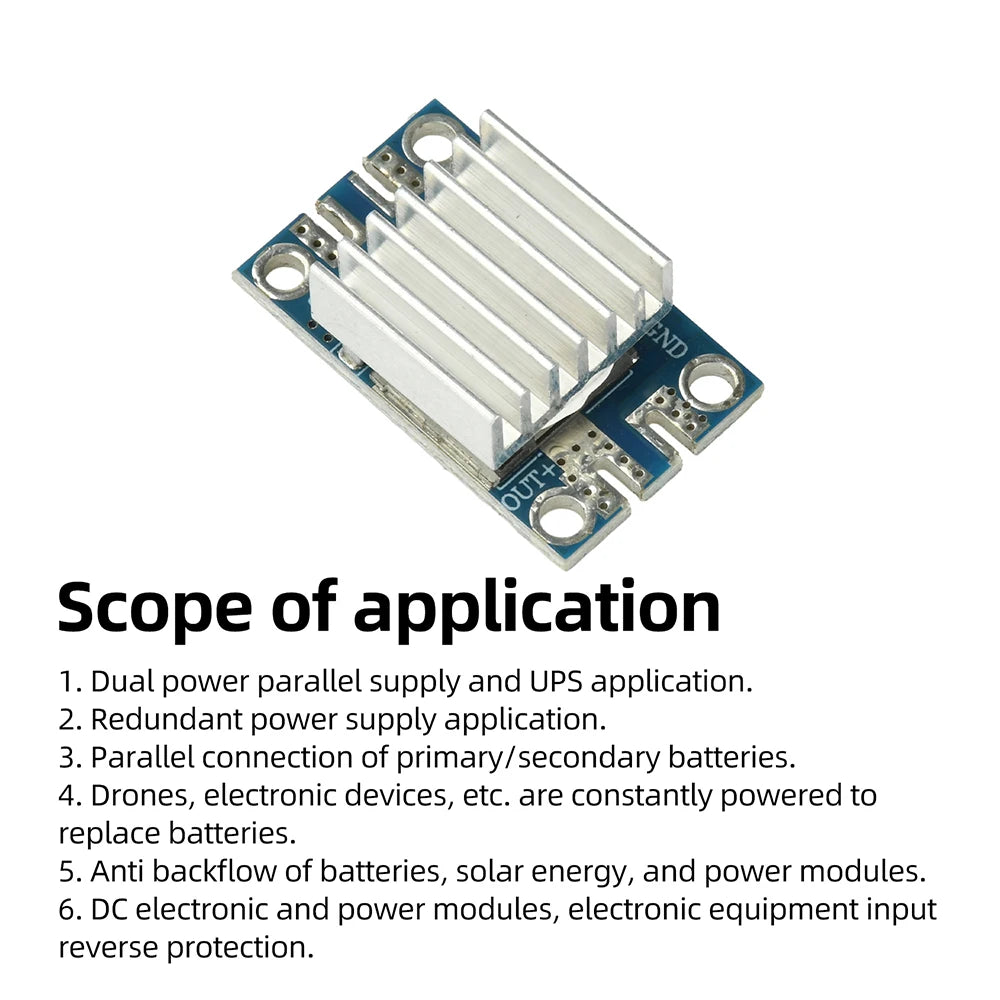

Typical Applications
- Solar panel backflow and back-feed protection
- Dual or redundant power supply parallel configurations
- UPS (Uninterruptible Power Supply) systems
- Primary and secondary battery parallel connection
- Hot-swap battery replacement in drones and portable electronics
- Reverse polarity protection for DC power modules and electronic device inputs
Important Usage Notes
- For DC applications only; switching frequency must not exceed 150Hz — not suitable for AC rectification.

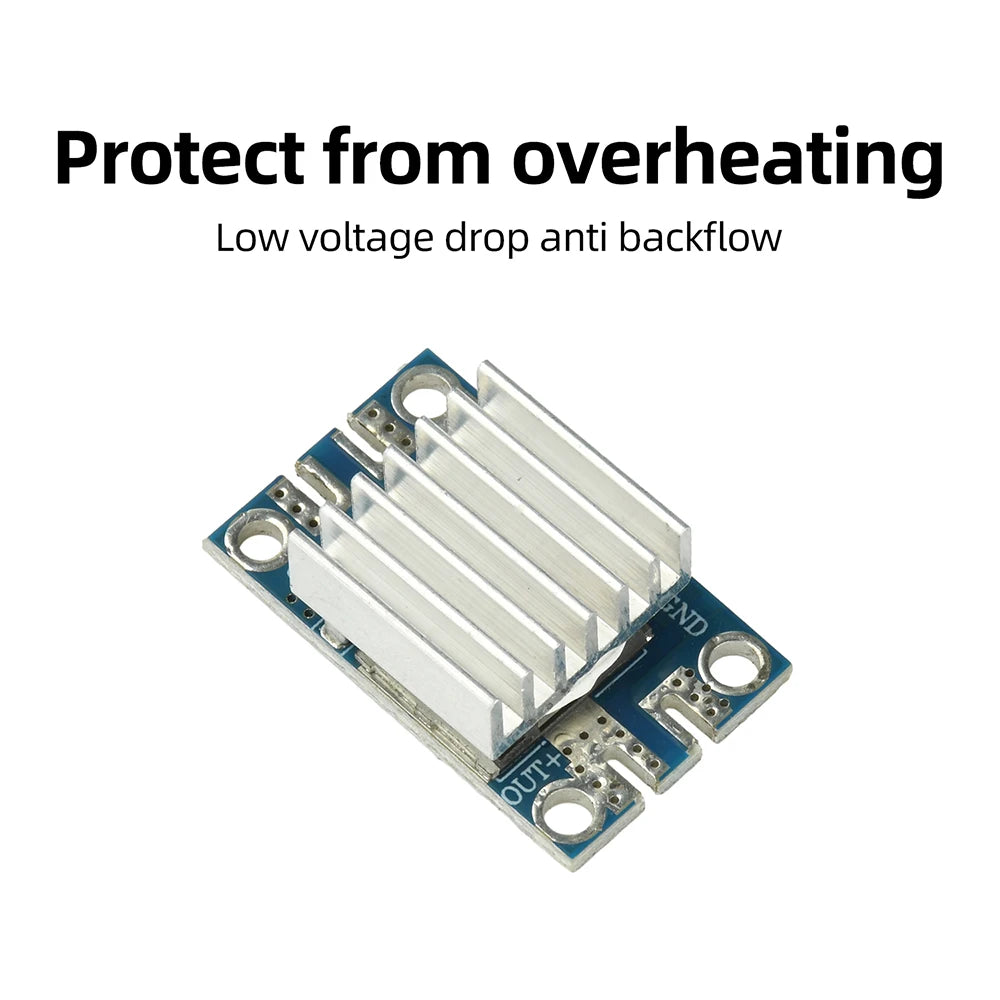

- Enhanced heat dissipation (larger heatsink or forced-air cooling) is required at higher operating currents (above 15A for 20A models; above 20–30A for 50A/70A models).
- Install TVS diodes and electrolytic capacitors at input/output to absorb surge voltages in high-voltage or inductive-load environments.
- Do not use a multimeter's diode or resistance range to measure internal resistance — calculate from measured voltage drop and current instead.
- The negative terminal of the main current circuit may bypass the module, but the module's negative terminal must remain connected.
