SUS304 Stainless Steel Linear Floor Drain – Tile Insert Grille

Upgrade your bathroom, kitchen, or laundry room with this sleek rectangular linear floor drain. Crafted from solid SUS304 stainless steel with a brushed finish, it delivers lasting durability, odor resistance, and a low-profile look that blends seamlessly with any tile layout.

Key Features

  • SUS304 Stainless Steel Body: Premium-grade stainless steel with smooth edge treatment and fine grinding ensures a neat, comfortable underfoot finish. Built for long-term use in high-moisture environments including bathrooms, kitchens, laundry rooms, and shower spaces.
  • Wide-Area Drainage: The elongated linear design provides a larger water collection surface than a standard round drain, helping water flow away faster and keeping floors cleaner after every use.
  • Two-Layer Filter System: A built-in double-layer filter combined with a U-shaped water storage structure helps prevent backflow and unpleasant odors from rising through the pipe, keeping your space fresh and functional.
  • Easy-Clean Removable Cover: The unique perforated grille panel lifts out easily for quick access to the inner channel — making routine maintenance fast and hassle-free.

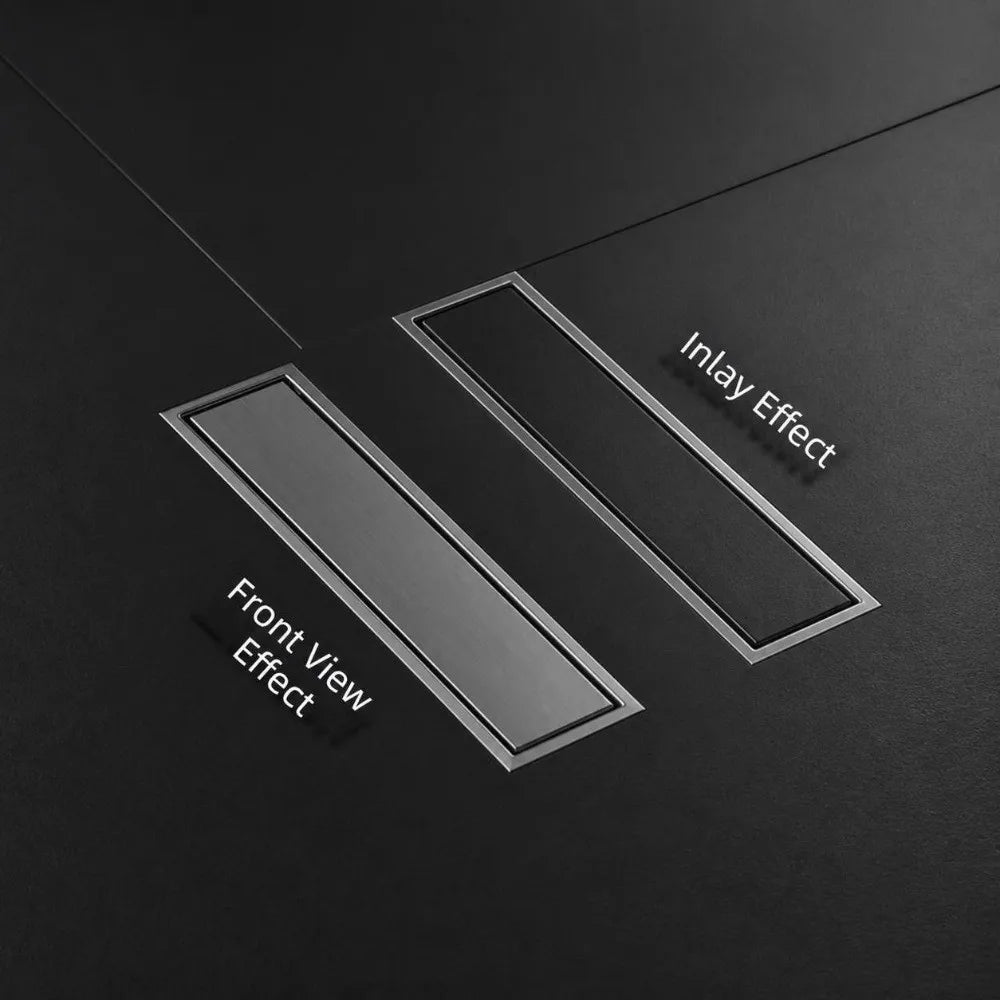

  • Low-Profile Tile Insert Design: The rectangular, low-profile form factor is designed to sit flush with your tile surface, creating a hidden, minimalist look that suits modern and classic interiors alike.

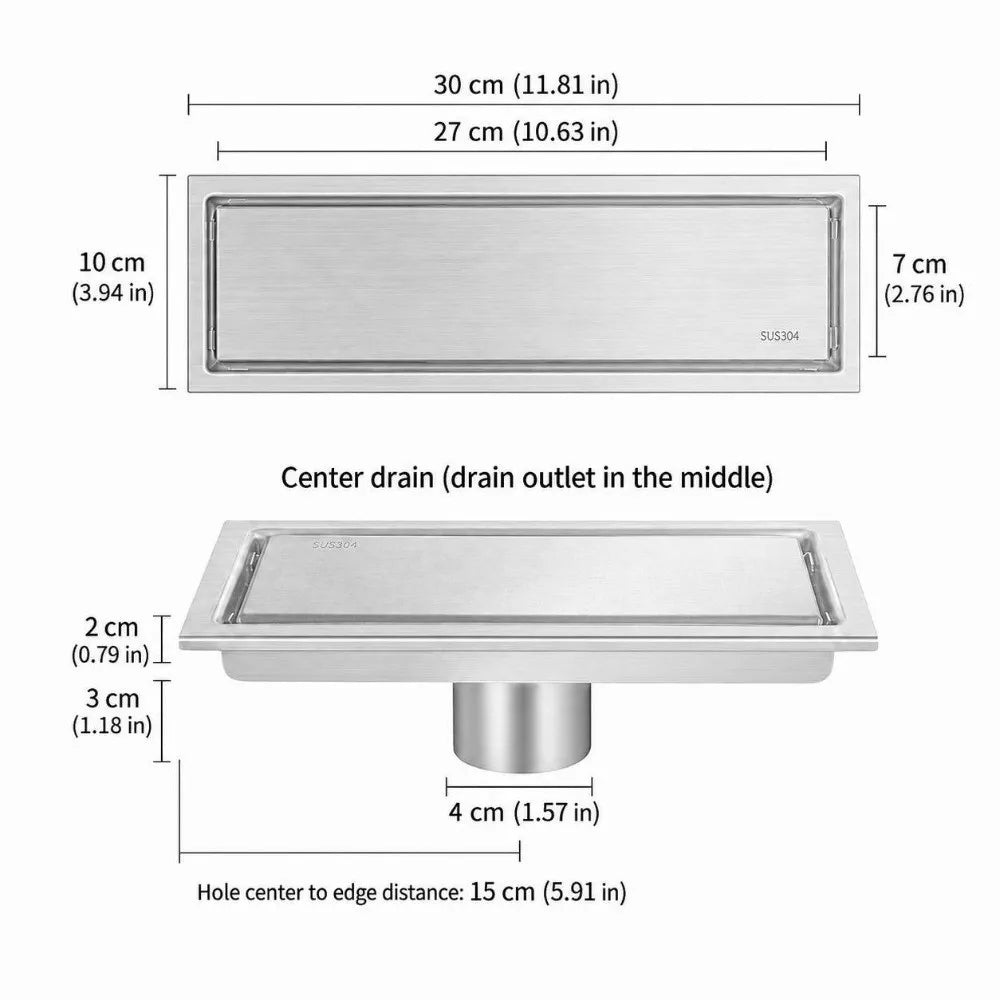

Specifications

Material SUS304 Stainless Steel
Surface Treatment Brushed Finish
Color Silver
Outer Size Approx. 300 × 100 mm / 11.81 × 3.94 in
Inner Panel Size Approx. 270 × 70 mm / 10.63 × 2.76 in
Panel Thickness Approx. 20 mm / 0.79 in
Body Height Approx. 30 mm / 1.18 in
Installation Depth ≥ 60 mm / 2.36 in
Applicable Pipe Diameter 50 / 75 mm (1.97 / 2.95 in)
Outlet Diameter Approx. 40 mm / 1.57 in
Center of Outlet to Edge Approx. 150 mm / 5.91 in
Gross Weight Approx. 600 g / 21.16 oz
Drain Method Gravity Flushing
Country of Origin Made in China

What's in the Box

  • 1 × Linear Floor Drain (grille + body)

Perfect For

  • Walk-in showers and wet rooms
  • Bathroom and kitchen floors
  • Laundry rooms and utility spaces
  • New builds and renovation projects

You Might Also Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What pipe diameter is compatible with this linear floor drain?

A: This linear floor drain is compatible with standard pipe diameters of 50 mm (1.97 in) and 75 mm (2.95 in), making it suitable for most residential plumbing setups in bathrooms, kitchens, and laundry rooms.

Q: How does the two-layer filter system help with odor prevention?

A: The double-layer filter works alongside a U-shaped water storage structure that retains a small amount of water in the channel. This water barrier blocks sewer gases and unpleasant odors from traveling back up through the pipe into your living space.

Q: Is the grille cover easy to remove for cleaning?

A: Yes — the grille panel is designed to lift out without tools, giving you direct access to the inner drainage channel for quick and simple routine cleaning and maintenance.

Q: Can this floor drain be used with tile inserts for a hidden look?

A: Absolutely. The tile insert grille design allows you to cut and lay tile directly onto the cover panel, so the drain sits flush and nearly invisible within your floor surface — ideal for modern, minimalist bathroom and shower designs.
