2.8" TFT Lossless Audio Decoder Board | Bluetooth 5.3 & I2S
2.8" TFT Lossless Audio Decoder Board | Bluetooth 5.3 & I2S

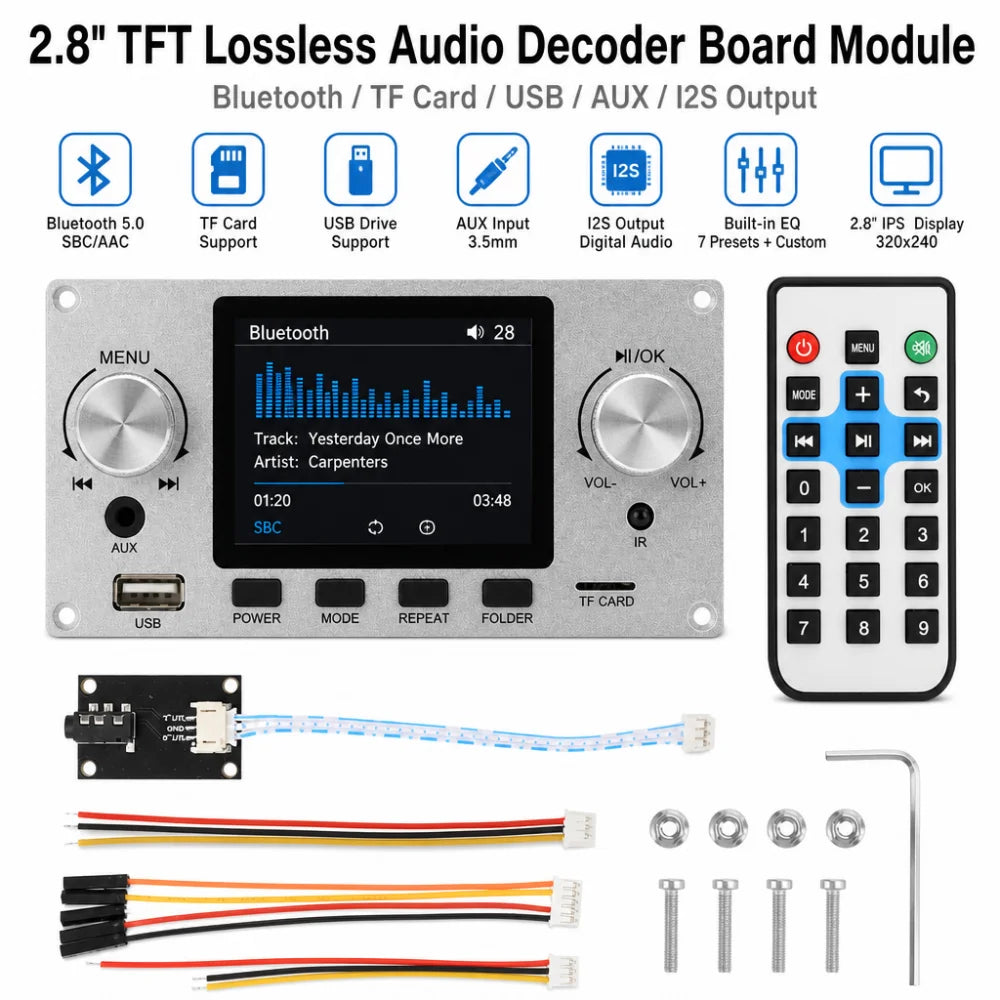

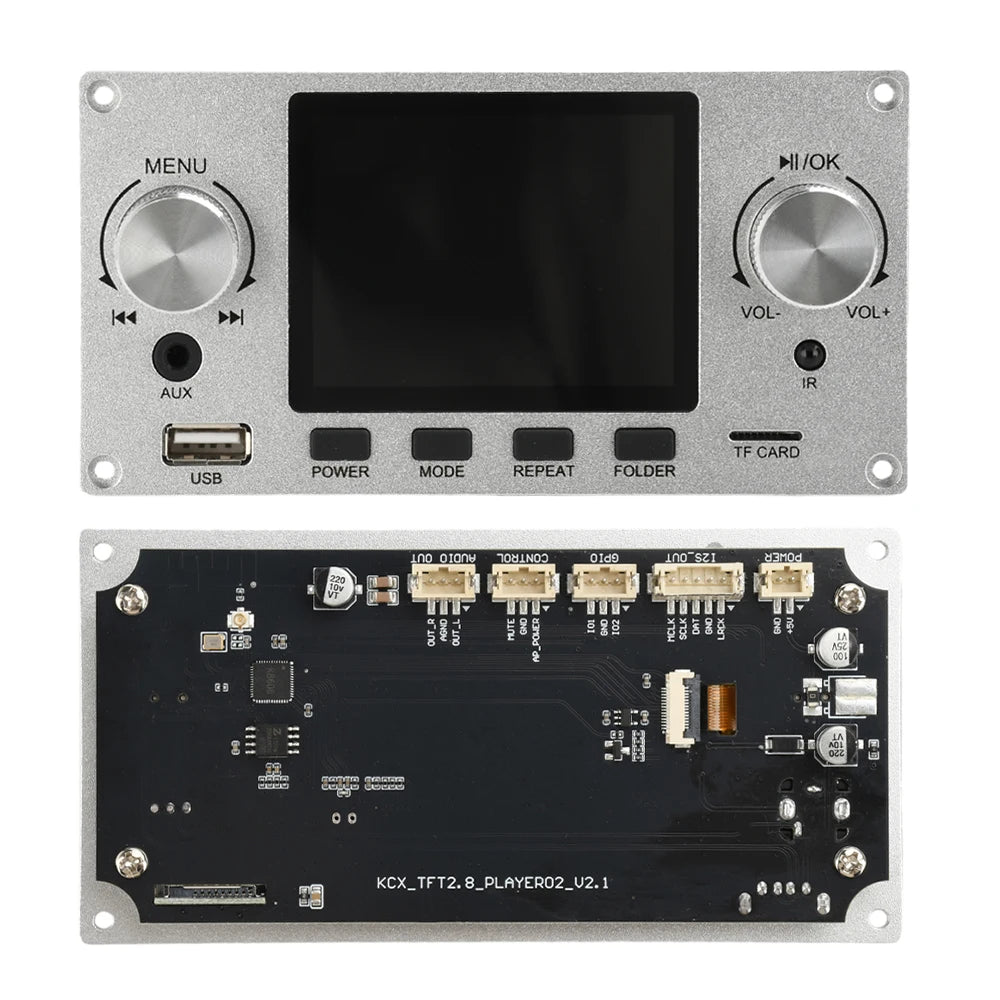

Gaqqee 2.8-Inch TFT Lossless Audio Decoding Board Module
Upgrade your audio setup with this feature-packed hi-fi stereo audio decoder board from Gaqqee. Combining Bluetooth 5.3 wireless streaming, TF card and USB drive playback, USB sound card functionality, and LINE input — all displayed on a vivid 2.8-inch IPS colour screen — this module is the ultimate all-in-one audio decoding solution for DIY speaker builds, amplifier projects, and home audio systems.
Key Features

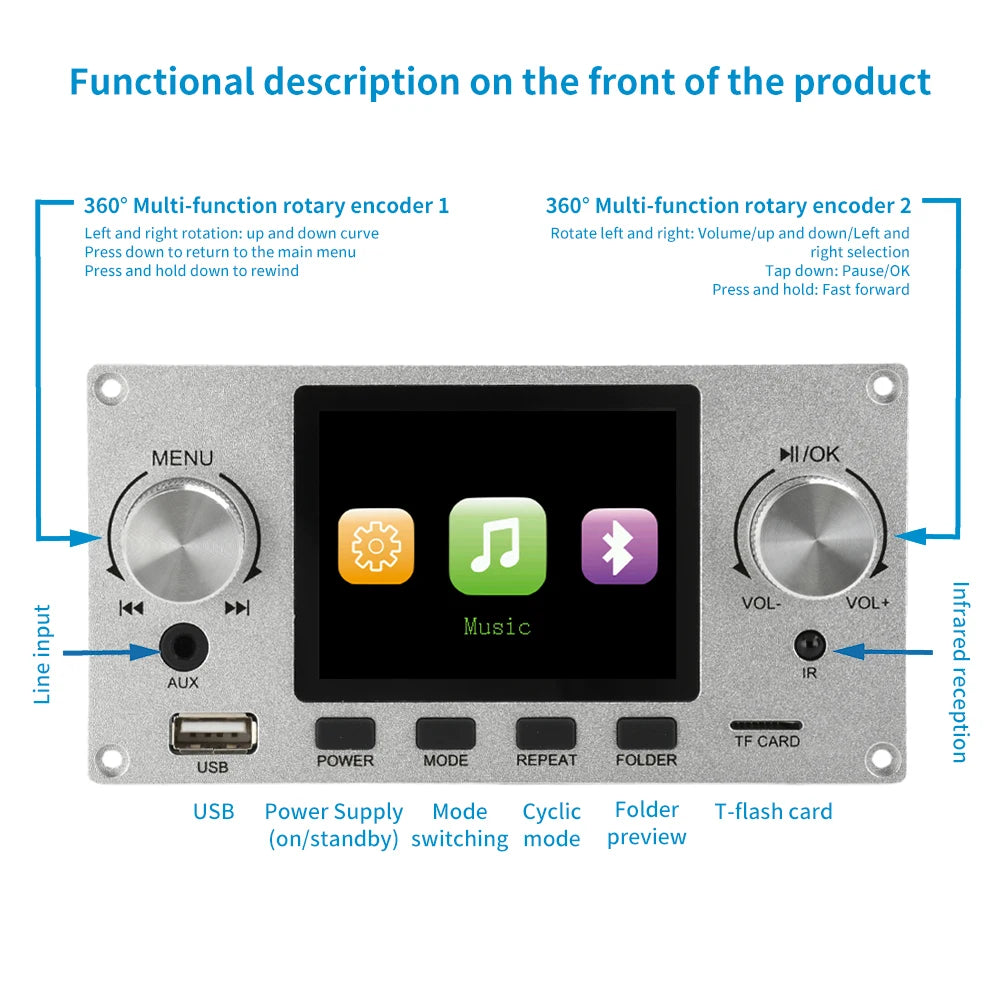

- Multifunctional Audio Decoding: Supports Bluetooth audio streaming, TF card music playback, USB drive playback, USB PC sound card mode, and 3.5mm LINE input — all in one compact module.
- 2.8-Inch IPS Colour Display (320×240): Clearly shows playback status, track titles, Bluetooth lyrics, ID3 metadata, and a real-time spectrum visualiser for an engaging listening experience.
- 24-Bit DAC with High SNR: Delivers audiophile-grade audio quality with a 24-bit hardware DAC, SNR ≥104dB, and an audio output level of ≤2.8Vp-p — bringing out the finest details in your music.
- Dual Output Modes – Analogue & Digital I2S: Supports both a standard analogue stereo output and an I2S digital audio output, giving you flexible integration with a wide range of amplifier and DAC configurations.
- Bluetooth 5.3 with SBC/AAC Support: Enjoy wireless music streaming from phones, tablets, and computers up to ~10 metres away with low-latency Bluetooth V5.3 (BR+EDR).
- Built-In Equaliser: Choose from 7 preset EQ scenes or create your own custom EQ profile to perfectly match your speakers and listening preferences.
- Wide Voltage Range: Operates on DC 5–12V (regulated supply required), making it easy to integrate into a wide range of project power setups.
- Multilingual Display: Supports Simplified Chinese, Traditional Chinese, and English on-screen display.
Technical Specifications
| Screen | 2.8-inch 320×240 IPS Colour Display |
| Operating Voltage | DC 5–12V (regulated power supply required) |
| Standby Current | 20mA |
| Operating Current | 30–180mA |
| Audio Output Power | ≤50mW |
| Signal-to-Noise Ratio | SNR ≥104dB |
| DAC Bit Width | 24-bit |
| Audio Channels | 2-Channel (Dual / Stereo) |
| Bluetooth Version | V5.3 + BR + EDR |
| Bluetooth Range | ~10 metres |
| Bluetooth Codecs | SBC / AAC |

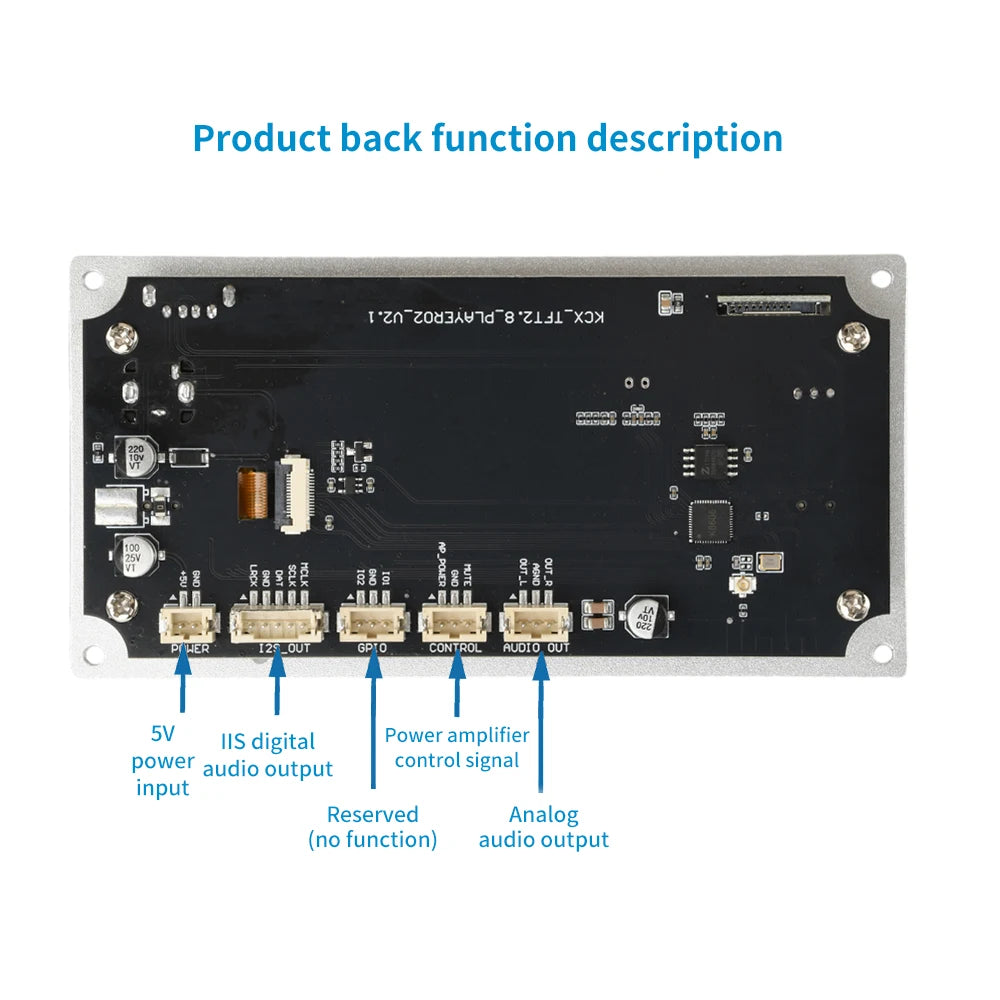

| Audio Output | Analogue + I2S Digital |
| Product Dimensions | 13.5 × 6.95 × 3.5 cm |
| Country of Origin | Made in Mainland China |

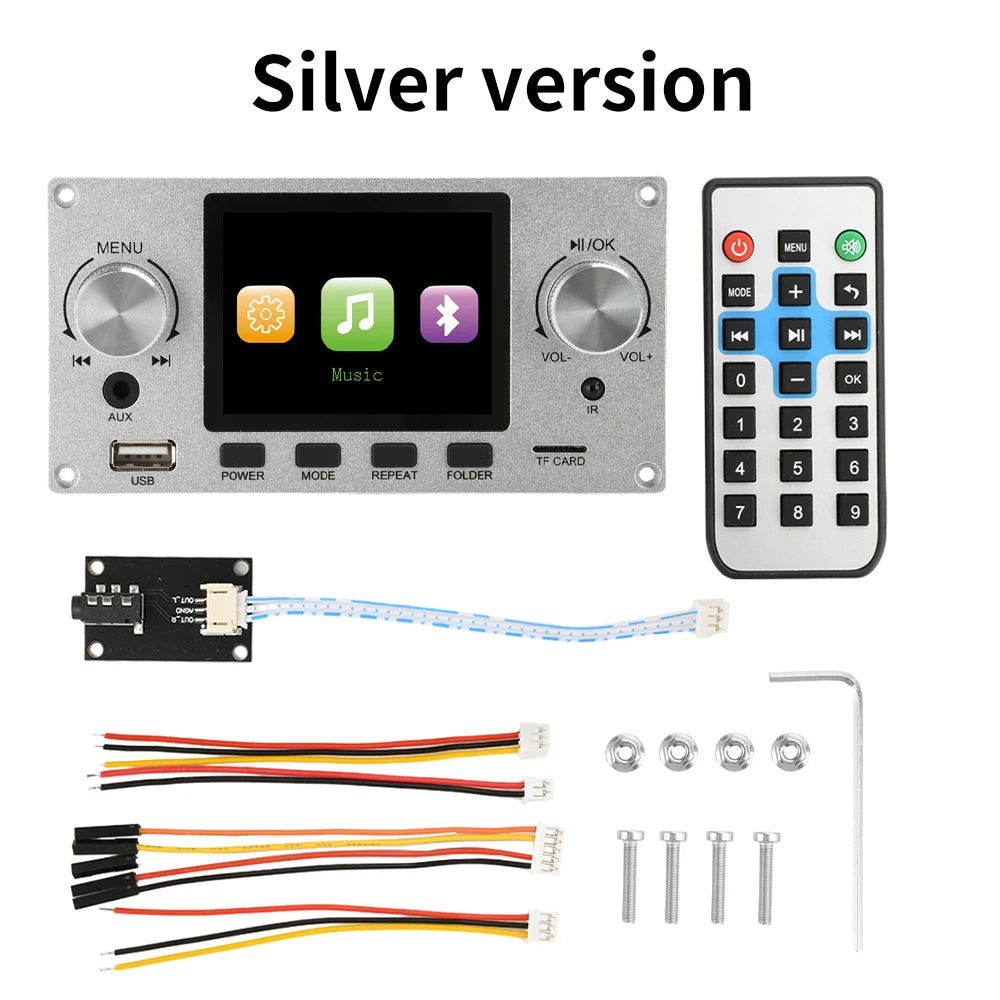

What's in the Box
- Decoding Board Module ×1
- M3 Allen Key ×1
- M3×16 Hex Socket Screws + Nuts ×4
- Remote Control ×1
- 3.5mm Audio Jack Cable ×1
- PH2.0/5-Pin to DuPont Cable ×1
- PH2.0/3-Pin Cable ×2
- PH2.0/2-Pin Power Cable ×1
You May Also Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts – Great for organising small components and cables.
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer – Keep your workspace tidy and stylish.
- Ceramic Mini Sealed Storage Jar – Portable Travel Container – Handy for storing small screws, pins, and accessories.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What audio sources does this lossless audio decoding board support?
A: The Gaqqee audio decoder board supports multiple audio sources including Bluetooth 5.3 wireless streaming, TF (microSD) card playback, USB flash drive playback, USB PC sound card input, and a 3.5mm LINE input from mobile phones, computers, or MP3 players — making it one of the most versatile decoding modules available.
Q: Does this module support I2S digital audio output?
A: Yes. In addition to a standard analogue stereo output, the board provides an I2S digital audio output interface, allowing direct integration with external DACs and digital amplifier boards that accept I2S signals.
Q: What power supply does this audio decoder board require?
A: The module operates on DC 5–12V and requires a regulated power supply. The operating current ranges from 30mA to 180mA depending on usage mode, with a standby current of approximately 20mA. Ensure your power source is stable and regulated for optimal audio performance.
Q: Can I use this board as a PC USB sound card?
A: Yes. One of its operating modes is a USB computer sound card, allowing you to use it as an external audio interface when connected to a PC or laptop via USB — ideal for improving your computer's audio output quality.
