Precision TIG Welding Tungsten Electrode Sharpener Grinder
Achieve perfectly sharpened tungsten electrodes every time with this professional-grade TIG Welding Electrode Sharpener. Featuring 48 fixed holes across 6 electrode sizes and 8 selectable sharpening angles, this grinder head tool is designed for welders of all skill levels — from beginners to seasoned pros. No more guesswork, no readjusting the grinding wheel — just drop in your electrode and grind.
Key Features
- User-Friendly Design: Fixed insertion holes with built-in offset compensation keep the tungsten tip precisely centered on the grinding point. Beginners can achieve professional-quality angles effortlessly.
- 6 Electrode Sizes Supported: Accommodates 5/32 in, 1/8 in, 3/32 in, 5/64 in, 1/16 in, and 0.040 in tungsten electrodes — covering the most common TIG welding diameters.
- 8 Sharpening Angles: Choose from 7.5°, 10°, 15°, 20°, 22.5°, 25°, 27.5°, and 30° grind angles (corresponding to 15°–60° tip angles) to match the exact requirements of your welding task.
- Multi-Angle Offset Arrangement: The thoughtful angle offset layout minimizes wear on both the tungsten electrode and the grinding wheel, extending the life of your consumables and the tool itself.
- Premium Construction: Built from aluminum alloy and tungsten steel for durability, with CNC-machined shafts and grinding wheels that maintain standard sizing for accurate, stable mounting and consistent results.
- Broad Compatibility: Engineered to integrate seamlessly with a wide range of TIG welding setups — no major workflow changes needed.
Specifications
| Item Type | TIG Welding Tungsten Electrode Sharpener |
| Material | Aluminum Alloy, Tungsten Steel |
| Electrode Sizes | 0.040 in, 1/16 in, 5/64 in, 3/32 in, 1/8 in, 5/32 in |
| Grind Angles | 7.5°, 10°, 15°, 20°, 22.5°, 25°, 27.5°, 30° |
| Tip Angles | 15°, 20°, 30°, 40°, 45°, 50°, 55°, 60° |
| Total Holes | 48 (dual-sided: 7.5°–20° one side, 22.5°–30° other side) |
| Country of Origin | Made in Mainland China |

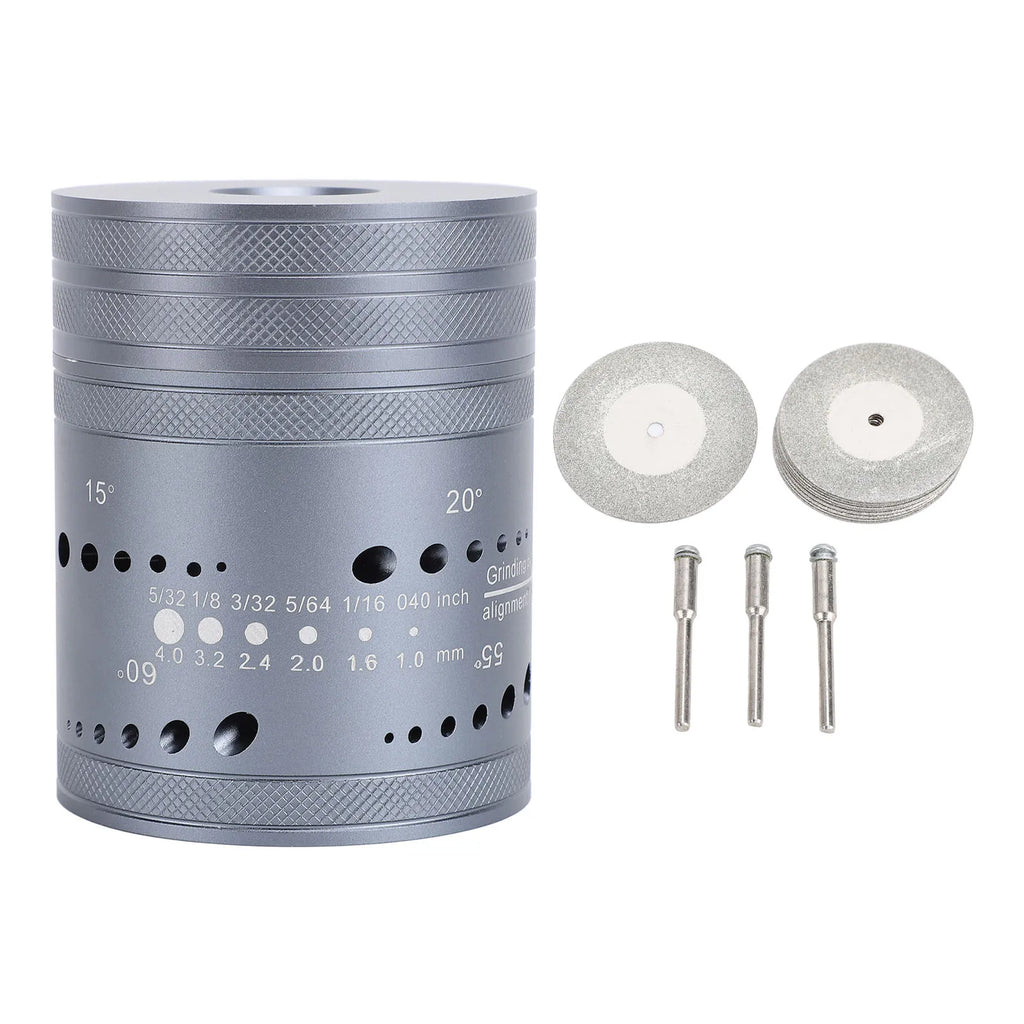

What's in the Box
- 1 × TIG Welding Electrode Sharpener Head
- 10 × Grinding Wheels
- 3 × CNC Shafts
Related Products You May Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What tungsten electrode sizes does this TIG sharpener grinder support?
A: This TIG tungsten electrode sharpener supports six standard sizes: 0.040 in, 1/16 in, 5/64 in, 3/32 in, 1/8 in, and 5/32 in — covering the most commonly used electrode diameters for TIG welding applications.
Q: How many sharpening angles are available on this electrode grinder?
A: The sharpener features 8 selectable grind angles (7.5°, 10°, 15°, 20°, 22.5°, 25°, 27.5°, and 30°), which correspond to tip angles ranging from 15° to 60°. Four angles are accessible on each side of the tool for easy selection.
Q: Is this TIG electrode sharpener suitable for beginners?
A: Absolutely. The fixed-hole design with built-in offset compensation keeps the electrode centered automatically, so even beginners can produce accurate, consistent tip geometries without complicated adjustments to the grinding wheel.
Q: What is included in the package?
A: The package includes 1 TIG welding electrode sharpener head, 10 grinding wheels, and 3 CNC shafts — everything you need to get started sharpening tungsten electrodes right away.
