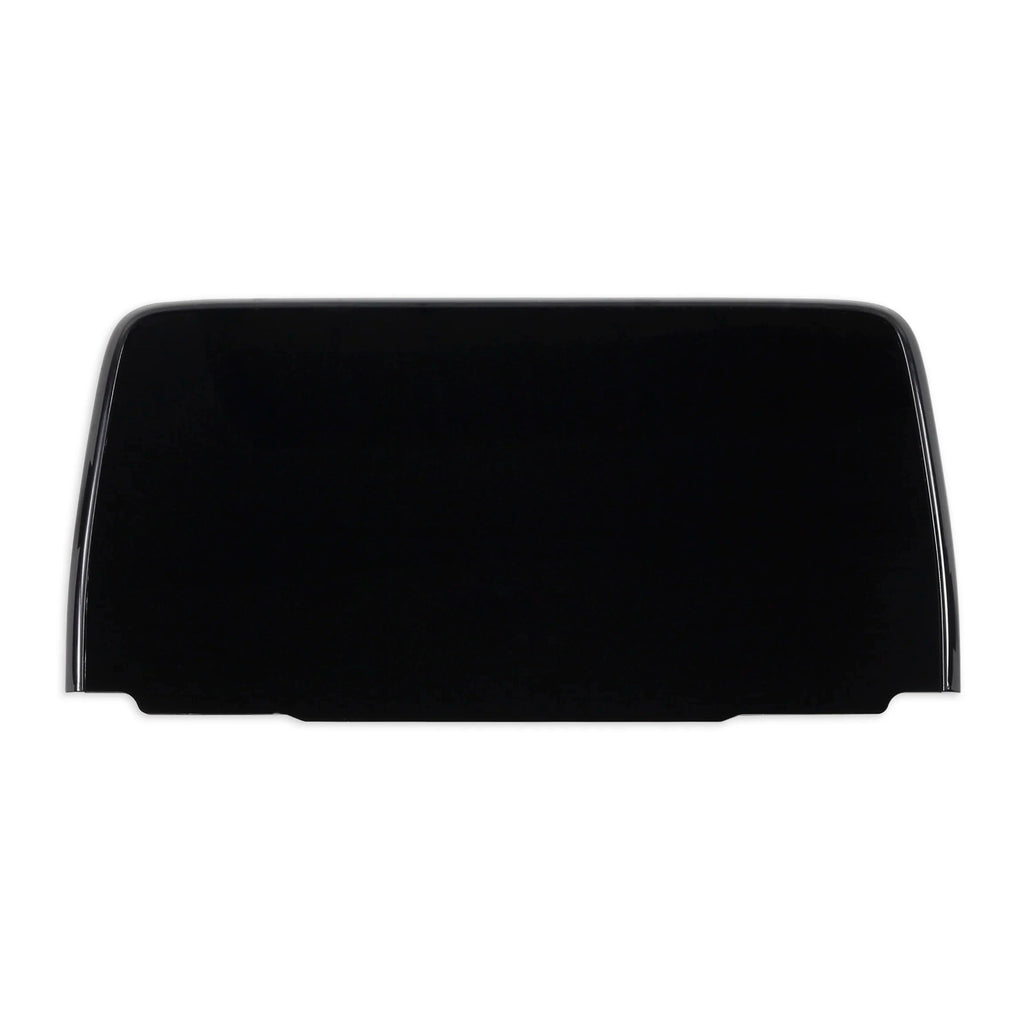

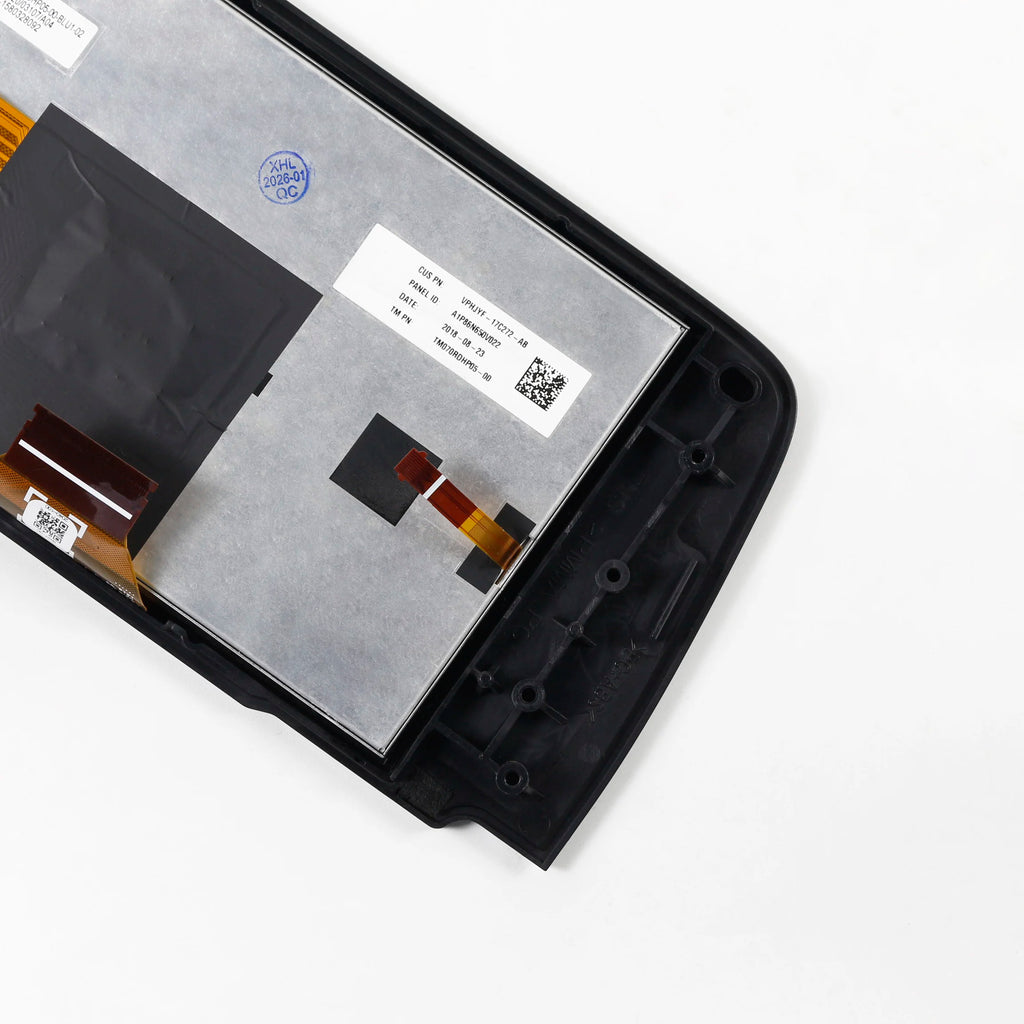

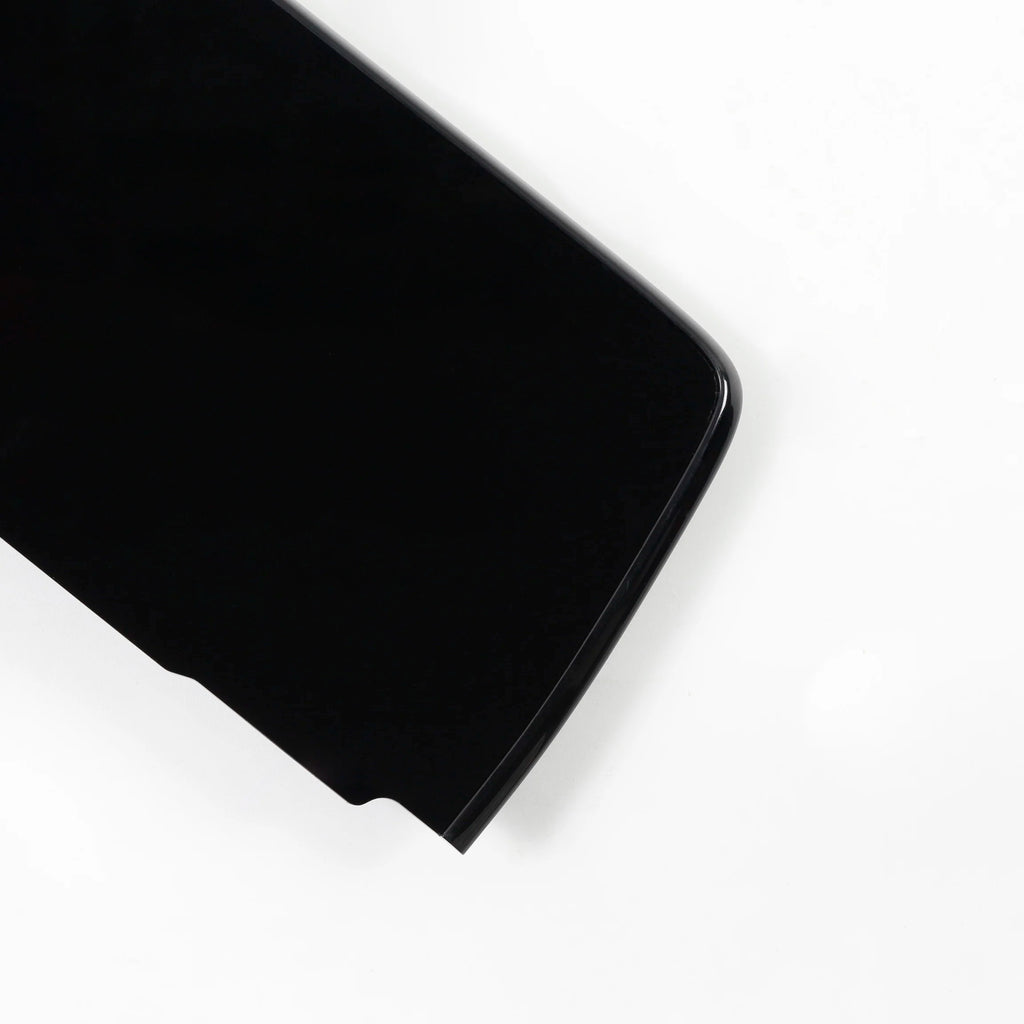

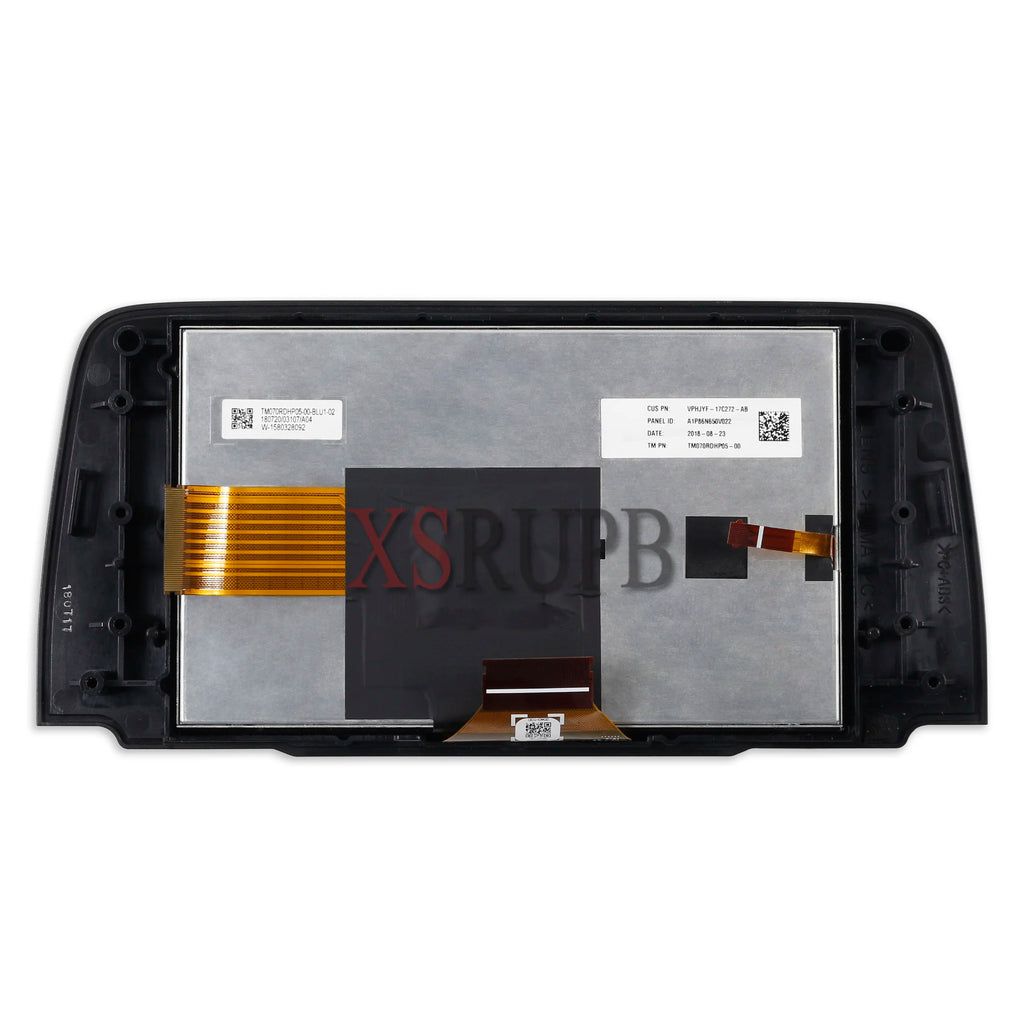

TM070RDHP05 LCD Touch Screen for 2017–2021 Mazda CX-5 Nav

TM070RDHP05 / TM070RDHP05-00 LCD Touch Screen Replacement for 2017–2021 Mazda CX-5

Restore your Mazda CX-5's infotainment system to full working order with this direct-fit TFT LCD touch screen display. Engineered to match the original factory specifications of the 2017–2021 Mazda CX-5 navigation unit, this replacement panel delivers crisp visuals and responsive touch performance — getting your in-dash navigation, audio controls, and vehicle settings back up and running with minimal fuss.

Key Features

• Exact OEM Model Match: Compatible with part numbers TM070RDHP05 and TM070RDHP05-00 for a precise, hassle-free fitment.
• TFT Display Technology: High-quality TFT (Thin-Film Transistor) screen delivers vibrant color reproduction and sharp detail for easy readability day or night.
• 7–10 Inch Display Size: Designed to fit the factory navigation screen dimensions of the 2017–2021 Mazda CX-5.
• Responsive Touch Layer: Fully functional capacitive touch panel ensures smooth, accurate input for navigation, media, and settings controls.
• Direct Replacement: Restores factory navigation and infotainment screen function without PCB (PCB not included).
• No High-Concern Chemicals: Manufactured without high-concern chemical substances for safer handling.

Compatibility

• Vehicle: 2017, 2018, 2019, 2020, 2021 Mazda CX-5
• OEM Part Numbers: TM070RDHP05 / TM070RDHP05-00
• Screen Type: TFT LCD
• PCB Included: No

What's in the Box

• 1 × TM070RDHP05 TFT LCD Touch Screen Panel

Made in Mainland China.

Need help organizing your workshop for this installation? Check out our Airtight Transparent PET Storage Bottle for keeping small screws and components sorted. For other automotive and workshop tools, browse our Leather Hole Punch Tool and U & V Leather Groover Skiving Tool Kit for your DIY workspace needs.

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: Which Mazda CX-5 model years is the TM070RDHP05 LCD touch screen compatible with?

A: This replacement LCD touch screen is compatible with 2017, 2018, 2019, 2020, and 2021 Mazda CX-5 navigation units that use the OEM part numbers TM070RDHP05 or TM070RDHP05-00. Always verify your existing part number before ordering to ensure a correct fit.

Q: Does this replacement screen include the PCB (printed circuit board)?

A: No, this listing is for the TFT LCD touch screen panel only. The PCB is not included. You will need to reuse your existing PCB during installation.

Q: Is professional installation required for the TM070RDHP05 Mazda CX-5 screen replacement?

A: While many experienced DIY enthusiasts can complete this screen replacement at home, professional installation by a qualified automotive technician is recommended to ensure safe disassembly of your dashboard and proper reconnection of all connectors.

Q: What type of screen technology does this replacement panel use?

A: This panel uses TFT (Thin-Film Transistor) LCD technology, which provides sharp color visuals and accurate touch response, matching the performance of your Mazda CX-5's original factory navigation display.
