TP4056 18650 Battery Charger Module – Type-C & Micro USB 5V 1A

$12.81 $17.34

Color 10Pcs type C 5PCS type C 10PCS micro 5PCS micro

Ships FromChina Mainland

TP4056 18650 Lithium Battery Charger Module with Dual Protection

Power your DIY electronics projects with confidence using this TP4056 Lithium Battery Charging Board. Compatible with both Type-C and Micro USB inputs, this versatile 5V 1A charging module is engineered for reliable, safe charging of single-cell 18650 Li-ion batteries. Whether you're building a custom power bank, wearable device, or any battery-powered project, this compact module delivers stable performance every time.

Key Features

Dual Input Compatibility: Works with both Type-C and Micro USB connectors for maximum versatility
Built-In Protection Circuit: Dual-function design integrates overcharge, over-discharge, and short-circuit protection for safe operation
Stable Charging Output: 5V input, 1A charging current — ideal for standard 18650 lithium-ion cells
Compact & DIY-Friendly: Lightweight, small-footprint PCB board fits easily into custom enclosures and maker projects
Status LED Indicators: Onboard LEDs clearly indicate charging and full-charge status at a glance

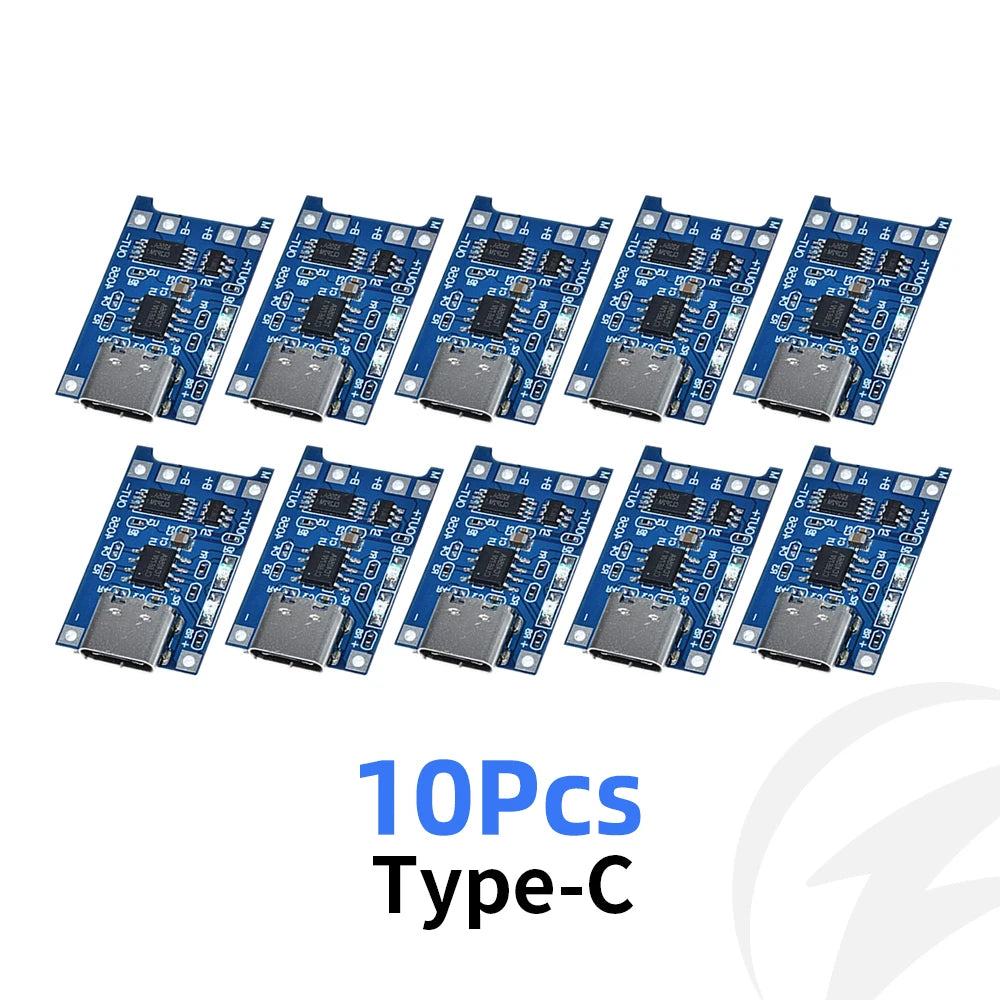

Multi-Pack Value: Available in 5-piece or 10-piece sets — perfect for stocking up on essential charging components
Broad Compatibility: Suitable for 18650 and other single-cell Li-ion / Li-Po batteries in DIY power applications

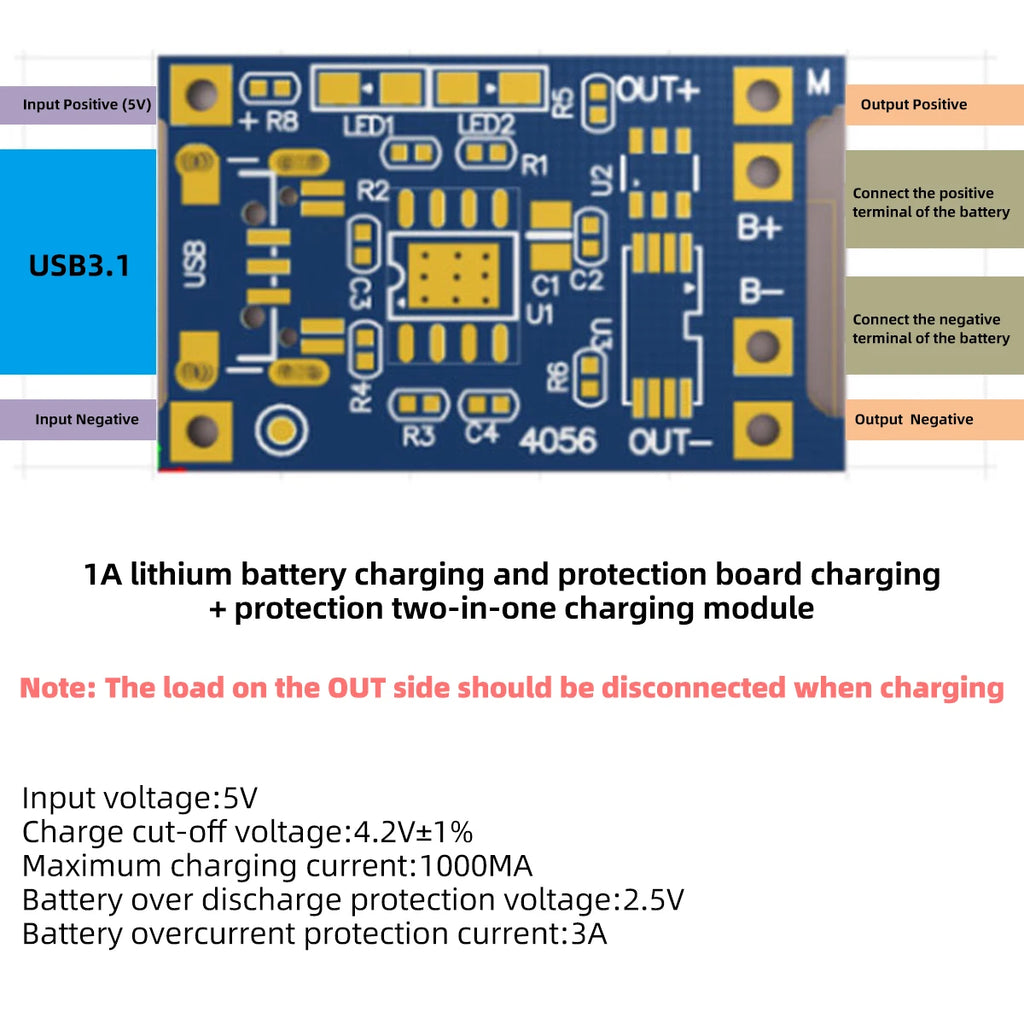

Specifications

Chip: TP4056
Input Voltage: 5V (via Type-C or Micro USB)
Charging Current: 1A (max)
Battery Type: Single-cell 18650 Li-ion / Li-Po
Protection: Overcharge, over-discharge, short-circuit (dual function)
Connector: Type-C & Micro USB
Indicator LEDs: Red (charging) / Blue or Green (full)
Country of Origin: Made in China

What's in the Box

5 or 10 × TP4056 Charging Module Boards (as selected)
Note: Batteries and charger adapter are NOT included.

Great For

DIY power banks and portable chargers
Arduino, Raspberry Pi, and maker projects
Custom battery packs and wearable electronics
Robot builds and RC hobby projects
Electronics repair and prototyping

Frequently Asked Questions

Q: What is the TP4056 module used for in DIY electronics projects?

A: The TP4056 charging module is a dedicated single-cell lithium battery charger IC board used to safely charge 18650 Li-ion or Li-Po batteries in DIY builds such as power banks, portable devices, Arduino projects, and more. Its integrated protection circuit guards against overcharge, over-discharge, and short circuits.

Q: What is the difference between the Type-C and Micro USB versions of this charger module?

A: Both versions perform identically in terms of charging specs (5V, 1A input). The difference is simply the input connector type. The Type-C version uses the modern reversible USB-C port, while the Micro USB version uses the classic Micro-B connector. Both are included in this listing's available variants, making it easy to choose whichever fits your power source.

Q: Does this TP4056 module include battery protection?

A: Yes — this is a dual-function board that combines the TP4056 charging circuit with a built-in protection chip. This means it protects your lithium battery from overcharging, over-discharging, and short-circuit conditions, making it safer than basic charger boards with no protection.

Q: Is a battery or USB adapter included with this module?

A: No. This listing includes only the TP4056 charger module boards (5 or 10 pieces). The 18650 battery and USB power adapter are not included and must be sourced separately.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
