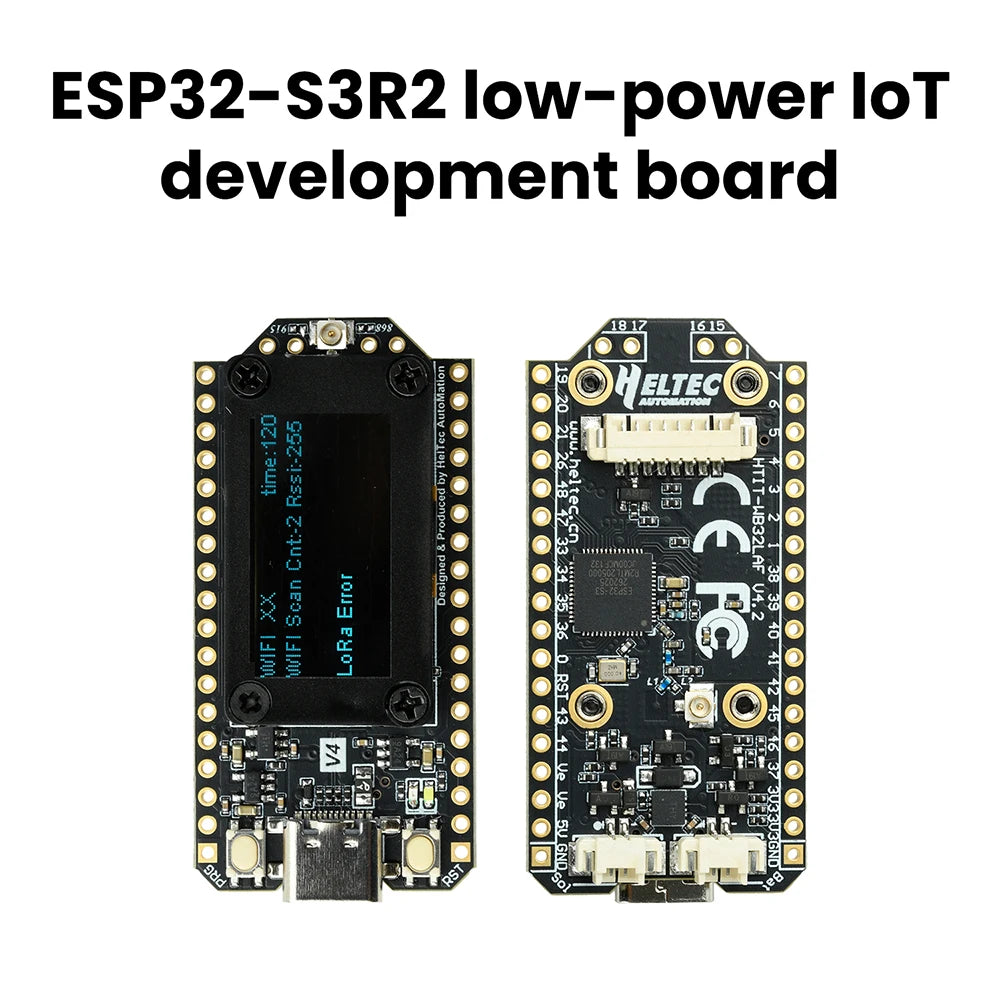

WiFi LoRa 32 V4 – ESP32-S3R2 Tri-Mode IoT Development Board
The WiFi LoRa 32 V4 is the fully upgraded evolution of the classic LoRa development board series, powered by the ESP32-S3R2 main controller and the SX-1262 LoRa chip. Built for developers, makers, and IoT engineers who demand maximum range, flexible connectivity, and rich hardware resources in a compact form factor, this board delivers on every front — from boosted transmit power to a new solar charging interface.
Made in Mainland China.
Key Features
- Tri-Mode Connectivity: Simultaneous Wi-Fi (802.11 b/g/n), Bluetooth LE / BT5 / BT Mesh, and LoRa — all in a single compact module.

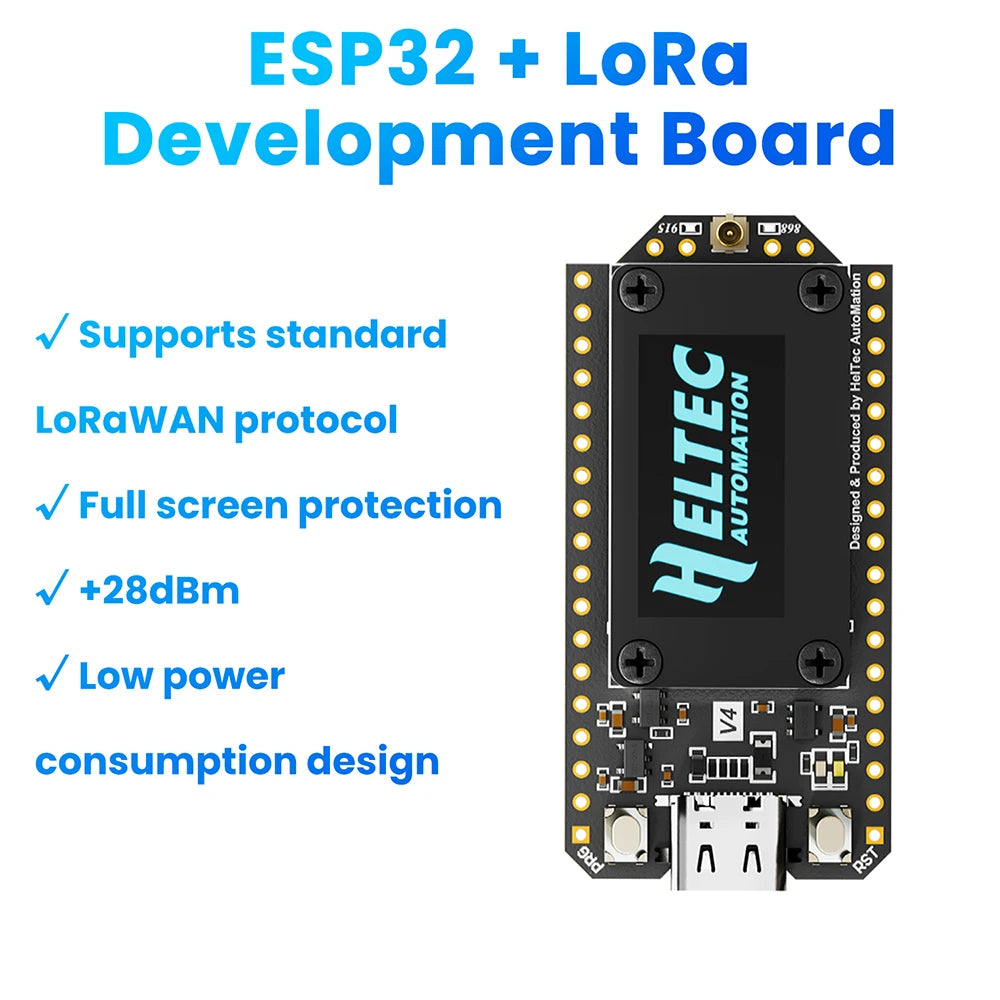

- High-Power LoRa: SX-1262 chip with up to 28±1 dBm transmit power and –137 dBm receive sensitivity for long-range, low-power wireless links.

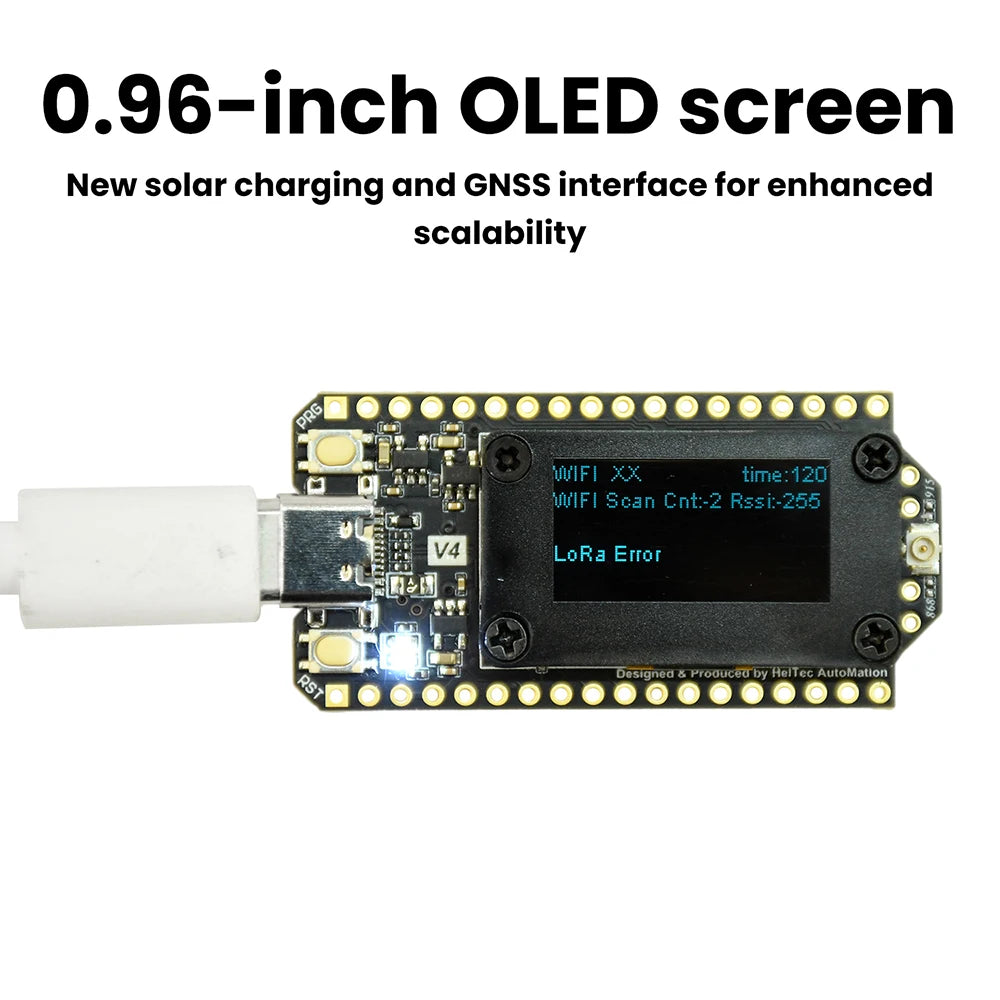

- 0.96" OLED Display: SSD1315 driver, 128×64 resolution — ideal for displaying sensor readings, status messages, and debug info on the device.
- Ample Memory: 16MB external flash + 2MB PSRAM for UI-rich and complex embedded applications.
- USB Type-C Interface: Integrated voltage regulation, ESD protection, short-circuit protection, and RF isolation. Ultra-low standby consumption of <20 µA.
- Solar & Battery Ready: New SH1.25-2P solar panel connector plus optimised lithium battery management for off-grid deployments.
- GNSS Expansion: New SH1.25-8Pin GNSS interface (GPS module kit available) for asset tracking and location-aware applications.
- V3-Compatible Pinout: Form factor and pin layout are fully compatible with the WiFi LoRa 32 V3, making upgrades seamless.
- Durable PC Screen Protector: Cast polycarbonate shell protects the OLED, with an integrated 2.4 GHz FPC antenna for reliable wireless performance.
- Wide Operating Temperature: –40°C to 85°C (OLED: –40°C to 70°C) — suitable for demanding indoor and outdoor environments.
Technical Specifications
| Main Controller | ESP32-S3R2 |
| LoRa Chip | SX-1262 |
| LoRa Frequency | 433–510 MHz & 863–928 MHz |
| Max Transmit Power | 21±1 dBm / 28±1 dBm |
| Max Receive Sensitivity | –137 dBm |
| Wi-Fi | 802.11 b/g/n, up to 150 Mbps |
| Bluetooth | BLE, Bluetooth 5, Bluetooth Mesh |
| OLED Display | SSD1315, 0.96-inch, 128×64 px |
| Storage | 384KB ROM | 512KB SRAM | 16KB RTC-SRAM | 16MB Flash | 2MB PSRAM |
| Power Supply | 5V via USB or solar; 3.3–4.2V via battery |
| Hardware I/O | 7× ADC1, 2× ADC2, 7× Touch, 3× UART, 2× I2C, 2× I2S, 4× SPI |

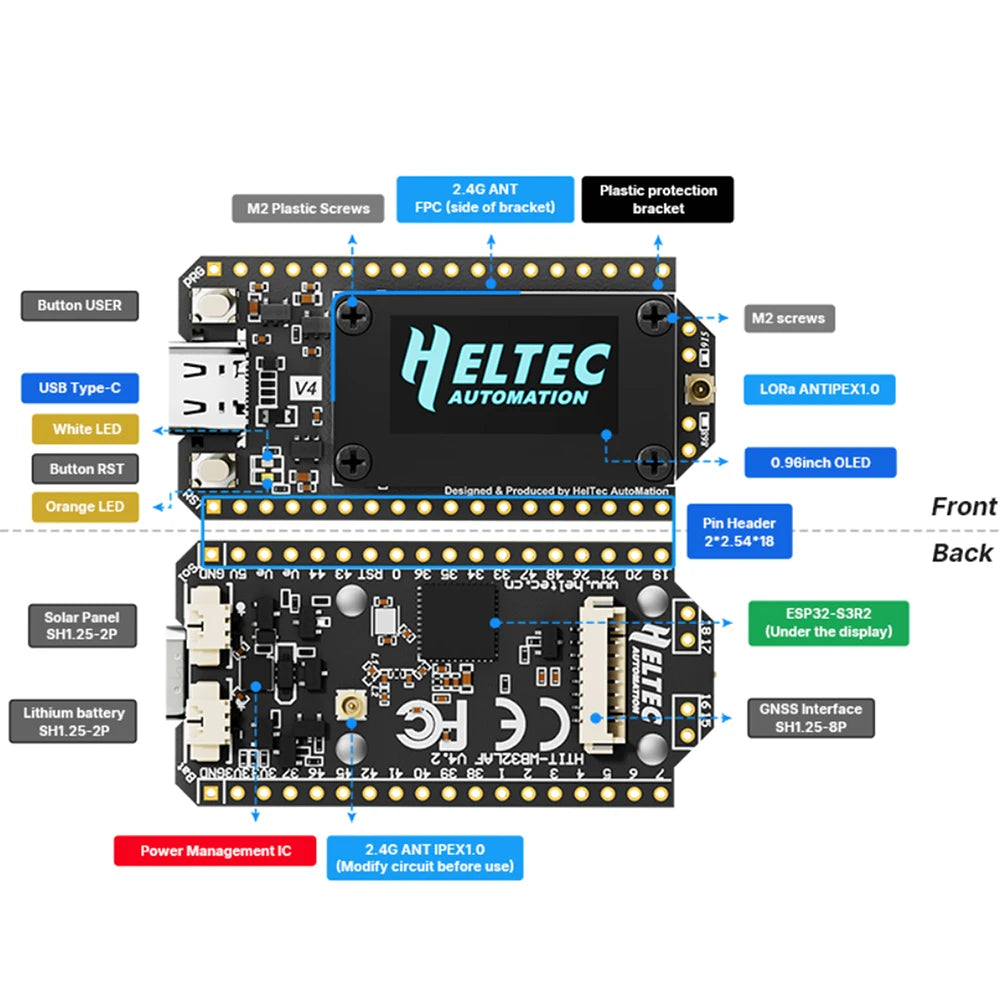

| Interfaces | USB Type-C, SH1.25-2P battery & solar, 2× IPEX1.0 ANT, 2× 18-pin 2.54mm headers |

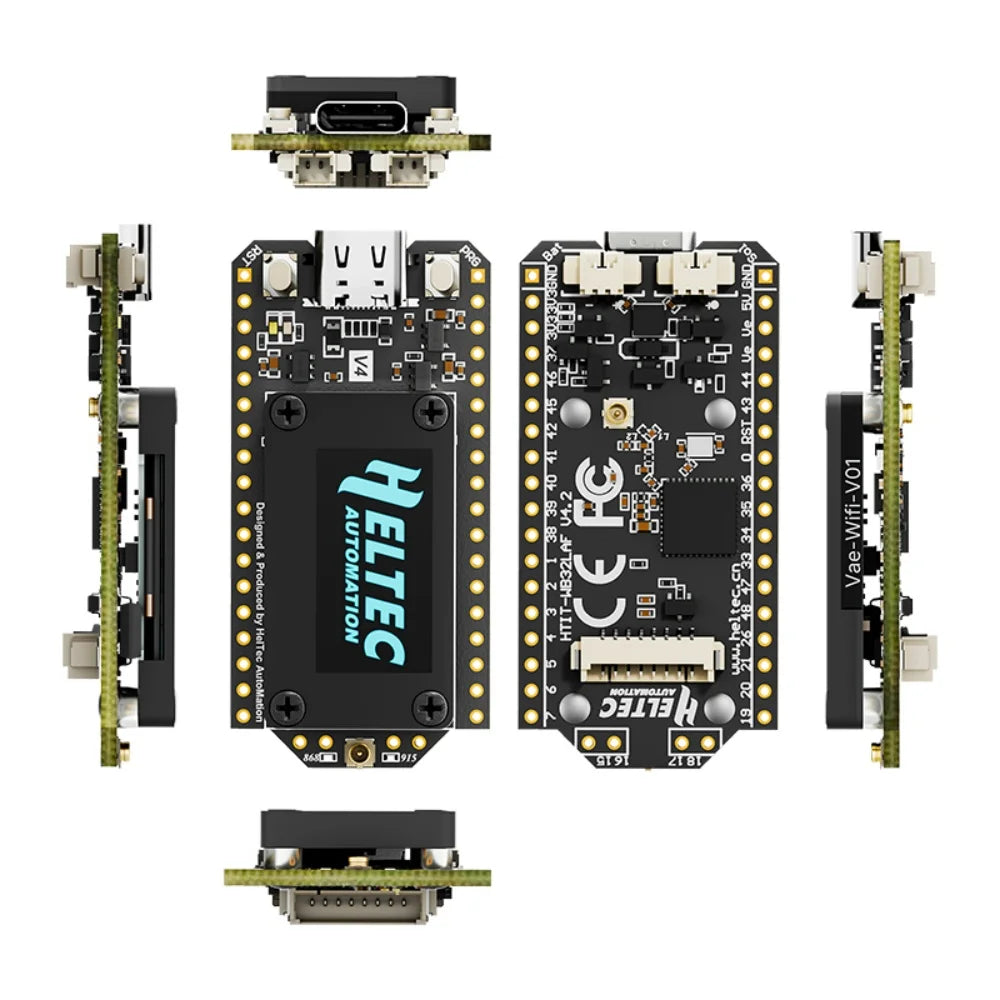

| Dimensions | 51.7 × 25.4 × 10.7 mm |
| Operating Temperature | –40°C to 85°C |
Ideal Application Scenarios
- Smart cities & smart home automation
- Industrial IoT & industrial control systems
- Smart agriculture & environmental sensing
- Asset tracking & GNSS positioning
- Remote wireless meter reading
- Security & wireless alarm systems
- DIY maker projects & prototyping
What's in the Box

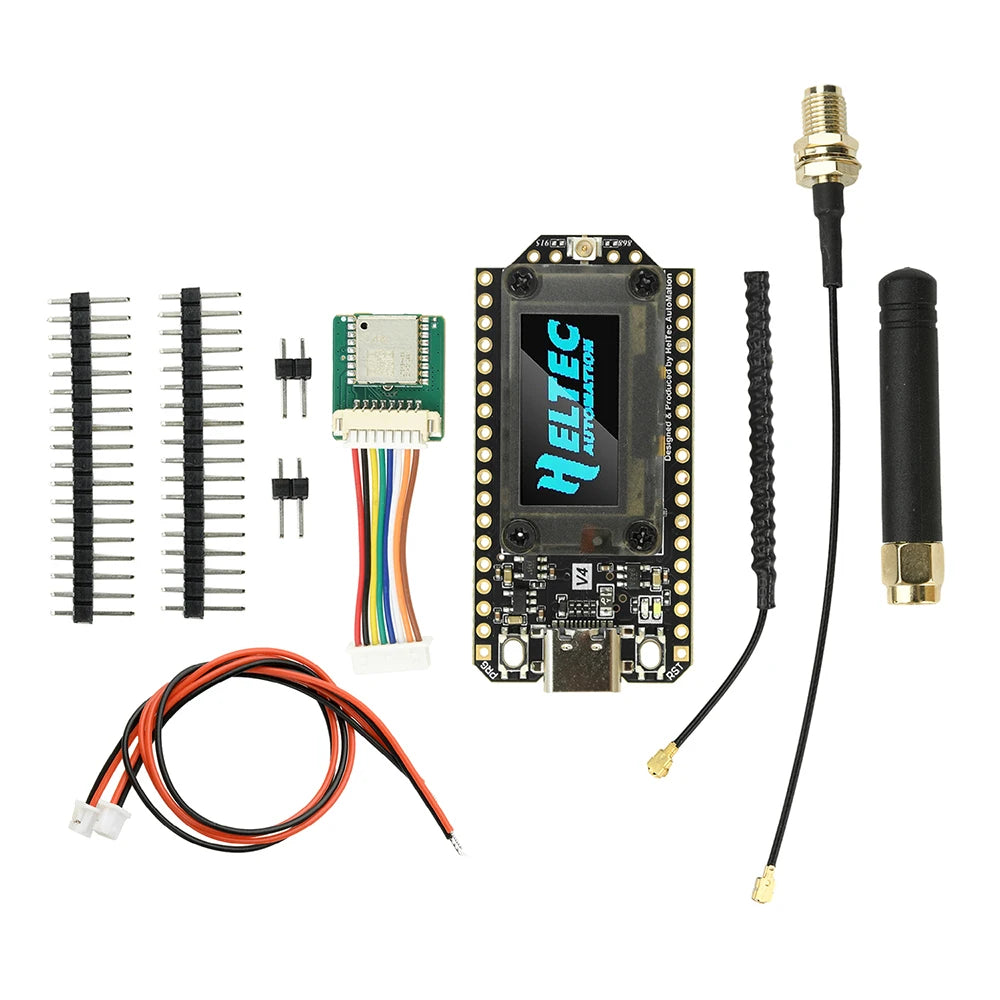

- List 1: Development Board Kit × 1 (Standard Model)
- List 2: Development Board Kit × 1 (With GPS Module)
Select your preferred option at checkout.
You May Also Like
- Airtight Transparent PET Storage Bottle – Great for organising small electronic components & parts
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is the difference between the WiFi LoRa 32 V4 and the V3 version?
A: The V4 features the newer ESP32-S3R2 chip (vs ESP32 on V3), higher LoRa transmit power (up to 28±1 dBm), a new solar charging interface (SH1.25-2P), a new GNSS expansion interface (SH1.25-8Pin), and an updated USB Type-C port with enhanced protection circuits. The form factor and pinout remain backward-compatible with the V3.
Q: What LoRa frequencies does the WiFi LoRa 32 V4 support?
A: The board supports two frequency bands: 433–510 MHz and 863–928 MHz, covering common ISM band frequencies used worldwide including EU868, US915, AU915, and AS923.
Q: Can the WiFi LoRa 32 V4 be powered by a solar panel?
A: Yes. The V4 introduces a new SH1.25-2P solar panel interface alongside optimised lithium battery management, making it well-suited for off-grid or field-deployed IoT nodes that need to harvest solar energy.
Q: Does the board include a GPS module?
A: The standard kit (List 1) does not include a GPS module. List 2 bundles the board with a GPS module. Both options are selectable at checkout. The GNSS interface (SH1.25-8Pin) is present on all V4 boards for easy expansion.
