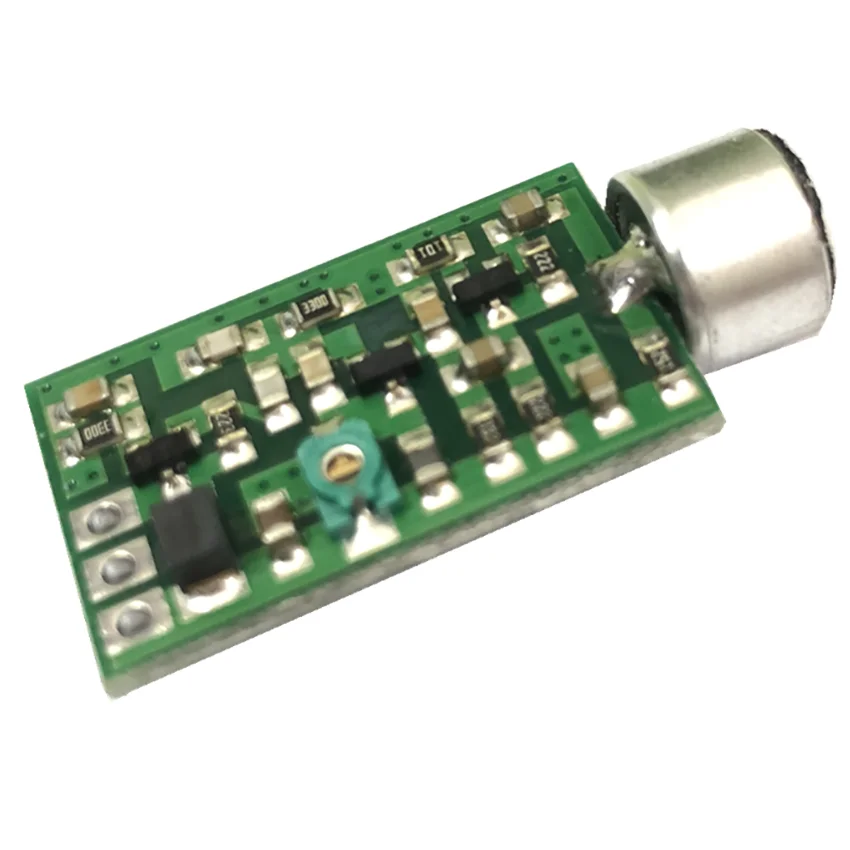

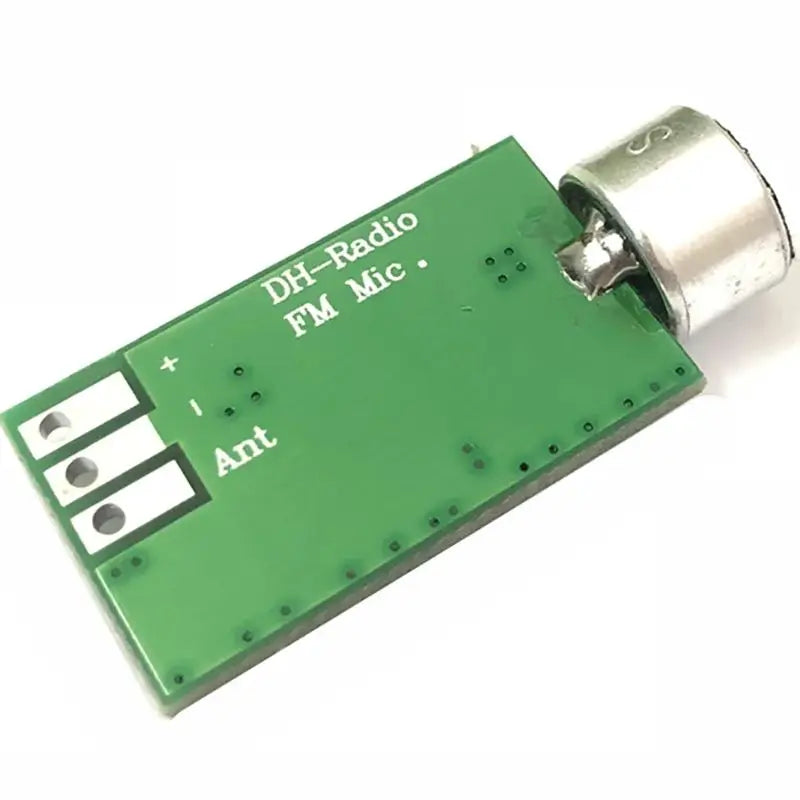

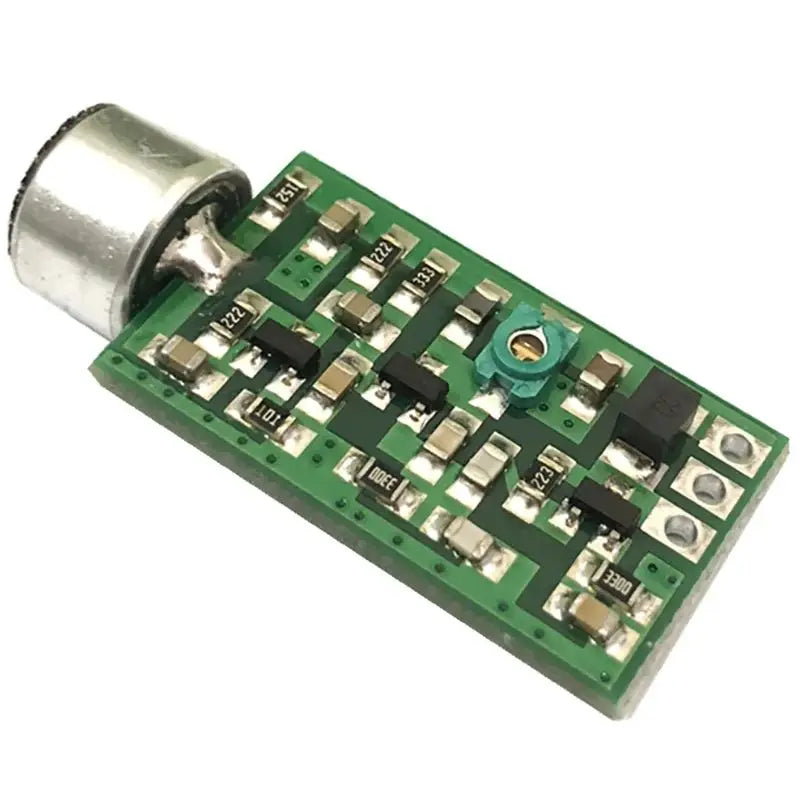

100MHz FM Transmitter Pickup Module – Wireless Audio Board V4.0

$5.97 $8.08

100MHz FM Transmitter Pickup Module – Wireless Audio Core Board V4.0

Turn any sound source into a wireless FM broadcast signal with this compact, ultra-low-power FM transmitter pickup module. Operating across the standard 88–108 MHz FM band, it converts audio captured by its onboard microphone into a clean FM radio signal receivable by any standard FM radio or FM-capable device. Perfect for electronics enthusiasts, DIY audio projects, and hobbyist builders.

Key Features

Adjustable Frequency (88–108 MHz): Fine-tune the transmission frequency using the onboard adjustable capacitor with a non-inductive screwdriver — default set to approximately 100 MHz.
Ultra-Wide Voltage Range (0.7V – 9V): Works with virtually any battery type — single AA dry cell, lithium, button cell, Ni-MH rechargeable, solar, or lead-acid batteries.
Remarkably Low Power Consumption: At 1.5V (single AA), current draw is just 4.2 mA. A 3000 mAh Ni-MH AA battery powers continuous operation for nearly 30 days.
Clean Signal Output: Spurious signal suppression reaches –60 dBc for a pure, interference-free FM transmission.
Full SMD Construction: All surface-mount components are machine-soldered for consistent, reliable performance — superior to conventional plug-in or hand-soldered designs.
Compact & Lightweight: Weighs just 30g, making it easy to integrate into portable or embedded projects.
Broad Compatibility: Receive the signal on any standard FM radio. (Note: mobile phones with earphone cables as antennas are not recommended as receivers due to limited sensitivity.)

Specifications

Default Frequency: ~100 MHz
Adjustable Frequency Range: 88–108 MHz (FM standard band)
Operating Voltage: 0.7V – 9V
Current at 0.7V: ~0.9 mA
Current at 1.5V (AA): ~4.2 mA
Signal Spurious Suppression: –60 dBc
Weight: 30g
Battery Included: No
Country of Origin: Made in China

What's in the Box

1 × FM Transmitter Pickup Module (Core Board V4.0)

Note: The product is continuously upgraded — appearance and color may vary from images. Please consider this before ordering if a specific color or appearance is required.

Frequently Asked Questions

Q: What frequency does this FM transmitter pickup module operate on?

A: The module is set to a default frequency of approximately 100 MHz and is adjustable across the standard 88–108 MHz FM band using the onboard adjustable capacitor and a non-inductive screwdriver.

Q: What kind of battery does the FM transmitter module require?

A: This module works with an extremely wide voltage range of 0.7V to 9V, meaning it is compatible with virtually any battery type — AA dry cells, lithium batteries, button cells, Ni-MH rechargeables, lead-acid batteries, and more. No battery is included.

Q: How do I receive the signal transmitted by this module?

A: Any standard FM radio can receive the signal broadcast by this module. Mobile phones with earphone cables used as antennas are not recommended due to their limited FM reception sensitivity.

Q: Is this FM transmitter module suitable for DIY electronics projects?

A: Absolutely. Its compact SMD construction, wide voltage compatibility, adjustable frequency, and ultra-low power draw make it ideal for DIY audio projects, wireless audio transmission experiments, and electronics hobbyist builds.
