250×50mm Serrated Rubber Contact Wheel – Belt Grinder & Polishing Wheel
Upgrade your belt grinder with the RAMS BRALIN 250×50mm Serrated Rubber Contact Wheel — a precision-engineered drive wheel built for serious metalworking, knife making, and fabrication. Constructed from high-grade, hard-wearing rubber bonded to a solid aluminum core, this contact wheel delivers consistent belt tracking, low noise, and vibration-free operation across grit ranges from #36 to #1000. Made in Mainland China.
Key Features
- Size: 250mm OD × 50mm face width (10" × 2")
- Construction: Serrated rubber surface over aluminum wheel core for superior belt grip
- Compatible Belts: Works with abrasive sanding belts from #36 (coarse grinding) to #1000 (fine polishing)
- Hardness Options: 55A (Soft) | 70A (Common) | 80A (Hard) | 90A (Very Hard)
- Low noise, vibration-free operation for a safe and comfortable working environment

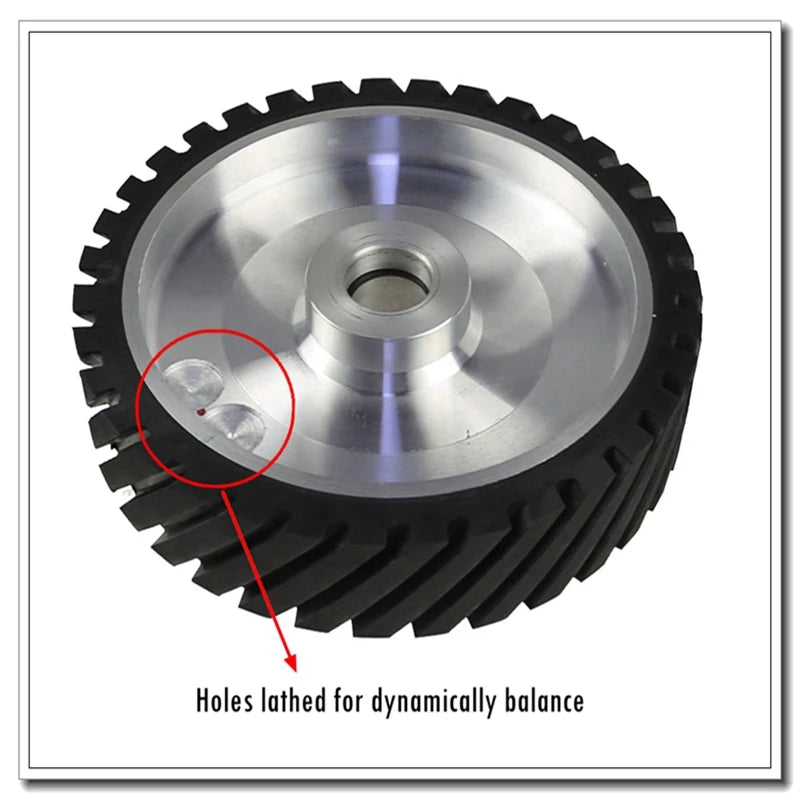

- Factory-balanced before shipping for smooth, reliable performance
- Long service life — premium rubber compound with strong, durable bonding

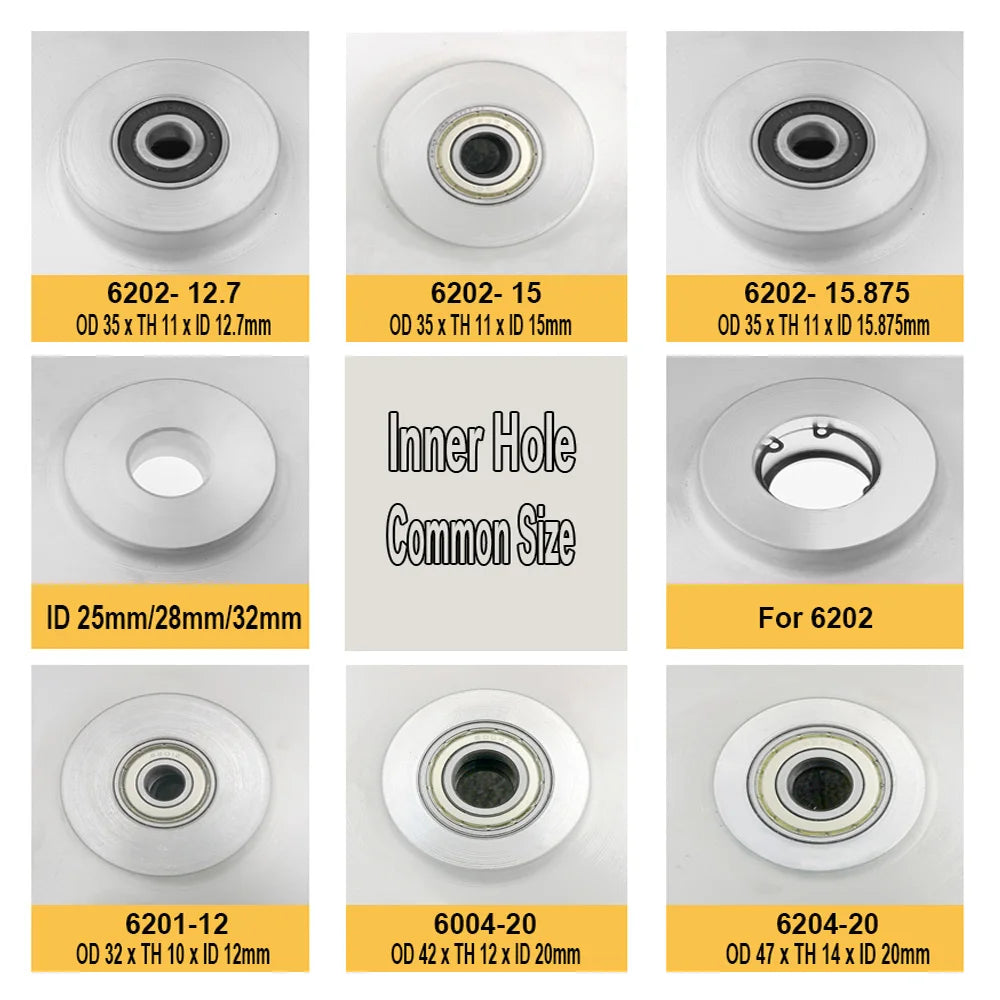

Inner Hole / Bore Options
Choose the inner hole configuration that matches your grinder shaft or bearing setup:
| Option | Details |
|---|---|
| ID 25mm / 28mm / 32mm | Through hole for engine shaft or grinder axle |
| For 6202 bearings (bare) | 35mm inner hole with circlips (bearings not included) |
| For 6005 bearings (bare) | 47mm inner hole with circlips (bearings OD47×ID25×TH12mm, not included) |
| 6201 Installed | Bearings 6201 pre-installed (Dia.32mm × TH10mm × Hole 12mm) |
| 6004 Installed | Bearings 6004 pre-installed (Dia.42mm × TH12mm × Hole 20mm) |
| 6204 Installed | Bearings 6204 pre-installed (Dia.47mm × TH14mm × Hole 20mm) |
| 6202 Installed – 12.7mm | Bearings 6202 (OD35 × ID12.7 × TH11mm) pre-installed |
| 6202 Installed – 15mm | Bearings 6202 (OD35 × ID15 × TH11mm) pre-installed |
| 6202 Installed – 15.875mm | Bearings 6202 (OD35 × ID15.875 × TH11mm) pre-installed |

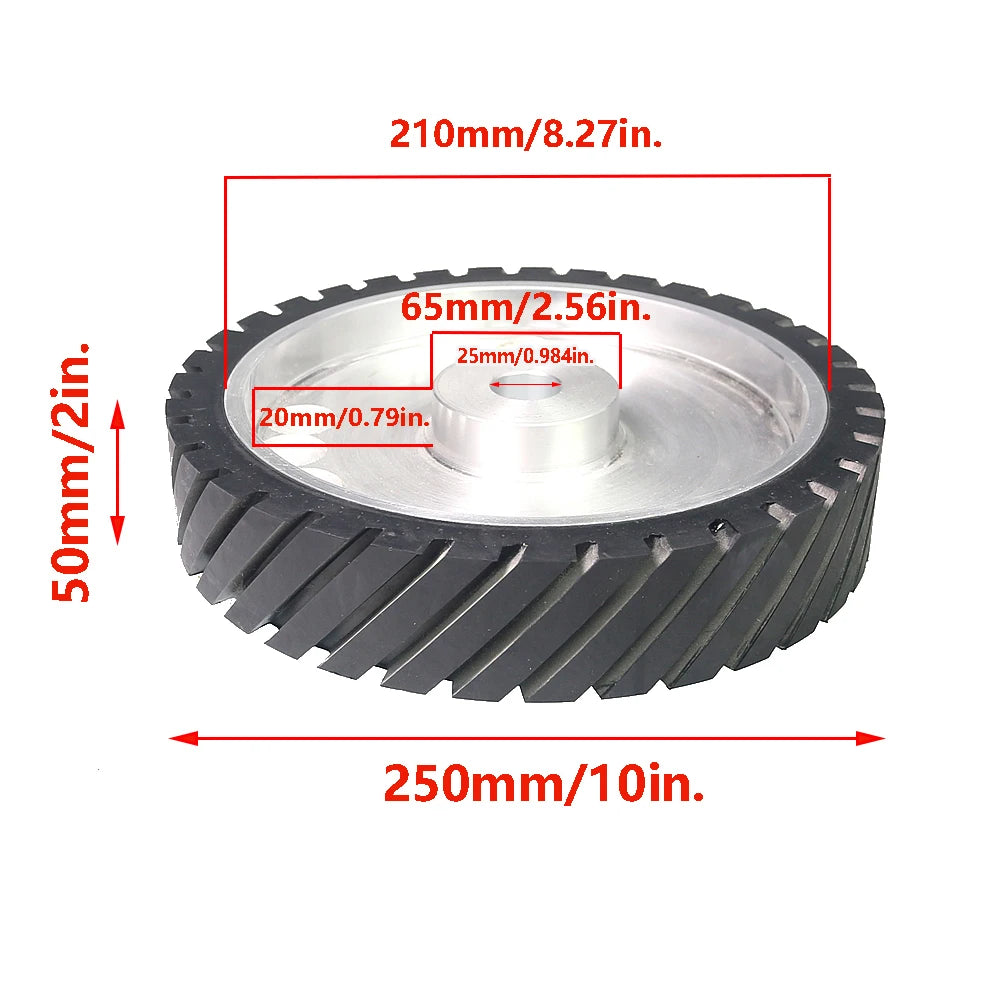

Specifications
- Brand: RAMS BRALIN
- Model: RW01
- Outer Diameter: 250mm (10")
- Face Width: 50mm (2")
- Material: Serrated rubber + aluminum core
- Surface: Serrated
- Compatible Belt Grits: #36–#1000
- Origin: Made in Mainland China
Who Is This For?
The RAMS BRALIN contact wheel is ideal for knife makers, metal fabricators, woodworkers, and anyone running a custom or commercial belt grinder. Whether you need aggressive stock removal at 55A or precise finishing at 90A, there's a hardness grade for every task. Custom sizing and surface options are available — contact us for bespoke specifications.
Related Products You May Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What hardness contact wheel should I choose for metal polishing versus aggressive grinding?
A: For fine polishing and finishing work, a softer 55A durometer contact wheel conforms slightly to the workpiece for a smooth finish. For aggressive stock removal and coarse grinding, choose a harder 80A or 90A wheel to maximize cutting efficiency with your abrasive sanding belt.
Q: Are the bearings included with the contact wheel?
A: It depends on the option selected. Some configurations — such as the 6202-bare and 6005-bare options — include the circlip groove but require you to supply your own bearings. Other options (6201 installed, 6004 installed, 6204 installed, and the 6202 installed variants) come with bearings pre-fitted and ready to mount.
Q: What sanding belt size is compatible with this 250×50mm contact wheel?
A: This contact wheel is designed to work with abrasive sanding belts grit #36 through #1000, covering everything from heavy material removal to fine surface finishing. Always ensure your belt width matches the 50mm (2") face width of the wheel for optimal tracking and performance.
Q: Can this contact wheel be customized to fit a non-standard shaft size?
A: Yes — RAMS BRALIN offers custom inner hole configurations to suit unique shaft or axle dimensions. Contact us with your specific shaft diameter and bearing requirements, and we can fabricate a contact wheel tailored to your application.
