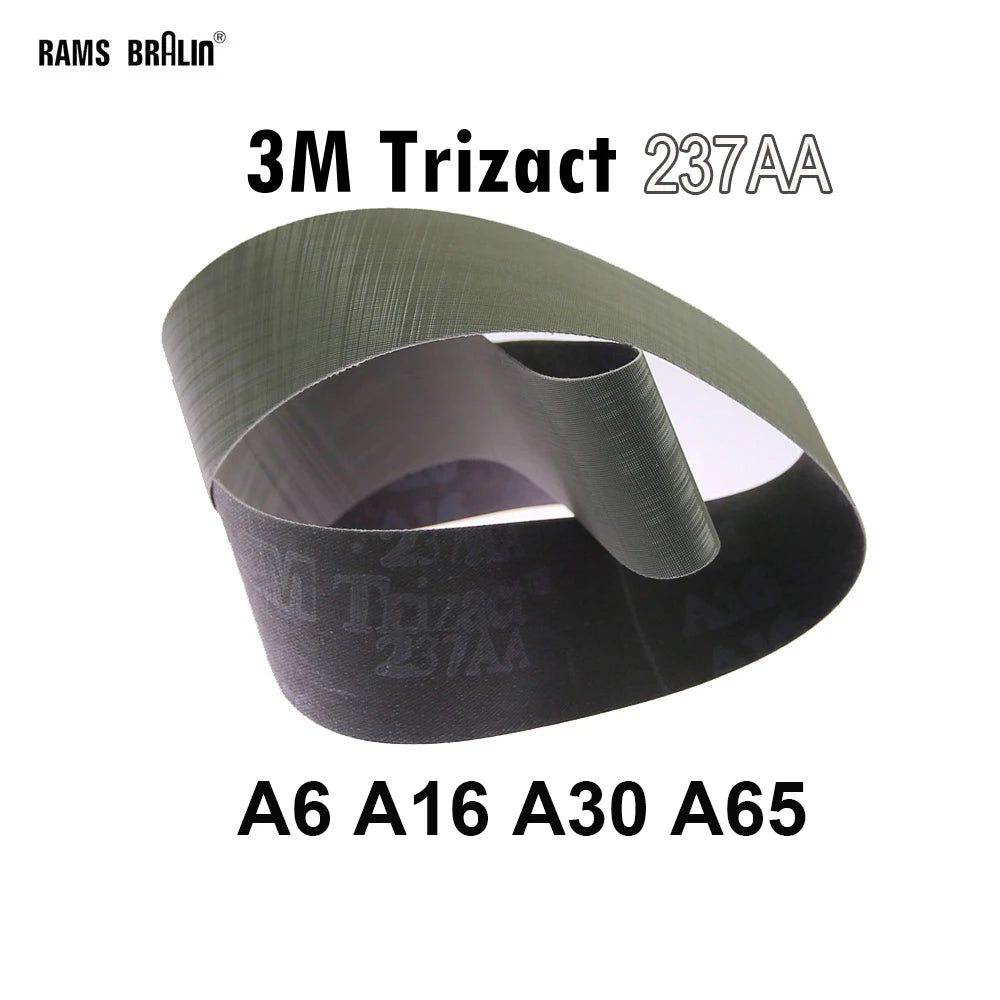

3M™ Trizact™ Cloth Belt 237AA – Precision Abrasive Sanding Belt
Achieve flawless, consistent finishes on metal surfaces with the 3M™ Trizact™ Cloth Belt 237AA. Engineered using 3M's proprietary microreplication technology, micron-graded aluminum oxide particles are formed into tiny self-sharpening pyramids and bonded to a durable X-weight cloth backing. As the pyramids wear down, fresh, sharp mineral is continuously exposed — delivering a predictable, ultra-fine finish from start to finish.
Whether you're working on stainless steel fabrication, automotive finishing, or pre-plating preparation, this sanding belt outperforms conventional abrasives with every pass. Made in Mainland China.
Key Features
- Self-sharpening pyramid structure — starts sharp, stays sharp, and runs cooler than traditional abrasives
- Flexible X-weight cloth backing — conforms to contours for a uniform finish on complex shapes
- Three-dimensional abrasive design — delivers highly consistent finishes throughout the belt's entire lifespan, ideal for robotic and automated applications
- Finer finishes than conventional electrostatically coated abrasives
- Perfect for intermediate finishing and fine polishing prior to plating, buffing, or coating
- Wide grit range — from P320 (A65) all the way to P5000 (A3) to suit every stage of finishing

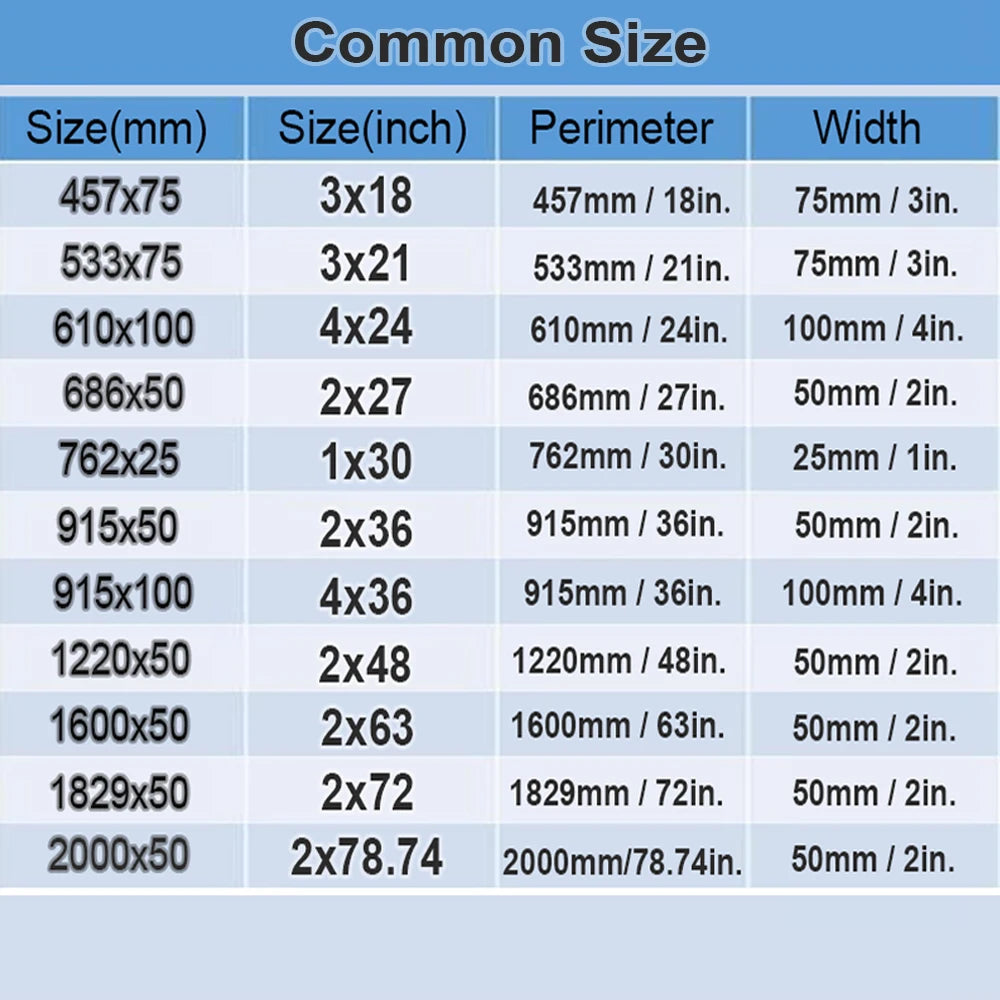

Available Sizes
- 686 × 50 mm
- 762 × 25 mm
- 915 × 50 mm
- 915 × 100 mm
- 1220 × 50 mm
- 1500 × 50 mm
- 1829 × 50 mm
- 2000 × 50 mm
- 533 × 75 mm
- 610 × 100 mm

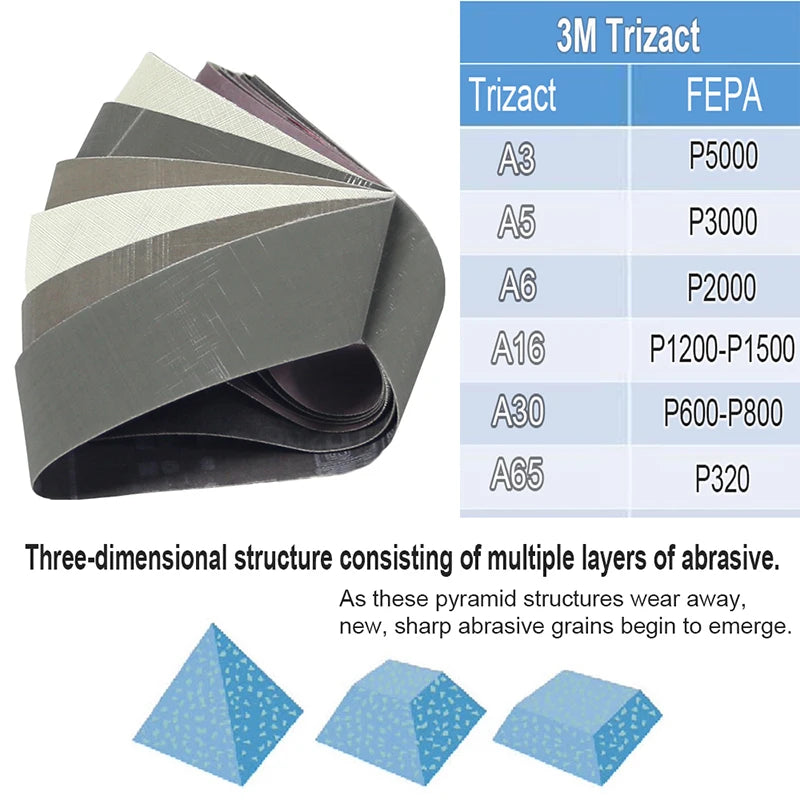

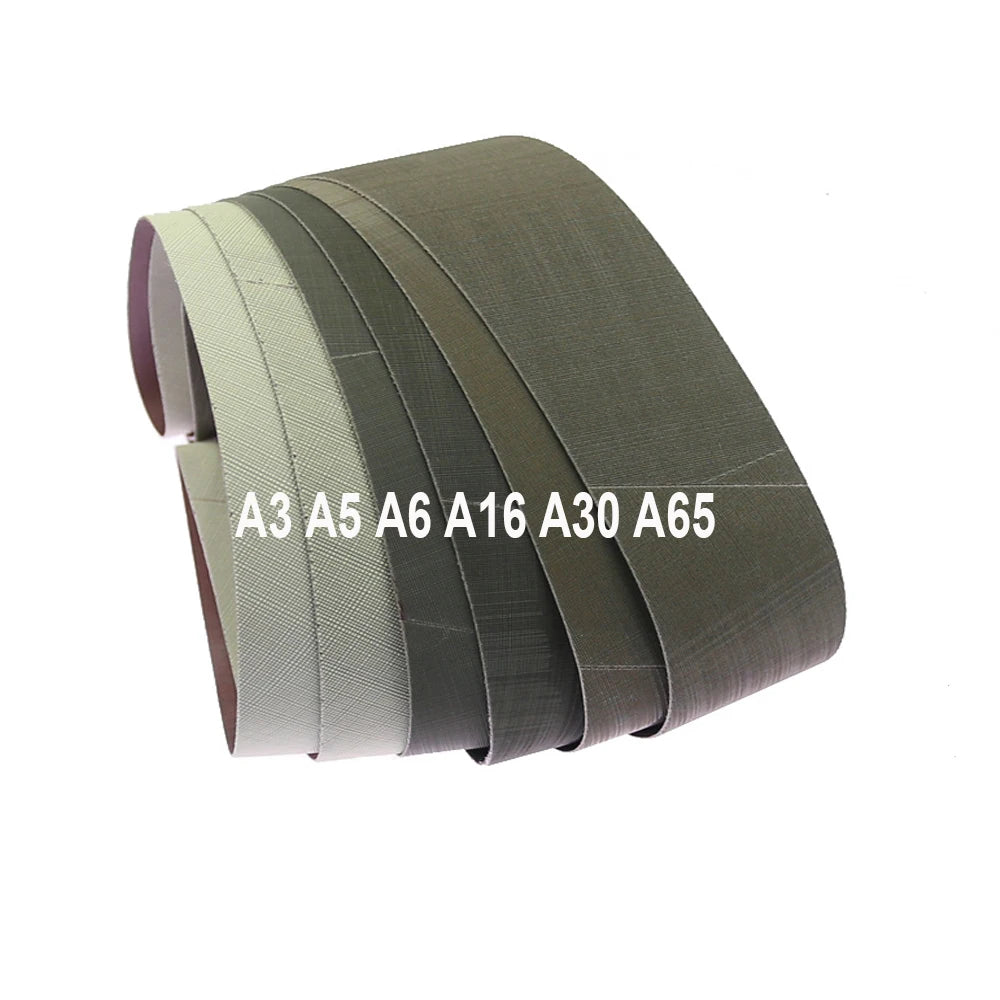

Available Grit Options
| Grade | Equivalent Grit | Best Used For |
|---|---|---|
| A65 | P320 | Initial metal finishing, aggressive stock removal |
| A30 | P600–P800 | Intermediate finishing |
| A16 | P1200–P1500 | Fine surface preparation |
| A6 | P2000 | Pre-polish finishing |
| A5 | P3000 | Ultra-fine polishing |
| A3 | P5000 | Mirror-finish polishing before plating or buffing |

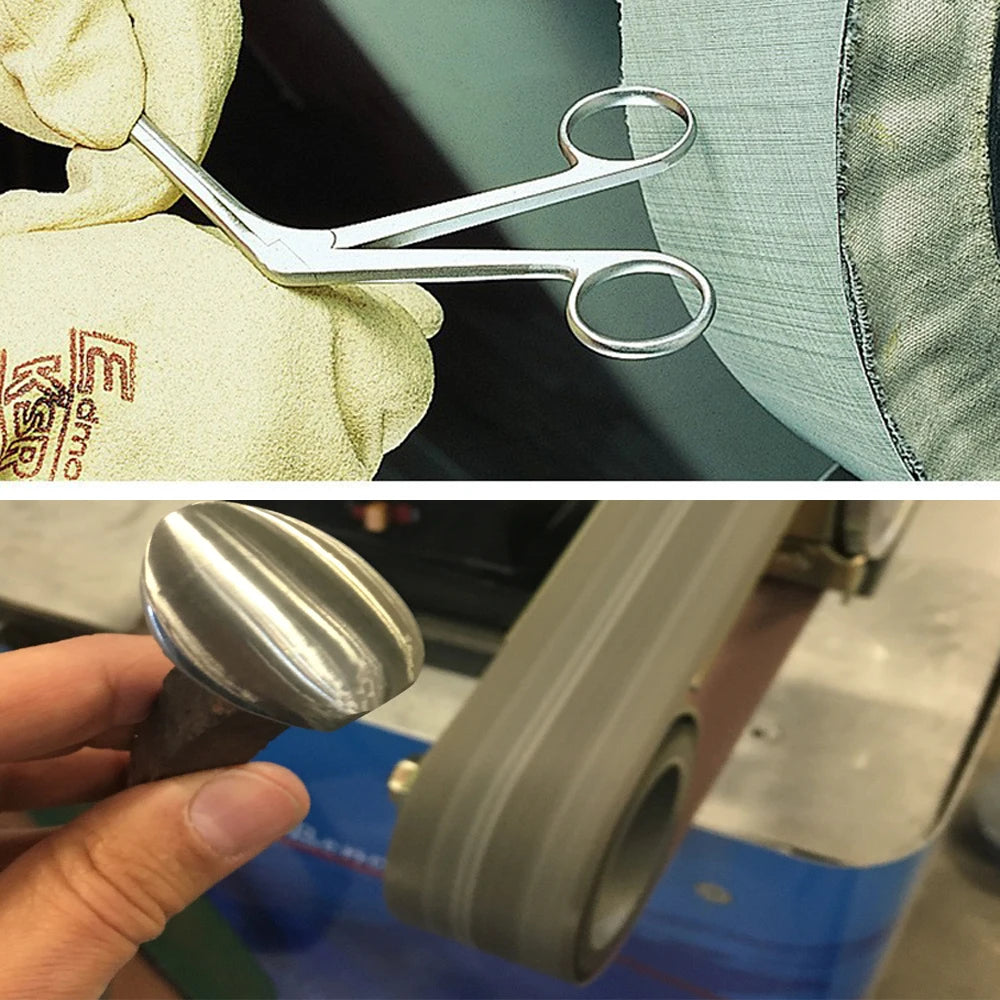

Ideal Applications
- Stainless steel fabrication and surface finishing
- Metalworking and precision machining
- Automotive body and component finishing
- Pre-plating, pre-buffing, and pre-coating preparation
- Robotic and automated sanding systems
Specifications
- Brand: RAMS BRALIN (3M™ Trizact™ Technology)
- Material: Aluminum oxide on X-weight cloth backing
- Model: 237AA
- Grit Range: P320 (A65) to P5000 (A3)
- Customization: Available in multiple sizes and grits
- Country of Origin: Made in Mainland China
You May Also Like
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm
- U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set
- Stainless Steel Ceramic Trimming Tool – Curved Skip Knife
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What makes the 3M Trizact 237AA sanding belt different from conventional abrasive belts?
A: Unlike conventional abrasives that use random-distribution mineral coating, the 3M Trizact 237AA uses microreplication technology to form aluminum oxide into precise three-dimensional pyramids. As the pyramid tips wear, fresh sharp mineral is continuously exposed, resulting in a more consistent cut rate and finer, more predictable finish throughout the life of the belt — especially valuable in automated or robotic finishing setups.
Q: What materials can this sanding belt be used on?
A: This abrasive sanding belt is designed primarily for metalworking applications, with particular effectiveness on stainless steel. It is also suited for other metals requiring fine intermediate finishing, pre-plating preparation, or pre-buffing polishing. Multiple grit options (P320 to P5000) allow you to take a workpiece from initial stock removal all the way through to a mirror-quality finish.
Q: How do I choose the right size and grit for my application?
A: Select your belt size based on your belt sander or grinding machine's specifications (10 standard sizes are available). For grit, start with A65 (P320) for heavier stock removal or initial finishing, progress through A30 and A16 for intermediate work, and finish with A6, A5, or A3 (up to P5000) for ultra-fine polishing before plating, buffing, or coating. Custom sizing is also available.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
