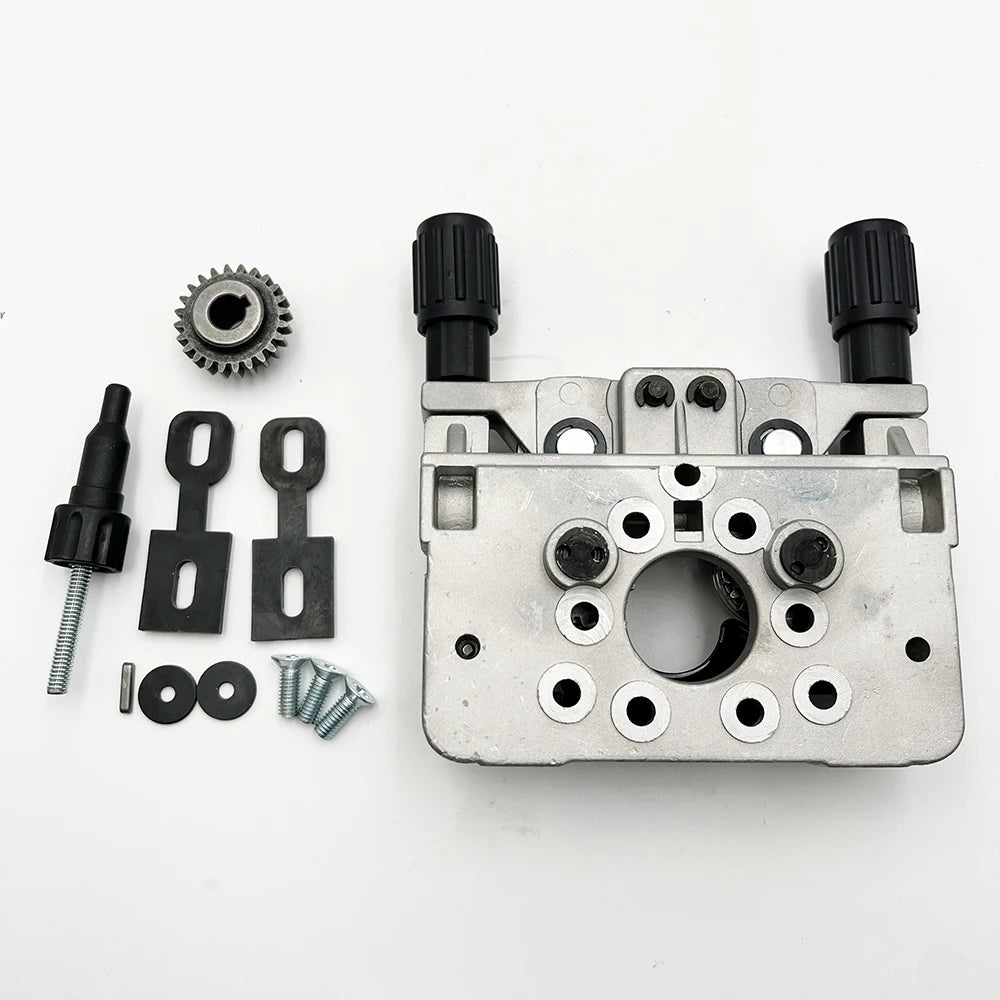

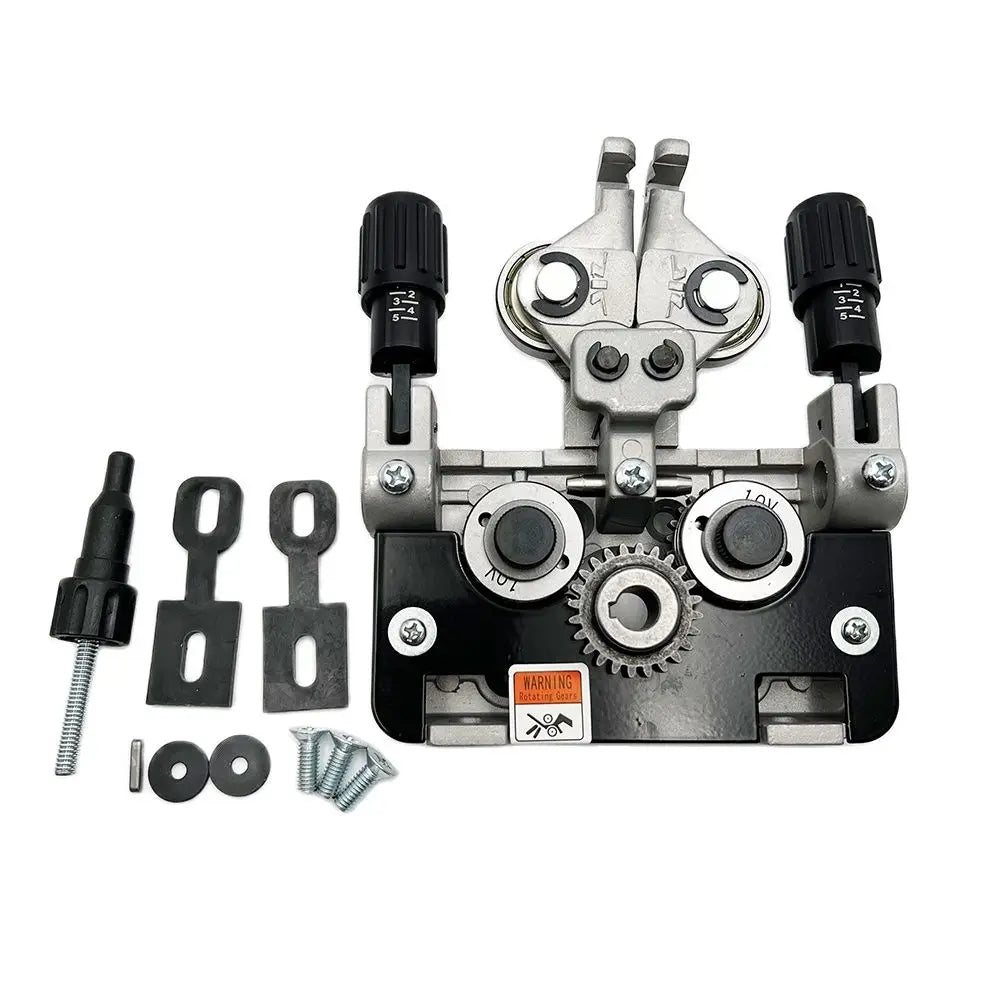

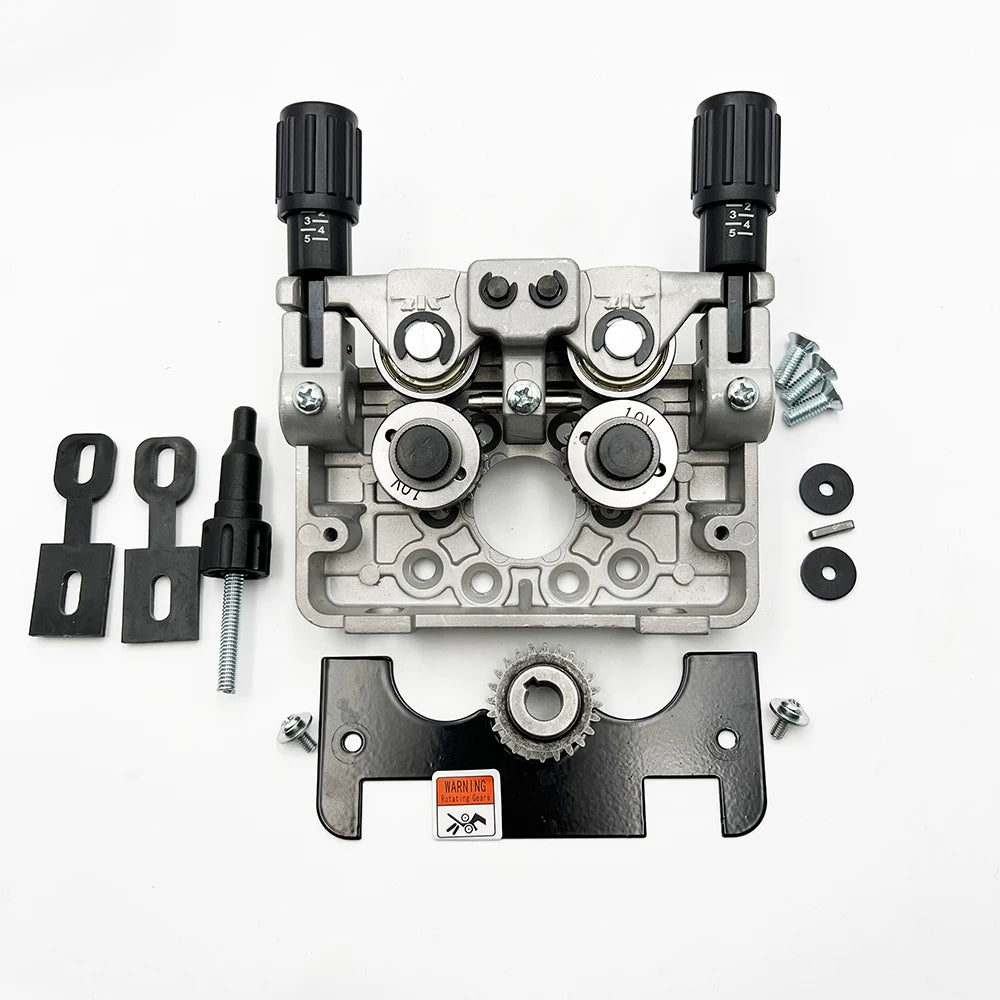

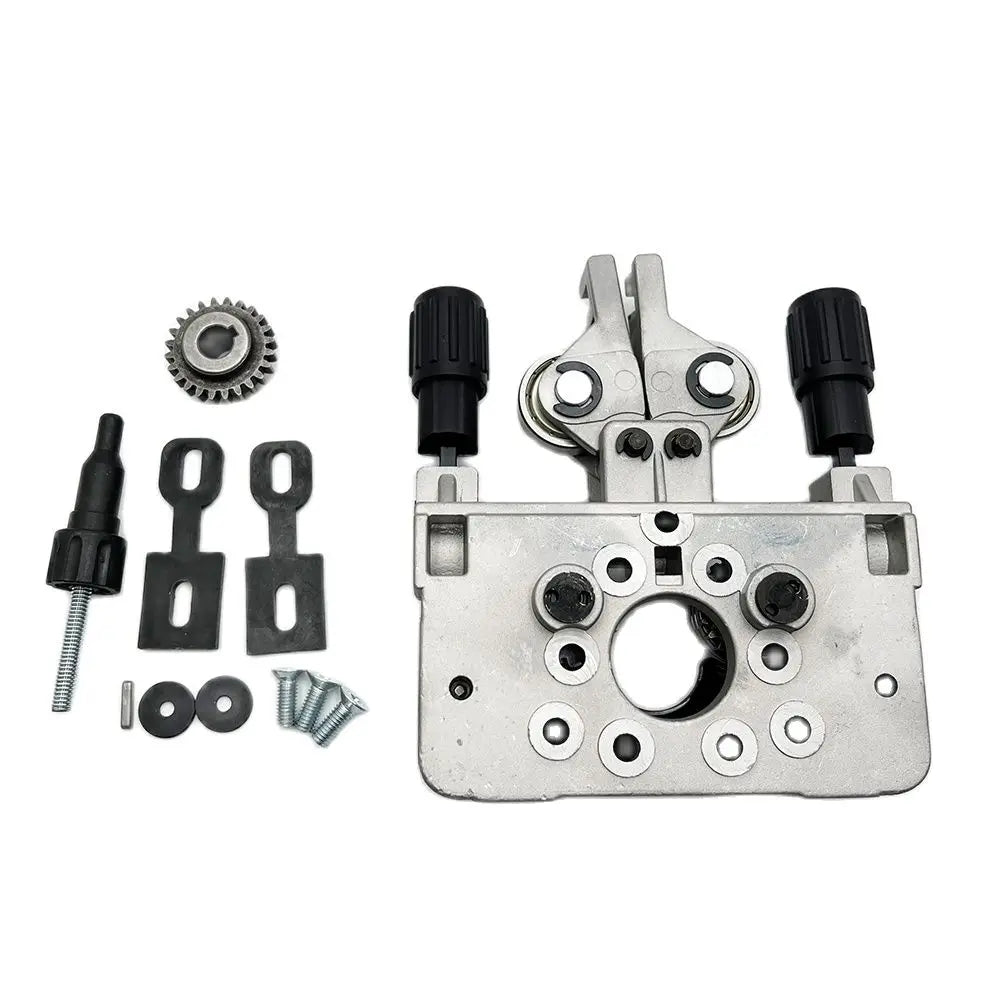

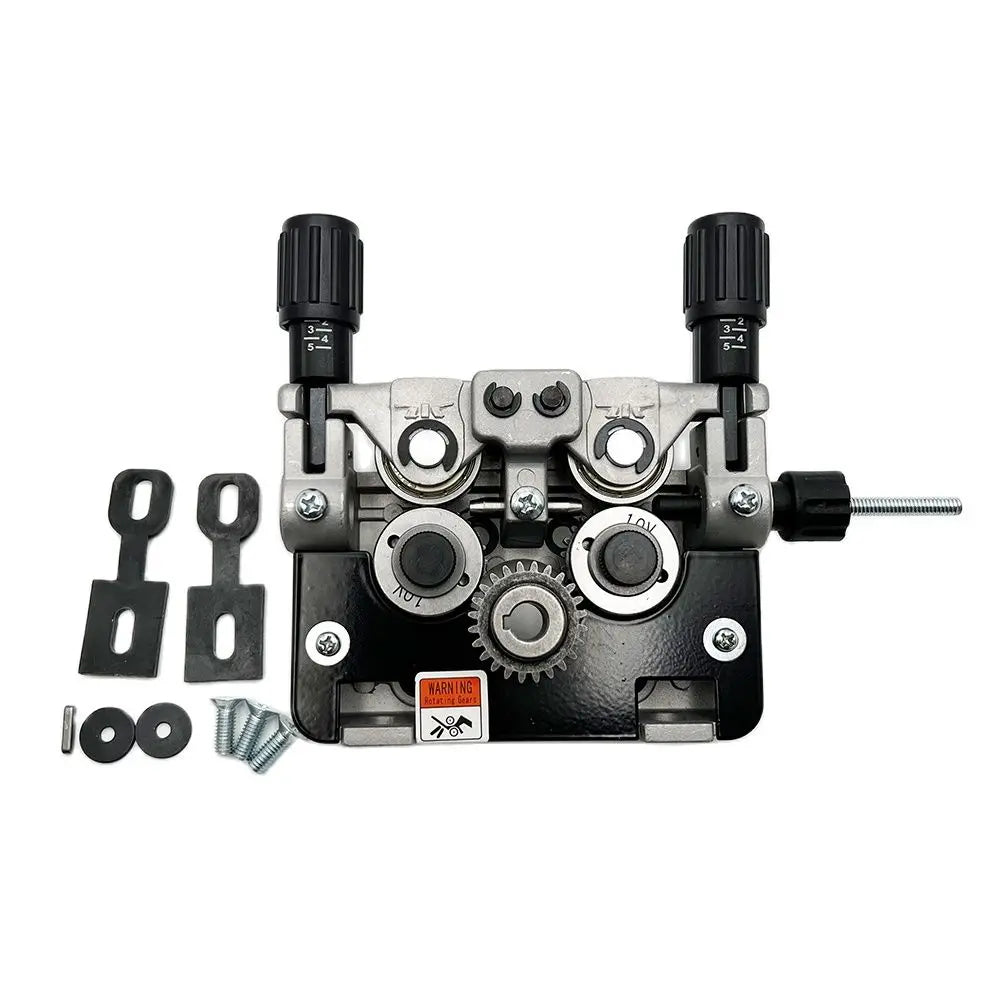

JINSLU 76ZY-02AV MIG Wire Feeder Motor Frame & Gear Box Assembly
⚠️ Important Note: This listing is for the frame/gear box assembly only — the motor is NOT included. If you also need the DC24V 76ZY-02AV wire feeder motor, please contact us directly.
Overview
Upgrade or replace the drive mechanism in your MIG welding setup with the JINSLU ZK-76ZY02AV Frame Gear Box Assembly. Engineered for precise, consistent wire feeding, this robust mechanism delivers feed speeds of 2.0–24 m/min — suitable for a wide range of welding applications. Made in Mainland China to JINSLU's professional welding standards.
Key Specifications
- Model Number: 76ZY-02AV (ZK-76ZY02AV)
- Output Power: 80W
- Rated Current: 3.5A
- Wire Feeding Speed: 2.0–24 m/min
- Wire Feeder Roller Range: 0.8–1.6 mm

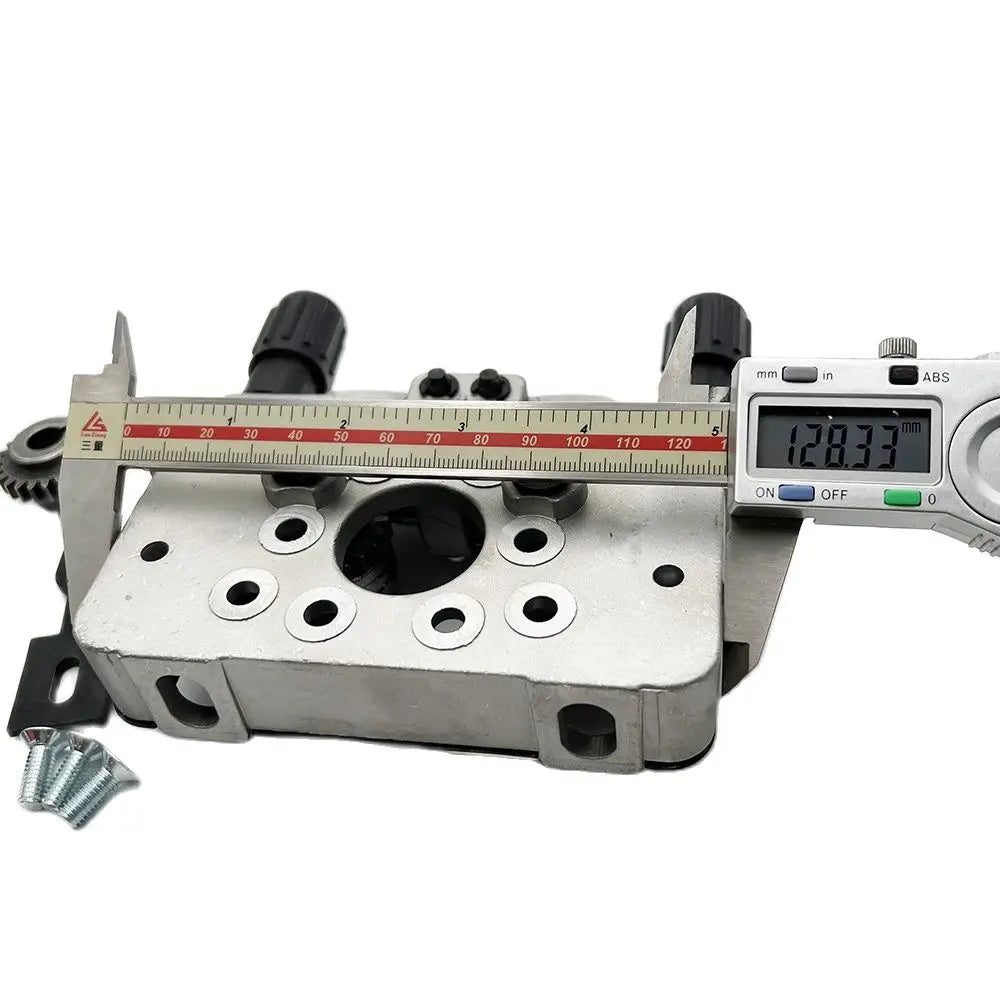

- Dimensions: 20 × 20 × 10 cm
- Weight: 1 kg
- Brand: JINSLU
Groove Options — Please Confirm Before Ordering
Default: V-groove — 1.0–1.2 mm
- V-groove — for solid wire
- U-groove (optional) — for aluminum wire
- Knurled groove (optional) — for flux-cored wire
If you require the U-groove or Knurled groove option, please message us before placing your order so we can fulfil the correct specification.
Why Choose the JINSLU 76ZY-02AV Frame Assembly?
- ✅ Precision-engineered gear box for smooth, consistent wire delivery
- ✅ Wide feed speed range (2.0–24 m/min) for versatile welding tasks
- ✅ Compatible with wire diameters from 0.8 mm to 1.6 mm
- ✅ Durable, compact construction — easy to install or retrofit
- ✅ Multiple groove options available for different wire materials
Compatibility & Use
This frame and gear box assembly is designed for use as part of a MIG wire feeding system. It is compatible with the 76ZY-02AV motor (sold separately). Ideal for hobbyist welders, workshops, and professional fabricators needing a reliable wire drive mechanism replacement or upgrade.
Looking for other workshop tools and accessories? Check out our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm and our U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set for more quality DIY and workshop tools.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does this JINSLU 76ZY-02AV listing include the motor?
A: No — this listing is for the frame and gear box assembly only. The DC24V 76ZY-02AV motor is sold separately. Please contact us if you need to purchase the motor as well.
Q: What groove types are available for the wire feeder roller?
A: The default groove is a V-groove (1.0–1.2 mm), which is suitable for solid welding wire. Optional U-groove (for aluminum wire) and Knurled groove (for flux-cored wire) configurations are also available — message us before ordering to request the correct groove type for your application.
Q: What wire diameter range does this MIG wire feeder frame support?
A: The JINSLU 76ZY-02AV gear box assembly supports wire diameters ranging from 0.8 mm to 1.6 mm, covering the most common MIG welding wire sizes.
Q: What is the wire feeding speed of this assembly?
A: When paired with the compatible motor, this gear box assembly delivers a wire feeding speed range of 2.0 to 24 metres per minute, providing excellent control for a variety of welding tasks.
