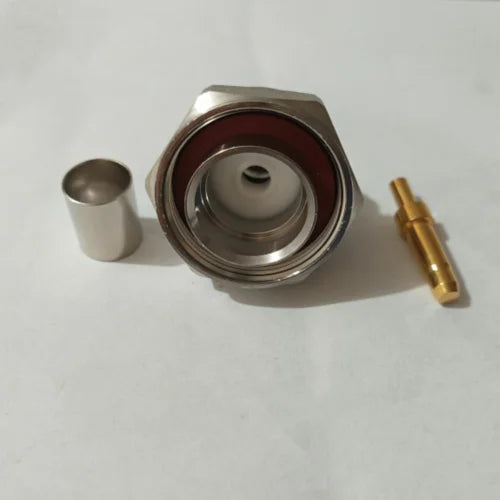

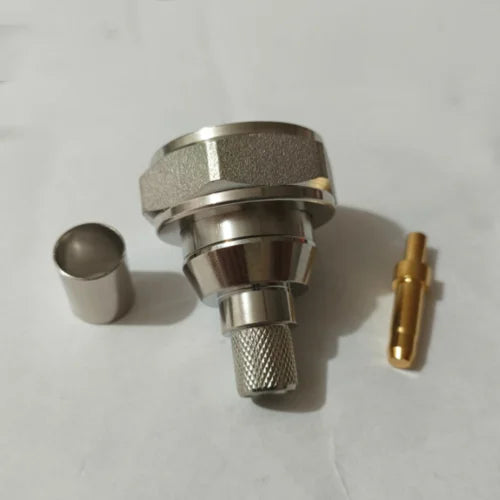

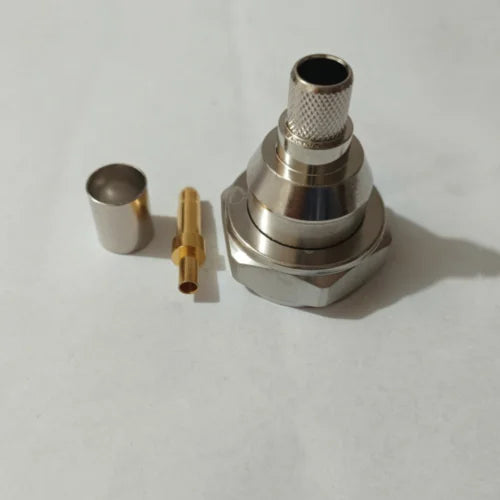

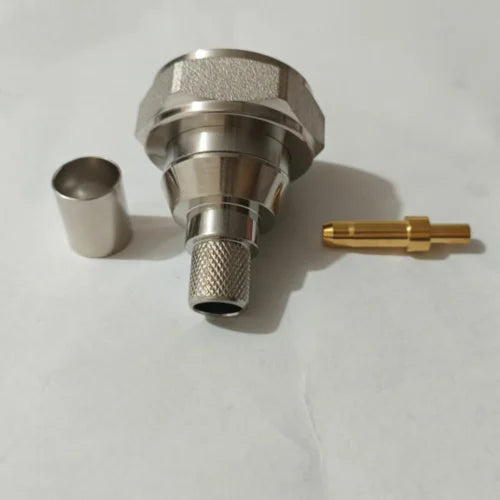

L29 DIN Male Clamp Coaxial RF Connector Adapter
Upgrade your RF signal chain with this precision-machined L29 DIN Male Clamp Connector, engineered for a secure, low-loss connection on a wide range of thick coaxial cables. Whether you're building antenna systems, radio installations, or high-frequency test setups, this connector delivers reliable signal integrity with a robust mechanical fit.
Compatible Cable Types
- RG393
- RG8
- RG165
- 7D-FB
- LMR400
- 50-7
Key Features
- L29 / DIN Male Interface – Industry-standard connector type widely used in broadcast, telecommunications, and RF lab environments
- Clamp-Style Termination – Provides a firm mechanical grip on the cable jacket for a stable, long-lasting connection
- Broad Cable Compatibility – Fits multiple popular 50-ohm coaxial cable types including LMR400, RG8, RG393, 7D-FB, and 50-7
- Low Signal Loss – Precision construction minimizes insertion loss and impedance mismatch for clean RF performance
- Durable Construction – Built with quality metals to withstand repeated use in professional and hobbyist RF applications
- 50-Ohm Impedance – Matched to standard RF system impedance for optimal power transfer
Ideal Applications
- Amateur (Ham) radio antenna installations
- Broadcast transmitter and receiver setups
- Base station antenna cabling
- RF test bench and laboratory use
- Cellular and wireless infrastructure projects
Specifications
- Connector Type: L29 DIN Male
- Termination: Clamp
- Impedance: 50 Ohm
- Compatible Cables: RG393, RG8, RG165, 7D-FB, LMR400, 50-7
- Water Resistance: Not water resistant
- Country of Origin: Made in China
Related Products You May Like
Looking for more workshop and crafting tools? Check out our Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm and our U & V Leather Groover Skiving Tool Kit – 4-Piece Stainless Set for precision DIY work. Need organized storage for your components? Our Airtight Transparent PET Storage Bottle | Beads & Crafts is perfect for keeping small parts sorted.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What cable types is this L29 DIN Male clamp connector compatible with?
A: This L29 DIN Male clamp connector is compatible with RG393, RG8, RG165, 7D-FB, LMR400, and 50-7 coaxial cables — all popular 50-ohm thick coaxial cable formats widely used in RF, amateur radio, and broadcast applications.
Q: Is this connector suitable for outdoor or weatherproof installations?
A: This connector is rated as not water resistant. For outdoor installations, it is recommended to use appropriate weatherproofing tape or an enclosure to protect the connection from moisture and environmental exposure.
Q: What is the impedance of this RF connector?
A: This L29 DIN Male connector is designed for 50-ohm impedance systems, which is the standard for most RF, antenna, and communications equipment. Always ensure your cable and system are also 50-ohm for the best signal performance.
Q: How does the clamp termination work?
A: The clamp-style termination mechanically secures the connector to the coaxial cable's outer jacket using a clamping ring or ferrule. This provides a strong, reliable grip that resists pull-out forces and maintains consistent electrical contact, making it a preferred method for thick coaxial cables like LMR400 and RG8.
