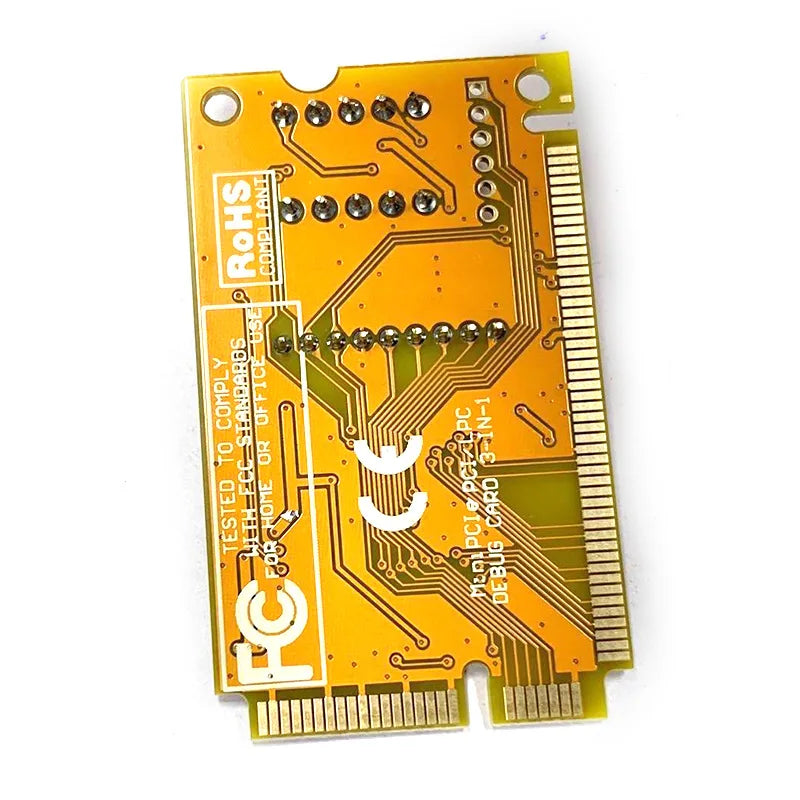

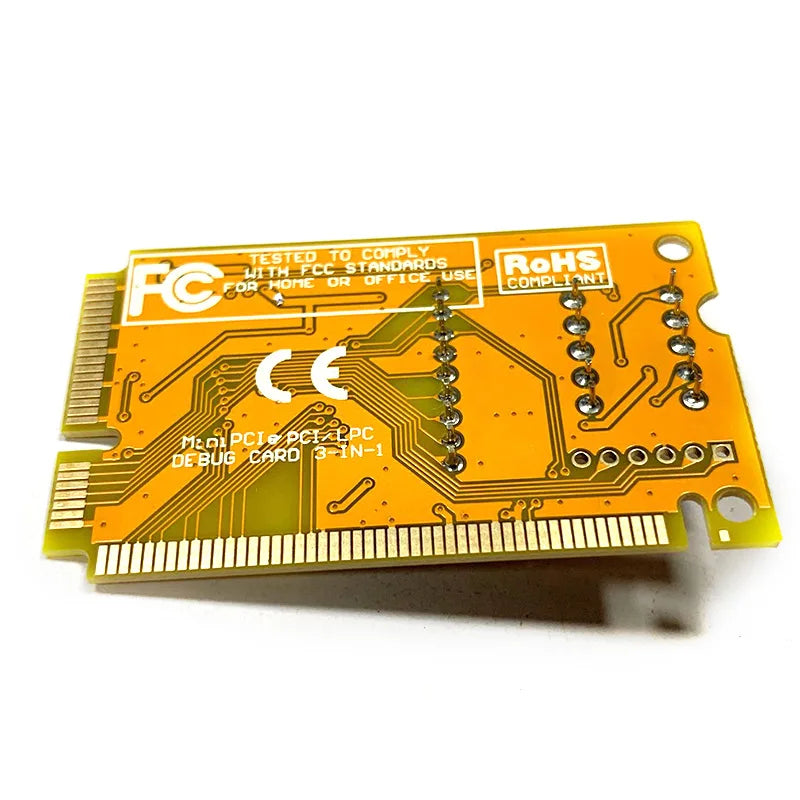

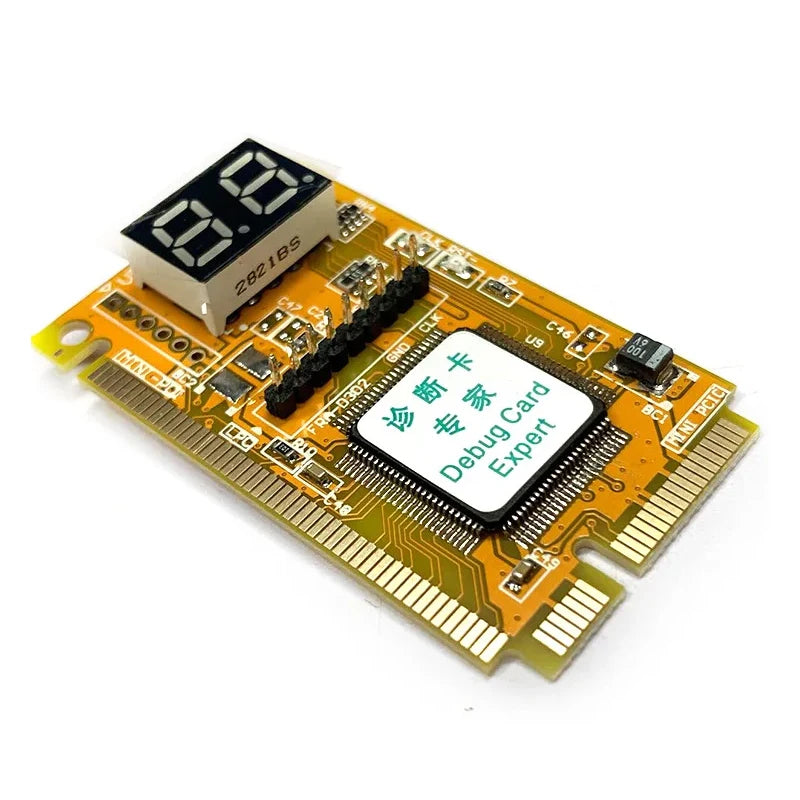

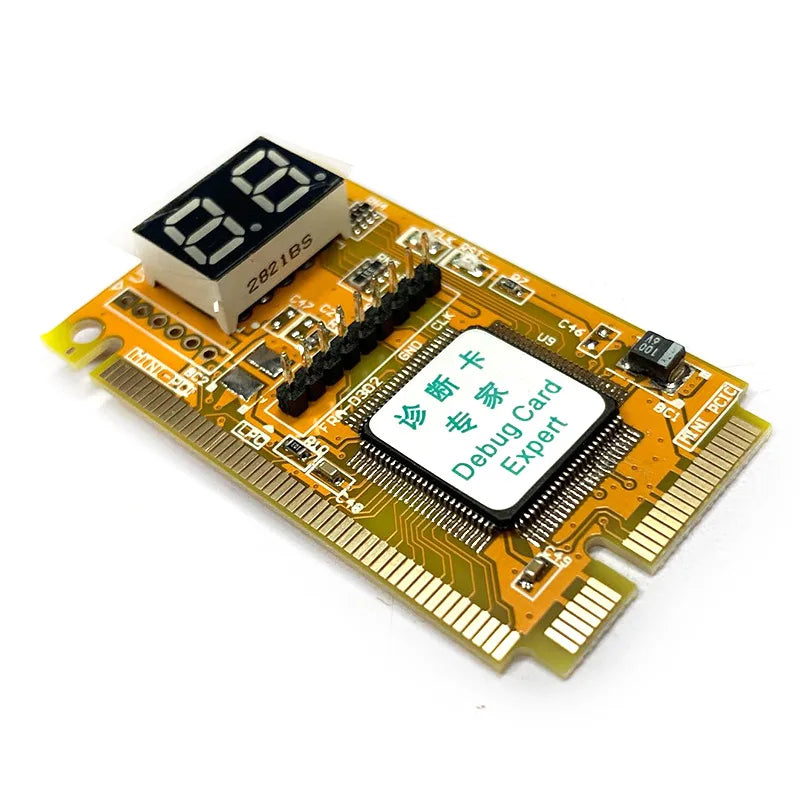

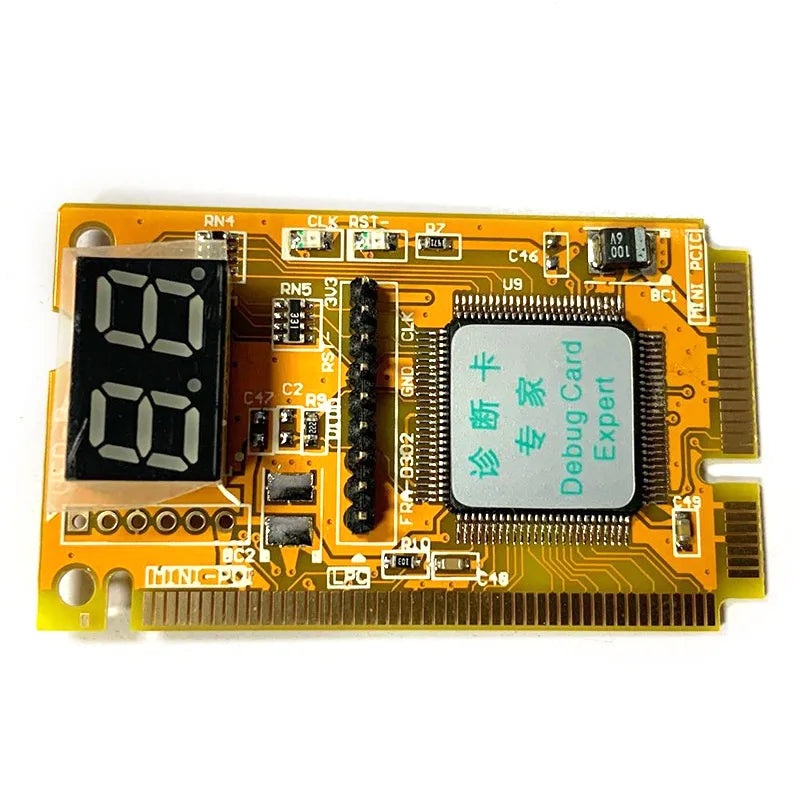

Mini PCI / PCI-E 2-Digit Laptop Motherboard Diagnostic Card
The OULLX Mini PCI/PCI-E Diagnostic Card is a professional-grade motherboard analysis tool designed specifically for laptop technicians and advanced users. With its 2-digit LED POST code display and multi-interface compatibility, this compact card makes laptop motherboard fault analysis fast, accurate, and efficient — without the need for a fully operational system.
⚠️ Important Compatibility Notice: This diagnostic card is compatible with most laptops, but not all laptop motherboards are supported. This is a hardware compatibility consideration, not a product defect. This card is designed exclusively for laptops — it does NOT work with desktop computers and cannot be used via a converter card with desktop systems.
Key Features

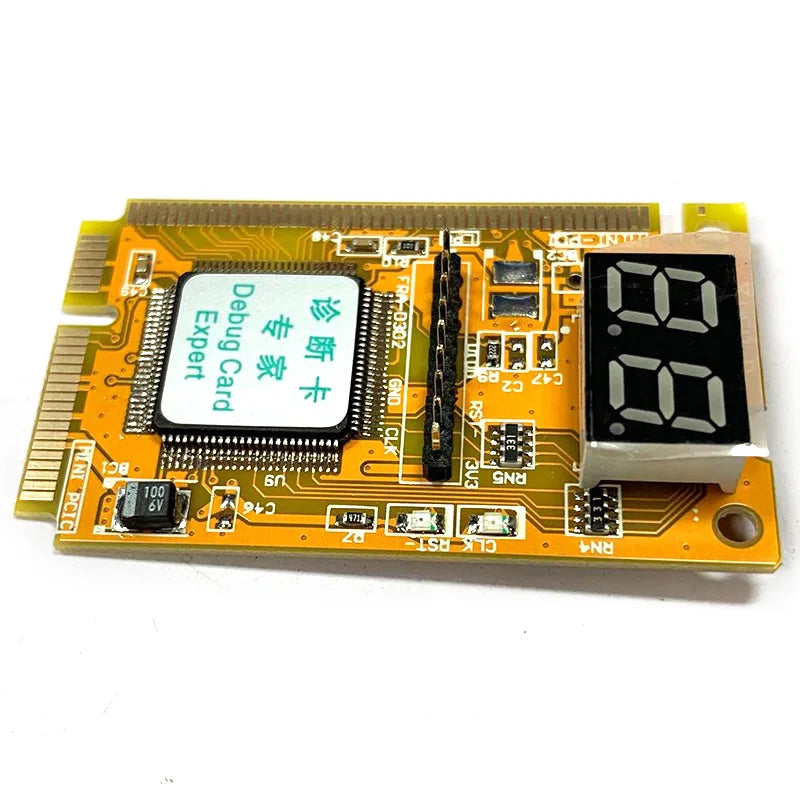

- 2-Digit LED POST Code Display — Instantly reads hexadecimal POST codes to help pinpoint motherboard faults and boot sequence errors
- Dual Onboard Capacitors — Ensures stable power delivery and a steady red LED indicator for reliable diagnostics

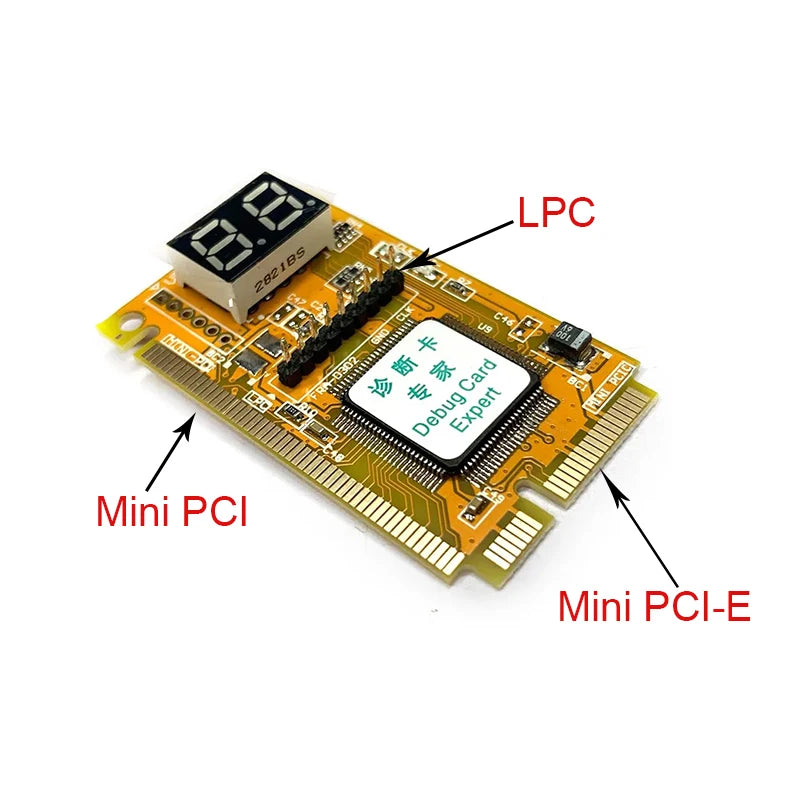

- Three Interface Support — Compatible with Mini PCI, Mini PCI Express (Mini PCI-E), and LPC Bus interfaces; only one interface needs to be connected at a time
- Mini PCI-E Pin Support — Works with PIN-8, PIN-10, PIN-12, PIN-14, PIN-16, PIN-17, and PIN-19 configurations
- LPC Bus Interface — Supports flying-wire LPC connections with clearly defined pinout (left to right: PIN1-LFRAME#, PIN2-LAD3, PIN3-LAD2, PIN4-LAD1, PIN5-LAD0, PIN6-GND, PIN7-LRESET#, PIN8-LCLK, PIN9-3.3V)
- IBM Laptop Compatibility — Detailed LPC pinout mappings provided for IBM X60 (U39 slot) and IBM T6/R6 (J26 insert pin) motherboards
- Pre-Tested Before Shipment — Each card is functionally verified prior to dispatch
- Compact & Internal Installation — Slots directly into the laptop's Mini PCI or Mini PCI-E port — no external setup required
Interface & Technical Specifications
| Brand | OULLX |
| Model | 2-Digit PCIE Diagnostic Card |
| Interfaces | Mini PCI, Mini PCI-E, LPC Bus |
| Display | 2-Digit LED (Hexadecimal POST Codes) |
| Installation | Internal (direct slot insertion) |
| Compatible With | Laptops / Notebooks only |
| Country of Origin | Made in China |
Supported Flying-Line Chips
For motherboards requiring flying-wire LPC connections, this card is compatible with the following chips: PC97551, PC87541, PC87591, H8S/2149, W83L950D, TCPA.
Who Is This For?
This card is ideal for laptop repair technicians, IT professionals, and electronics enthusiasts who need a reliable, portable tool for diagnosing motherboard boot failures and POST errors. A basic understanding of motherboard architecture and hands-on electronics experience is recommended for best results.
Related Products You May Like
- Airtight Transparent PET Storage Bottle | Beads & Crafts — Great for organizing small components and hardware
- Vintage Baroque Embossed Metal Tray – Jewelry & Decor Organizer — Keep your tools and accessories tidy on your workbench
- Leather Hole Punch Tool | DIY Stitching Punch 4/5/6mm — Another precision hand tool for detail-focused projects
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Can I use this Mini PCI/PCI-E diagnostic card with my desktop computer?
A: No. This diagnostic card is designed exclusively for laptops and notebooks with Mini PCI, Mini PCI-E, or LPC bus interfaces. It will not function with desktop computers, even when used with a converter or adapter card. If you need a diagnostic card for a desktop computer, you will need a separate PCI/PCI-E desktop-specific POST card.
Q: Do I need to connect all three interfaces (Mini PCI, Mini PCI-E, and LPC) at once?
A: No. You only need to connect one interface at a time — whichever port is available on your laptop motherboard. The other two interfaces can remain unconnected during testing.
Q: What do the 2-digit POST codes mean, and how do I read them?
A: The 2-digit LED display shows hexadecimal POST (Power-On Self-Test) codes output by the motherboard during the boot process. Each code corresponds to a specific stage or fault in the boot sequence. You can cross-reference these codes with your motherboard's BIOS POST code reference chart to identify where the boot process is failing and diagnose the underlying hardware issue.
Q: My laptop is not being detected by the diagnostic card. Is the card defective?
A: Not necessarily. While all cards are tested before shipment, not every laptop motherboard is compatible with this diagnostic card. If your laptop does not respond, try testing with a different laptop. Compatibility limitations are a known characteristic of this type of tool and are not indicative of a product defect.
