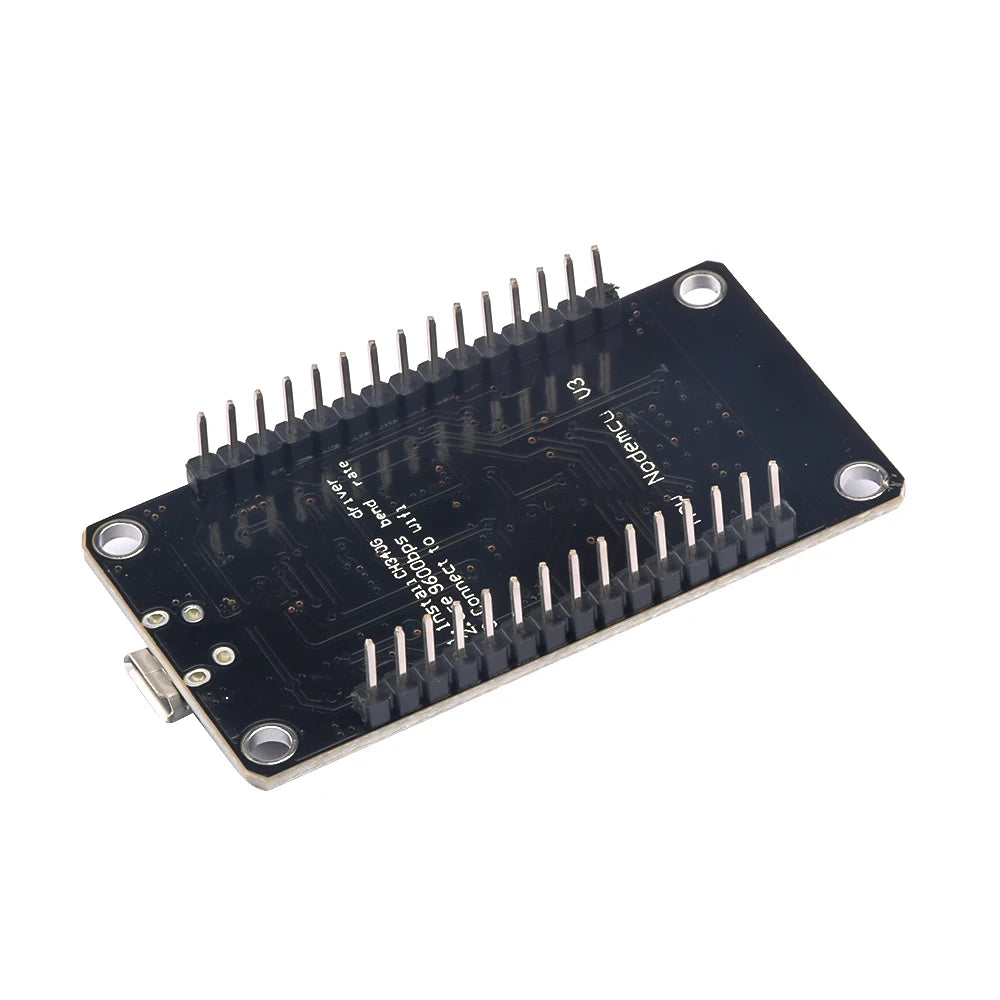

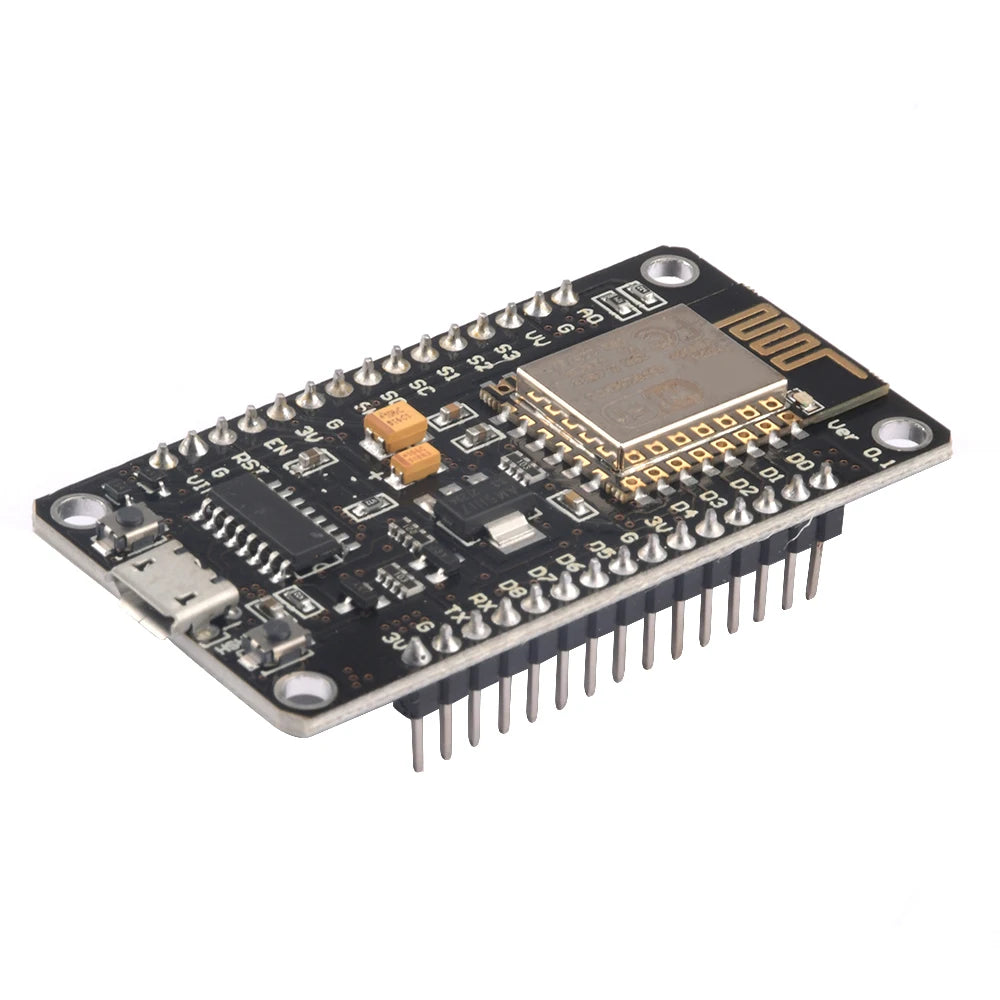

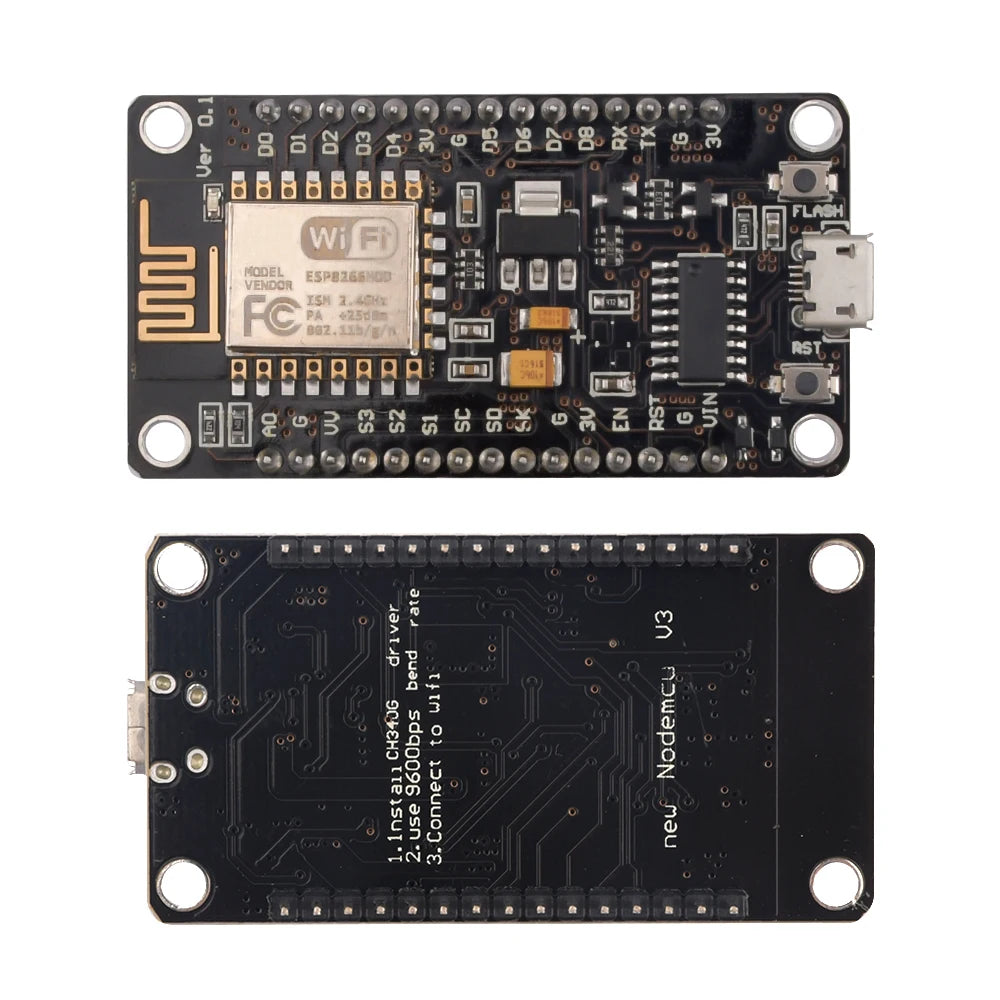

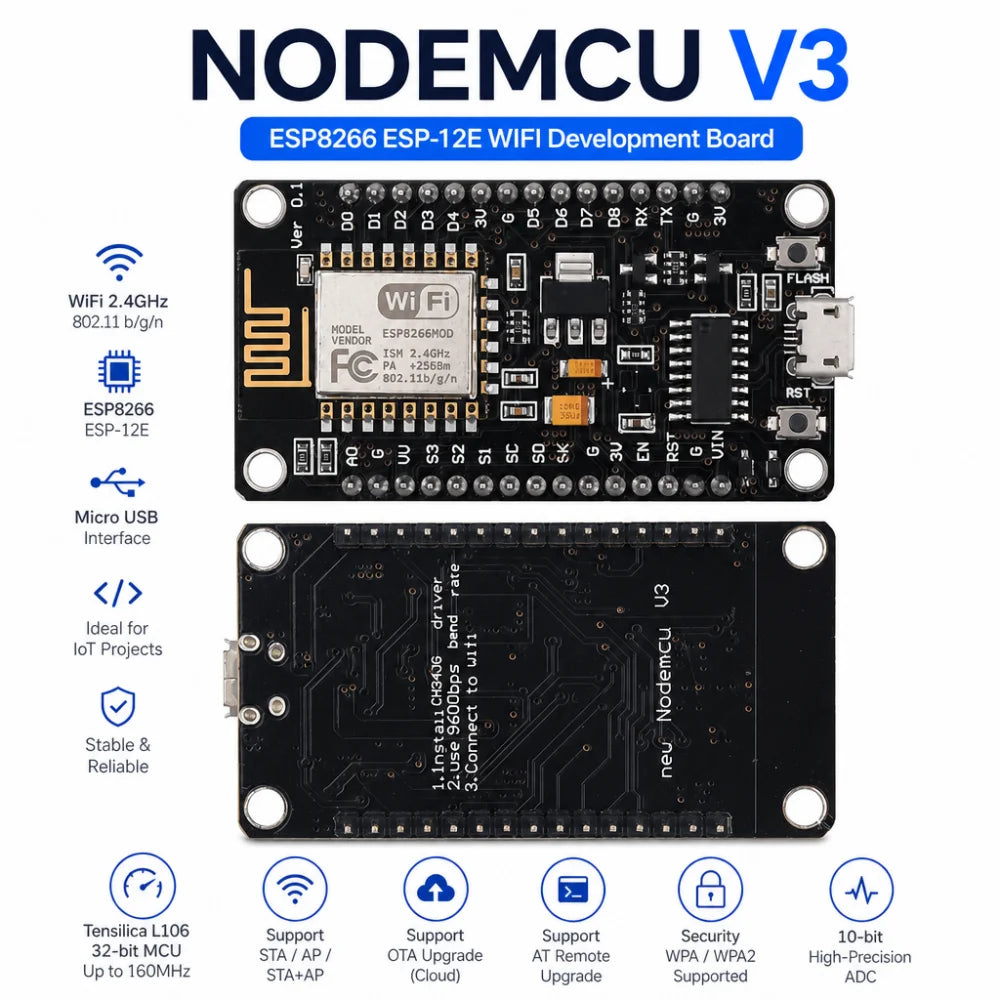

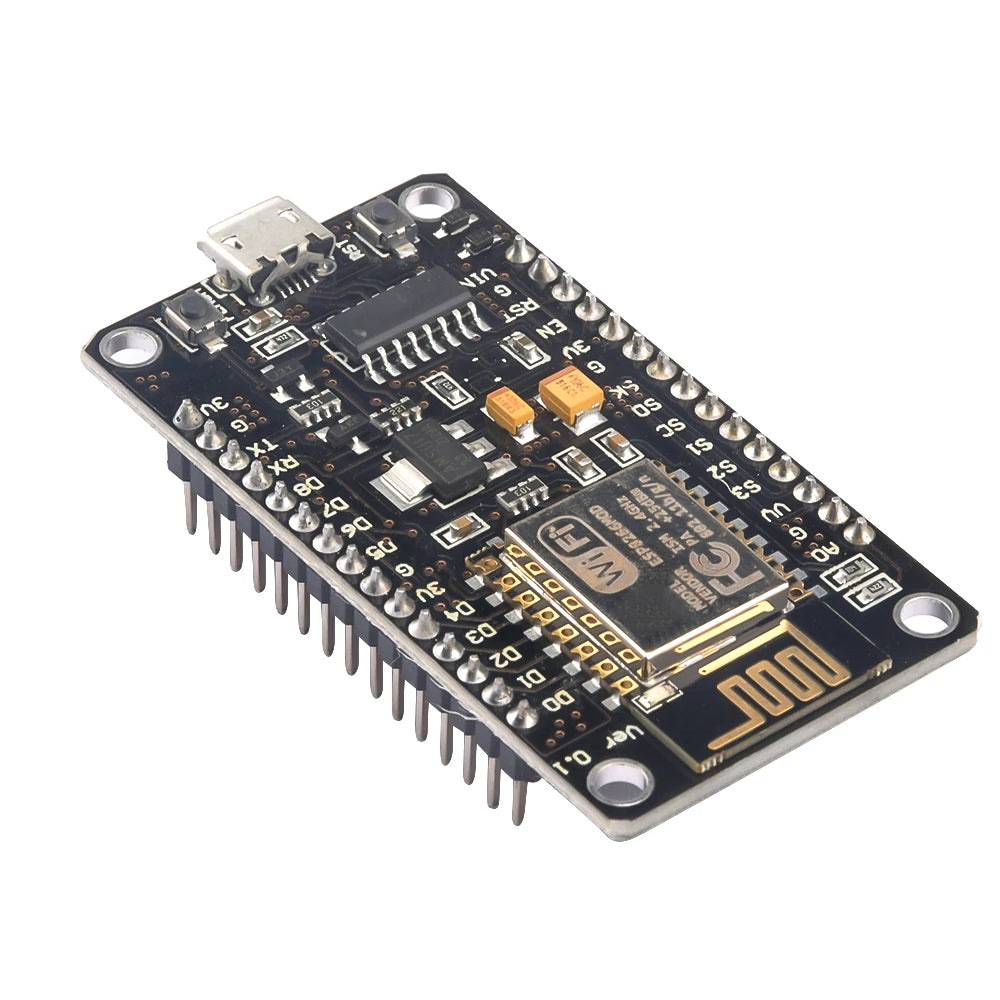

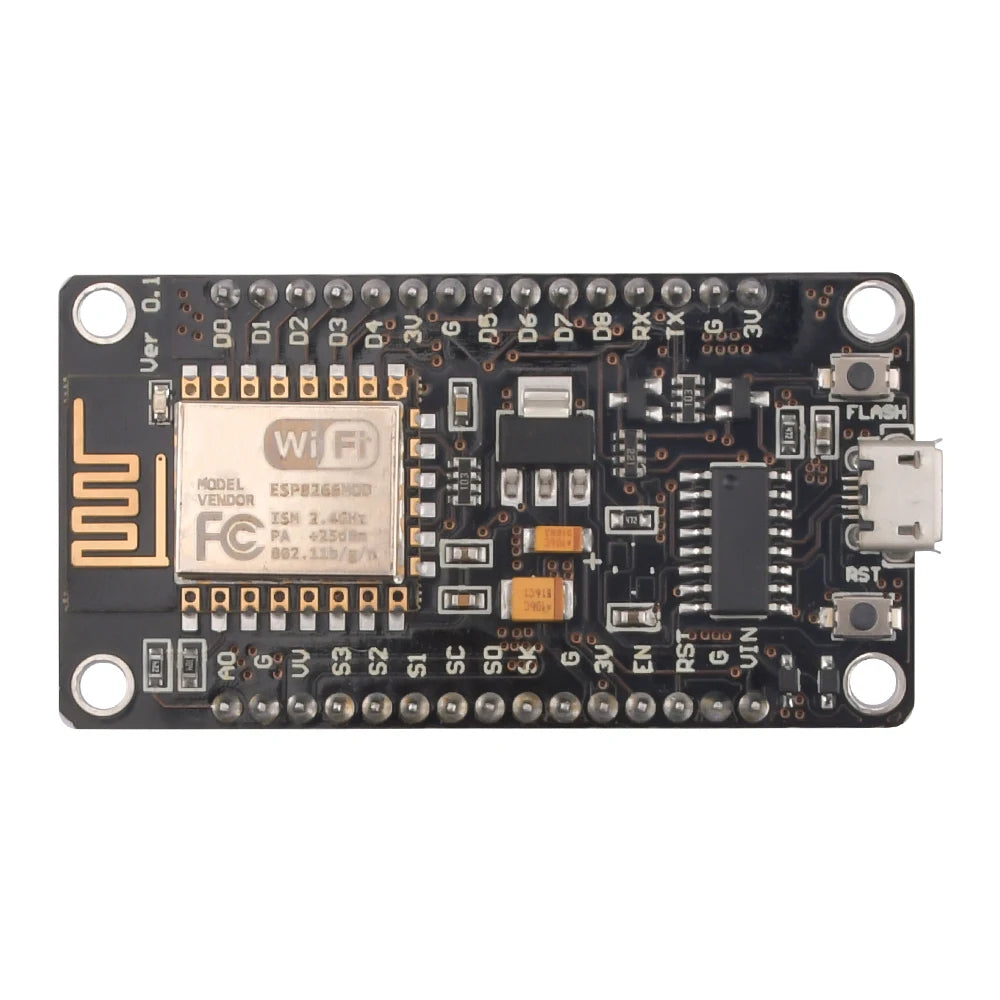

NodeMCU V3 ESP8266 ESP-12E Wi-Fi Development Board with CH340G Chip
Take your IoT and embedded projects to the next level with the NodeMCU V3 ESP8266 ESP-12E Wi-Fi Development Board. Featuring the trusted CH340G USB-to-serial chip, a convenient Micro USB port, and pre-soldered pin headers, this compact board is ready to use straight out of the box — no soldering required. Whether you're a beginner exploring microcontrollers or an experienced developer building connected devices, this board delivers reliable Wi-Fi connectivity and a smooth development experience.
Made in Mainland China.
Why Choose This Development Board?
- Instant Plug-and-Play: Pre-soldered pin headers mean you can jump right into prototyping without any extra assembly.
- Stable CH340G Serial Chip: Provides rock-solid USB communication for programming, debugging, and firmware flashing — simply connect via a standard Micro USB cable.
- Powerful ESP8266 Core: Integrated Tensilica L106 ultra-low-power 32-bit MCU running at 80 MHz or 160 MHz, with RTOS support for multitasking applications.
- Built-in 10-Bit ADC: High-precision analog input for reading sensors and analog signals.
- Full Wi-Fi Stack: 802.11 b/g/n at 2.4 GHz with WPA/WPA2 security, integrated TCP/IP stack, and STA/AP/STA+AP operating modes.
- Ultra-Low Power Consumption: Deep sleep hold current just 10 μA; standby power less than 1.0 mW (DTIM3) — ideal for battery-powered projects.
- Wide Temperature Range: Operates reliably from -40°C to 125°C for demanding environments.
- Arduino IDE Compatible: Works seamlessly with the Arduino IDE, making it beginner-friendly with access to thousands of open-source libraries and examples.
Key Technical Specifications
- Wi-Fi Standard: IEEE 802.11 b/g/n
- Frequency: 2.4 GHz
- Security: WPA / WPA2
- MCU: Tensilica L106 32-bit (80 / 160 MHz)
- ADC: Built-in 10-bit high-precision
- USB-to-Serial Chip: CH340G
- Connection: Micro USB
- Interfaces: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
- OTA: Supports AT remote upgrade and cloud-based OTA
- Smart Config: Android & iOS compatible
- Deep Sleep Current: 10 μA (hold); <5 μA (shutdown)
- Wake-Up Time: Connect and transmit within 2 ms
- Operating Temperature: -40°C to 125°C
- Package Type: TQFP
- Condition: New
Getting Started with Arduino IDE
- Download and install the Arduino IDE.
- Open Preferences and add the ESP8266 board manager URL:
http://arduino.esp8266.com/stable/package_esp8266com_index.json - Go to Boards Manager, search for ESP8266, and install the package.
- Select NodeMCU 1.0 (ESP-12E Module) as your target board.
- Choose an example sketch, compile, and upload via Micro USB.
- Open the Serial Monitor to verify Wi-Fi connection status — your board's IP address will appear once connected.
What's in the Box?
- 1 × NodeMCU V3 ESP8266 ESP-12E Wi-Fi Development Board (with CH340G, Micro USB, pre-soldered headers)
You Might Also Like
- Airtight Transparent PET Storage Bottle – Great for organizing components & small parts
- Ceramic Mini Sealed Storage Jar – Compact storage for electronic components
- Vintage Baroque Embossed Metal Tray – Jewelry & Parts Organizer for your workspace
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Does the NodeMCU V3 ESP8266 board work with the Arduino IDE?
A: Yes! The NodeMCU V3 ESP8266 ESP-12E development board is fully compatible with the Arduino IDE. Simply add the ESP8266 board manager URL in Arduino Preferences, install the ESP8266 package, select "NodeMCU 1.0 (ESP-12E Module)" as your board, and you're ready to upload sketches via the Micro USB cable.
Q: Why does this board use the CH340G chip instead of CP2102 or FTDI?
A: The CH340G USB-to-serial chip is widely regarded for its stable performance and broad driver support across Windows, macOS, and Linux. It offers highly convenient debugging, allows direct programming via a standard Micro USB cable, and is a cost-effective yet reliable choice for development boards.
Q: Do I need to solder the pin headers before using the board?
A: No — this NodeMCU V3 board comes with pre-soldered pin headers, so it's ready to plug into a breadboard or connect to jumper wires immediately. No soldering equipment or skills are required to get started.
Q: What Wi-Fi security modes does the ESP8266 ESP-12E support?
A: The ESP8266 module supports WPA and WPA2 security modes operating at 2.4 GHz (802.11 b/g/n). It also supports STA, AP, and STA+AP operating modes, as well as Smart Config for easy network provisioning from Android and iOS devices.
